30mm push button, Type K, control station, two push buttons and pilot light, 6A inductive at 120VAC, NEMA 4, 13

CONTROL STATION + OPERATORS

SQD9001KYK317 9001KYK317 785901846109
564.59 / EACH
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type K, control station, two push buttons and pilot light, 6A inductive at 120VAC, NEMA 4, 13-1
  • Enclosure Material: Die Cast Zinc Alloy Gray
  • Warranty Length: 18 mth

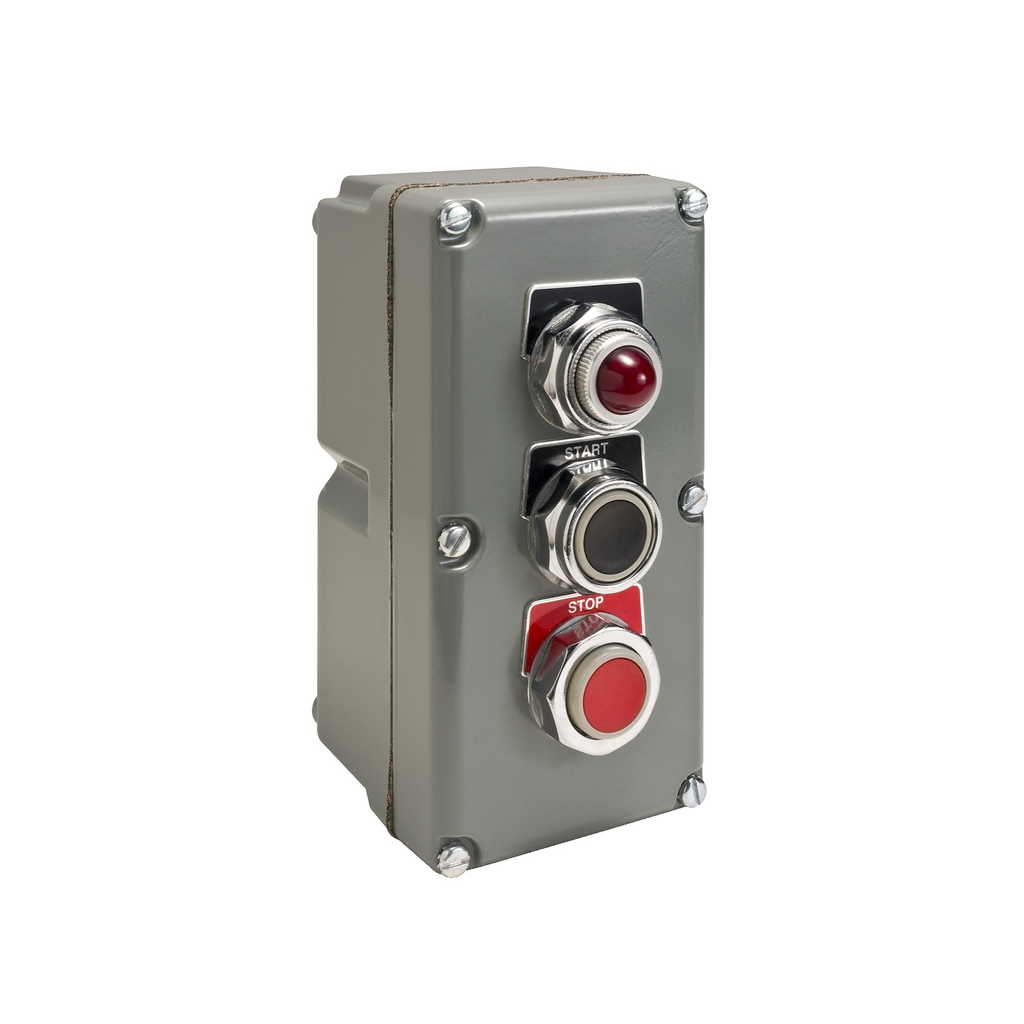

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has a gray die cast zinc enclosure (9001KY3) with three operators. Control station has a 110/120 VAC 50/60 HZ transformer type pilot light with a red lens (9001KP1R32) in the top hole. Control station has a black full guard momentary push button (9001KR1B) in the middle hole. The push button has a contact block with 1 normally open contact (9001KA2). The operator has a black legend plate that is marked START (9001KN201). Control station has a red no guard momentary push button (9001KR3R) in the bottom hole. The push button has a contact block with 1 normally closed contact (9001KA3). The operator has a red legend plate that is marked STOP (9001KN202). The enclosure has one 0.75 inch conduit opening with 14 NPT thread. Enclosure is 5.75 inches tall, 3.62 inches wide and 4.74 inches deep. This enclosure is rated for NEMA 1, 3, 4, 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Color Of Cover : grey
    • Housing Color : grey
  • Complementary Attributes
    • Ie Rated Operational Current Ac : 10 A
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Provided Equipment : contact block, legend plate
    • Carbon Footprint Of The Distribution Phase A4 : 0.2862600438, 0.3 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.8424167153
    • Carbon Footprint Of The Installation Phase A5 : 0.4520728905, 0.5 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 14 kg CO2 eq., 14.3012027737
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 2
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Contact Block Name : KA1
    • Control Station Composition : 3 push-buttons 1 NO + 1 NC START-STOP
    • Dc Control Voltage : 125-600 V
    • Device Short Name : KY
    • Enclosure Cubicle Description : surface mounting
    • Enclosure Material : die cast zinc alloy Gray
    • Housing Material : metal
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 17 kg CO2 eq.
    • Ac Control Voltage 50 Hz : 125-600 V
    • Ac Control Voltage 60 Hz : 125-600 V
    • Number Of Command Positions : 3
    • Number Of Contacts As Normally Closed Contact : 1
    • Number Of Contacts As Normally Open Contact : 1
    • Number Of Push Buttons : 3
    • Color Of Cover : grey
    • Housing Color : grey
    • Connections Terminals : screw-clamp terminals
    • Ie Rated Operational Current Ac : 10 A
    • Emergency Power Off Epo : no
    • Warranty In Months : 18
    • Pep Code : ENVPEP2503027EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-12-07
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments
    • Functional-unit Quantity : 1
    • Functional-unit Unit : Unit
    • Reference Lifetime, In Y : 10
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; MX
    • Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Recyclability Potential, In % : 15
    • Offer Owner Code : 190786
    • Pn : 1
  • Environment Attributes Main
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 16.8819524234
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP66
    • Nema Degree Of Protection : NEMA 4/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
    • Pep Verification Date : 2023-12-07
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Provided Equipment : contact block, legend plate
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony 9001K
  • ETIM
    • ETIM 8 : EC000225
    • ETIM 9 : EC000225
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France, Mexico, United States
