SQUARE D

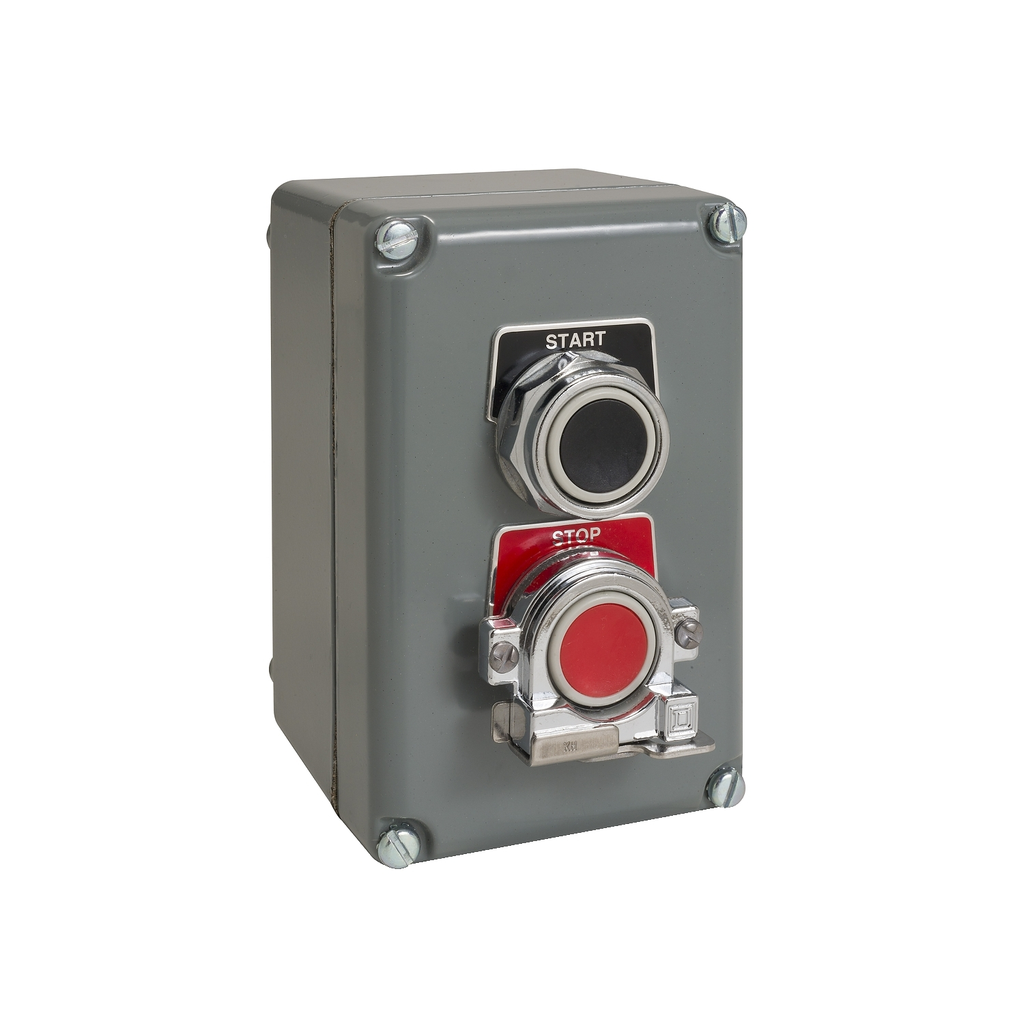

30mm push button, Type K, control station, two push buttons, 6A inductive at 120VAC, marked START and STOP, NEMA 4, 13

CONTROL STATION + OPERATORS

SQD9001KYK23 9001KYK23 785901738138
430.08 / EACH
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type K, control station, two push buttons, 6A inductive at 120VAC, marked START and STOP, NEMA 4, 13-1
  • Country of Origin: Mexico
  • Enclosure Material: Die Cast Zinc Alloy Gray
  • Warranty Length: 18 mth
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has a gray die cast zinc enclosure (9001KY2) with two operators. Control station has a black full guard momentary push button (9001KR1B) in the top hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a black legend plate that is marked START (9001KN201). Control station has a red no guard momentary push button (9001KR3R) in the bottom hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a red legend plate that is marked STOP (9001KN202). The STOP push button has a lock out (9001K4). The enclosure has one 0.75 inch conduit opening with 14 NPT thread. Enclosure is 5.75 inches tall, 3.62 inches wide and 4.16 inches deep. This enclosure is rated for NEMA 1, 3, 4, 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Product Description
  • Features
  • Specifications
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has a gray die cast zinc enclosure (9001KY2) with two operators. Control station has a black full guard momentary push button (9001KR1B) in the top hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a black legend plate that is marked START (9001KN201). Control station has a red no guard momentary push button (9001KR3R) in the bottom hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a red legend plate that is marked STOP (9001KN202). The STOP push button has a lock out (9001K4). The enclosure has one 0.75 inch conduit opening with 14 NPT thread. Enclosure is 5.75 inches tall, 3.62 inches wide and 4.16 inches deep. This enclosure is rated for NEMA 1, 3, 4, 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Nema Degree Of Protection : NEMA 3/4/13
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121014EN
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI121014EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 11.5579537226
    • Carbon Footprint Of The Distribution Phase [A4] : 0.2 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0.4 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 14 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 1.4890053285
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 13.6436653577
  • Complementary
    • Enclosure/Cubicle Description : surface mounting
    • Connections - Terminals : screw-clamp terminals
    • Control Station Composition : 2 push-buttons 2 NO + 2 NC START-STOP
    • Type Of Installation : indoor/outdoor
    • [Ie] Rated Operational Current Ac : 10 A
    • Enclosure Material : die cast zinc alloy Gray
  • Specifications
    • Country of Origin : Mexico
    • Contact Block Name : KA1
    • Range Of Product : Harmony 9001K
    • Provided Equipment : contact block || legend plate
    • Product Or Component Type : complete control station
    • Device Short Name : KY
