30mm push button, Type K, control station, two push buttons, 6A inductive at 120VAC, marked UP and DOWN, NEMA 4, 13

CONTROL STATION + OPERATORS

SQD9001KYK25 9001KYK25 785901852216
394.36 / EACH
http://schema.org/OutOfStock
  • Enclosure Material: Die Cast Zinc Alloy Gray
  • Warranty Length: 18 mth

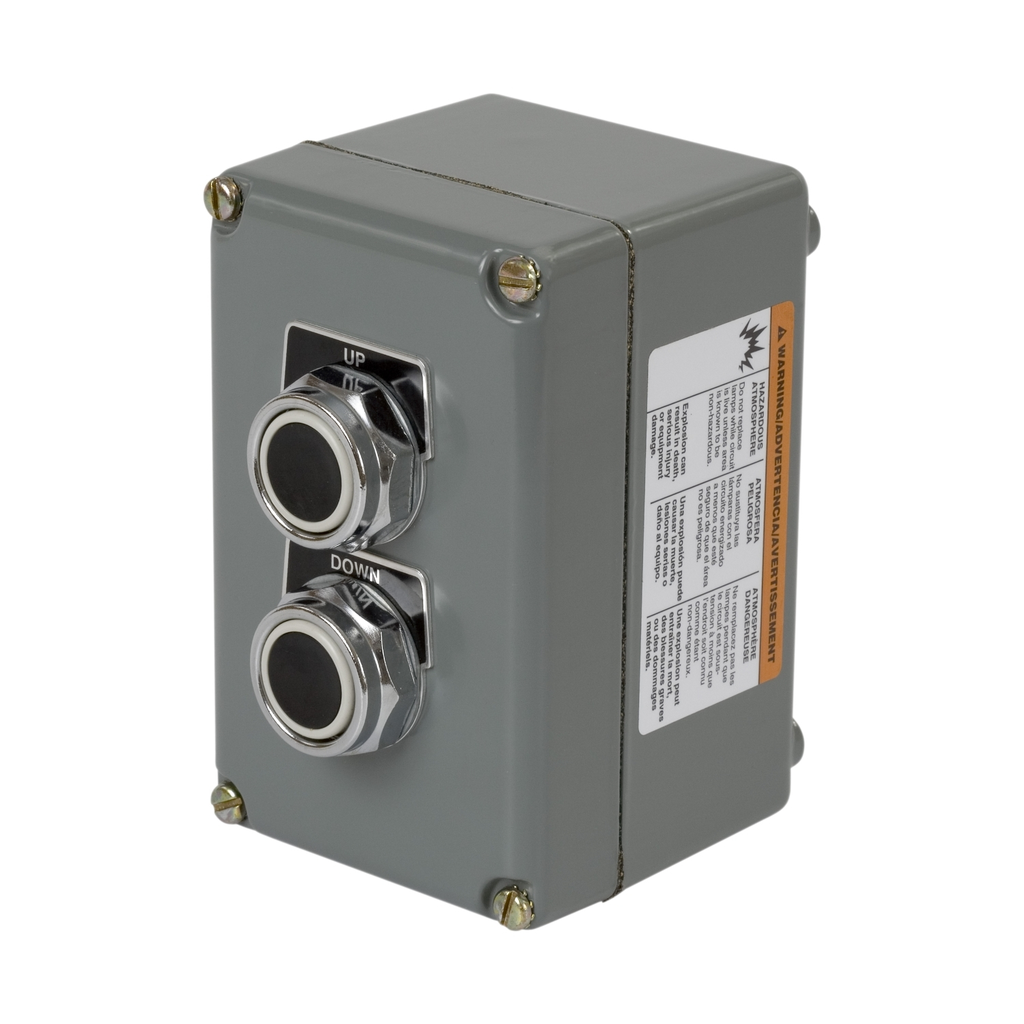

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has a gray die cast zinc enclosure (9001KY2) with two operators. Control station has a black full guard momentary push button (9001KR1B) in the top hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a black legend plate that is marked UP (9001KN211). Control station has a black full guard momentary push button (9001KR1B) in the bottom hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a black legend plate that is marked DOWN (9001KN210). The enclosure has one 0.75 inch conduit opening with 14 NPT thread. Enclosure is 5.75 inches tall, 3.62 inches wide and 4.16 inches deep. This enclosure is rated for NEMA 1, 3, 4, 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Features
    • High resistance to corrosion
    • Simplicity and speed installation
    • Long-term reliability
    • Complies with to IEC, UL, CSA and NOM standards, CE marking
  • Physical Attributes
    • Color Of Cover : grey
    • Housing Color : grey
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Customizable : 1, no
    • Provided Equipment : contact block, legend plate
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI121027EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Color Of Cover : grey
    • Control Station Composition : 1 push-button 1 NO + 1 NC UP-DOWN
    • DC Control Voltaage : 125-600 V
    • Device Short Name : KY
    • Enclosure Material : die cast zinc alloy Gray
    • Housing Color : grey
    • Housing Material : metal
    • Package Weight Lbs : 1.69 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Sustainable Packaging : Yes
    • Ie Rated Operational Current Ac2 : 10 A
    • Connections Terminals : screw-clamp terminals
    • Ac Control Voltage 50 Hz : 125-600 V
    • Ac Control Voltage 60 Hz : 125-600 V
    • Medium Desc : 30mm push button, Type K, control station, two push buttons, 6A inductive at 120VAC, marked UP and DOWN, NEMA 4, 13
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Emergency Power Off Epo3 : no
    • Pep Code : ENVPEP1210027EN
    • Contact Block Name : KA1
    • Enclosure Cubicle Description : surface mounting
    • Global Commercial Status : Commercialised
    • Connections Terminals3 : screw-clamp terminals
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI121027EN
    • Environmental Disclosure : ENVPEP1210027EN
    • IP Degree Of Protection : IP66
    • Nema Degree Of Protection : NEMA 4/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1210027EN
  • General Attributes
    • Provided Equipment : contact block, legend plate
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
