SQUARE D

30mm push button, Type K, control station, red momentary mushroom button, 6A inductive at 120VAC, STOP, NEMA 4, 13

CONTROL STATION + OPERATORS

SQD9001KYK14 9001KYK14 785901513384
312.15 / EACH
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type K, control station, red momentary mushroom button, 6A inductive at 120VAC, STOP, NEMA 4, 13-1
  • Country of Origin: Mexico
  • Enclosure Material: Die Cast Zinc Alloy Gray
  • Warranty Length: 18 mth

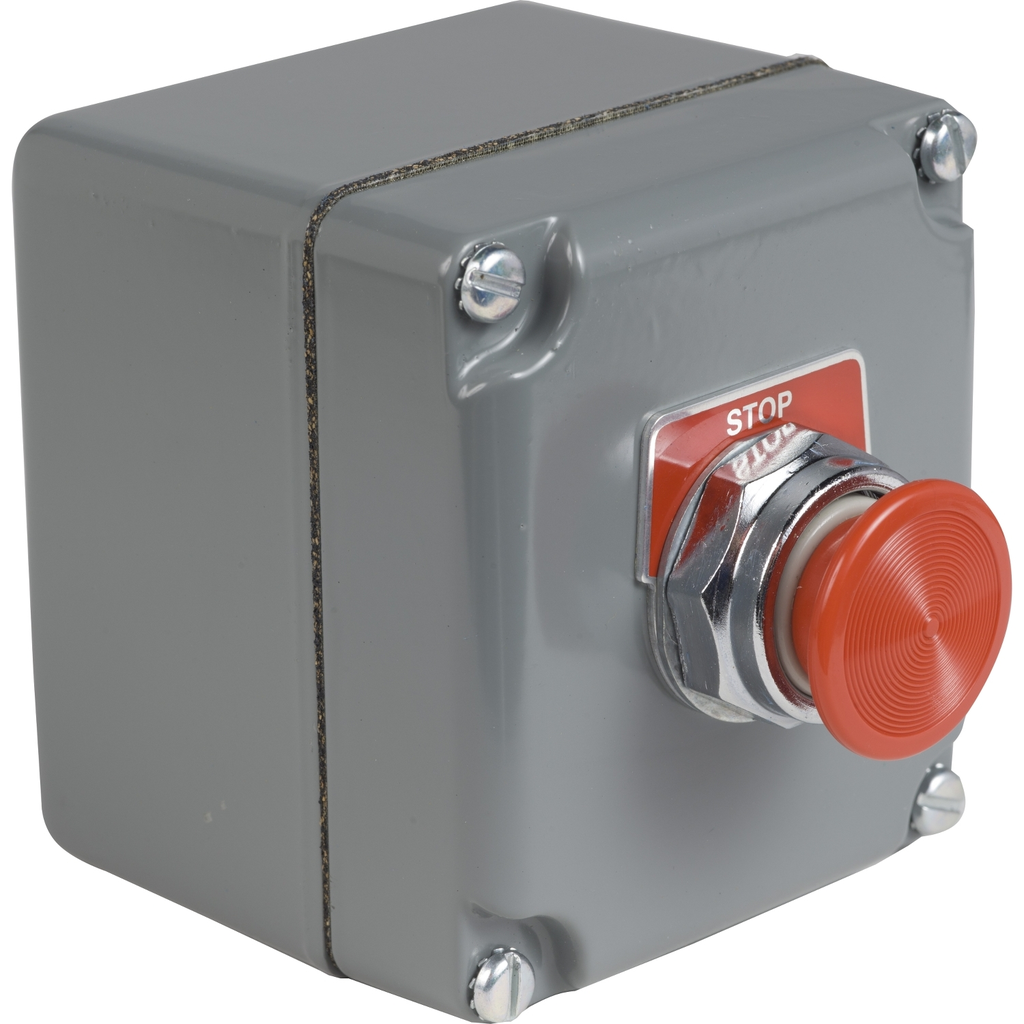

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has a gray die cast zinc enclosure (9001KY1) with one operator. Control station has a 1.375 inch red mushroom push button (9001KR4R) with a 1 normally open and 1 normally closed contact block (9001KA1). The operator has a legend plate that is marked STOP. The enclosure has one 0.75 inch conduit opening with 14 NPT thread. Enclosure is 4.00 inches tall, 3.62 inches wide and 4.87 inches deep. This enclosure is rated for NEMA 1, 3, 4, 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "This product can be surface mounted, suitable for indoor/outdoor installation." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Product Description
  • Features
  • Specifications
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has a gray die cast zinc enclosure (9001KY1) with one operator. Control station has a 1.375 inch red mushroom push button (9001KR4R) with a 1 normally open and 1 normally closed contact block (9001KA1). The operator has a legend plate that is marked STOP. The enclosure has one 0.75 inch conduit opening with 14 NPT thread. Enclosure is 4.00 inches tall, 3.62 inches wide and 4.87 inches deep. This enclosure is rated for NEMA 1, 3, 4, 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "This product can be surface mounted, suitable for indoor/outdoor installation." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Nema Degree Of Protection : NEMA 3/4/13
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121014EN
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI121014EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 9.3324256934
    • Carbon Footprint Of The Distribution Phase [A4] : 0.2 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0.3 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 11 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 1.2022916788
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 11.0165256058
  • Complementary
    • Enclosure/Cubicle Description : surface mounting
    • Connections - Terminals : screw-clamp terminals
    • Control Station Composition : 1 push-button 1 NO + 1 NC STOP
    • Type Of Installation : indoor/outdoor
    • [Ie] Rated Operational Current Ac : 10 A
    • Enclosure Material : die cast zinc alloy Gray
  • Specifications
    • Country of Origin : Mexico
    • Contact Block Name : KA1
    • Range Of Product : Harmony 9001K
    • Provided Equipment : contact block || legend plate
    • Product Or Component Type : complete control station
    • Device Short Name : 9001KY || KY
