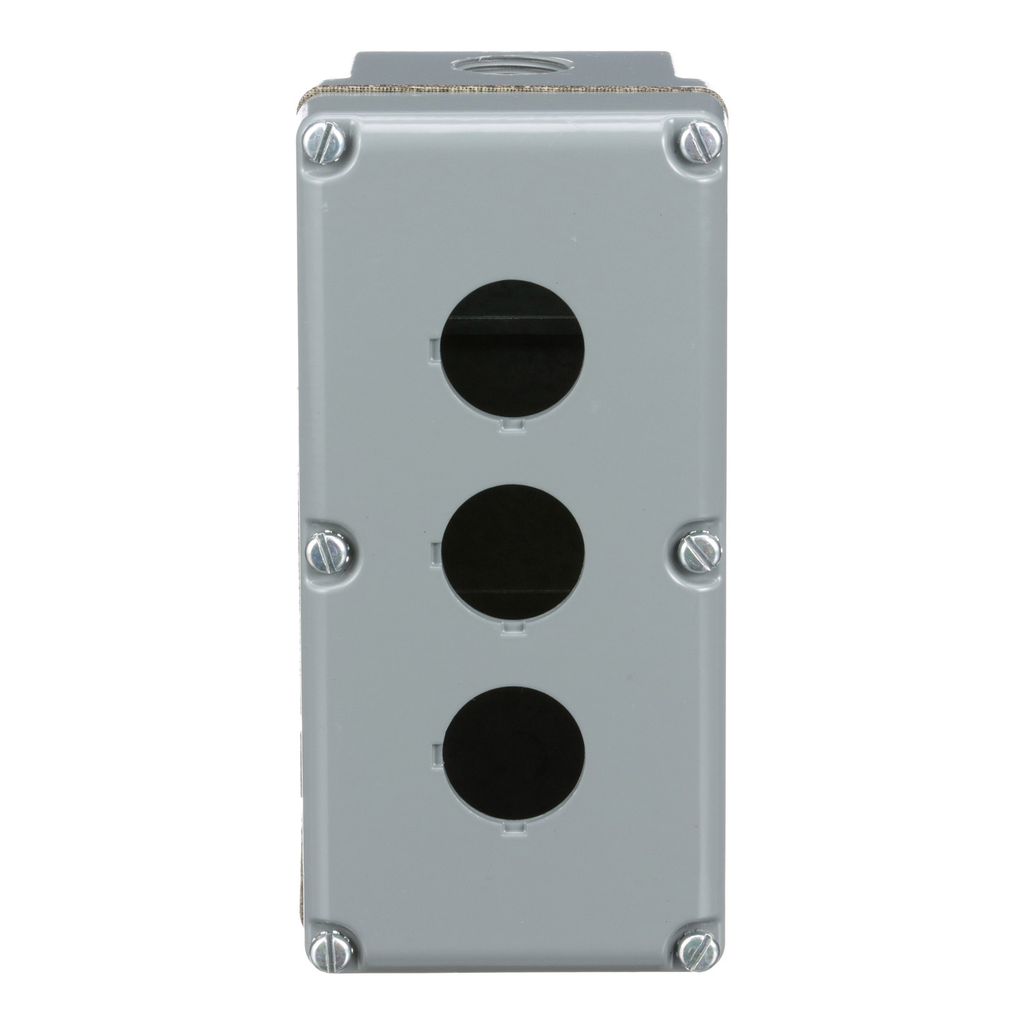

30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13

30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13

SQD9001KY3 9001KY3 785901874508
136.64 / EACH
http://schema.org/OutOfStock
  • Cable Entry: 3/4 in
  • Material: Aluminum
  • Warranty Length: 18 mth
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005259_3D-CAD&p_File_name=MCADID0005259_2D-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=9001KY3&p_File_name=9001KY3.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KY3&p_File_name=9001KY3.dxf
  • Important Information Attributes
    • Range Of Product : Harmony 9001SK, Harmony 9001K
    • Carbon Footprint Of The Distribution Phase A4 : 0.2197755766, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.4145117518
    • Carbon Footprint Of The Installation Phase A5 : 0.3470780584, 0.3 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 11 kg CO2 eq., 10.979719854
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Medium Desc : 30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Cable Entry : 1 entry tapped for 3/4'' cable gland
    • Compatibility Code : 9001K
    • Device Short Name : 9001K
    • Material : aluminium
    • Number Of Cut Out : 3 cut-outs
    • Overvoltage Category : II conforming to IEC 61140
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : for Ø 30 mm control and signalling units
    • Product Or Component Type : empty enclosure
    • Protective Treatment : TH
    • Returnability : Yes
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 13 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP2503027EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-12-07
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; MX
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
  • Environment Attributes Main
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 12.9610852409
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
    • Pep Verification Date : 2023-12-07
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Range Of Product : Harmony 9001SK, Harmony 9001K
    • Product Or Component Type : empty enclosure
  • ETIM
    • ETIM 8 : EC000200
    • ETIM 9 : EC000200
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
