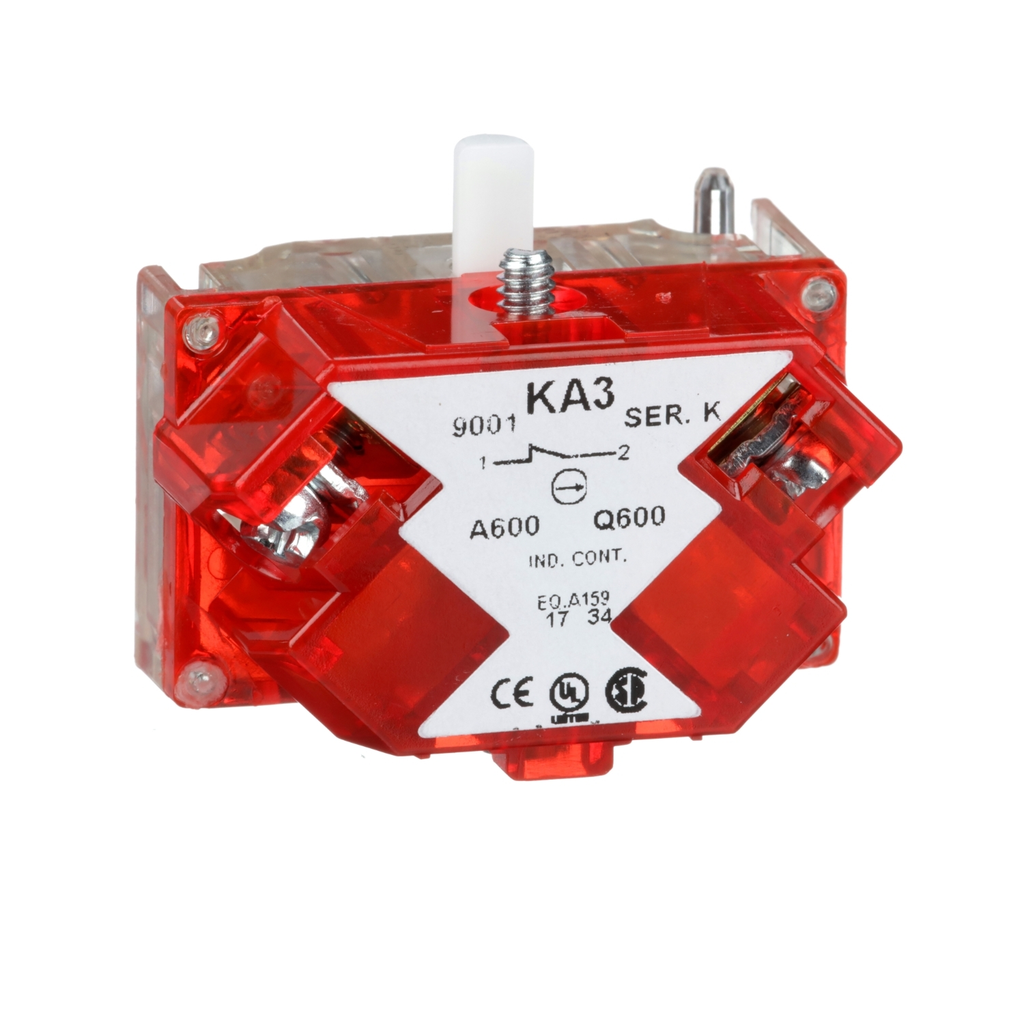

This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NC contact. T

• Connections Terminals
• screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
• Uimp Rated Impulse Withstand Voltage
• 2.5 kV IEC 60947-1
• Range Of Product
• Harmony 9001K
• Harmony 9001SK
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Carbon Footprint Of The Installation Phase A5
• 0.000169554
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.0649350002
• Standards
• UL 508
• JIS C 4520
• JIS C 852
• IEC 60947-5-4
• CSA C22.2 No 14
• IEC 60947-1
• IEC 60947-5-1
• UL 60947-5-1
• Ui Rated Insulation Voltage
• 250 V 3)IEC 60947-1
• Icm Rated Short Circuit Making Capacity
• 12 kA 600 V AC-15, 7200 VA
• 15 kA 480 V AC-15, 7200 VA
• 30 kA 240 V AC-15, 7200 VA
• 30 kA 240 V
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.2 kg CO2 eq.
• 0.1652006883
• Electrical Shock Protection Class
• class II conforming to IEC 61140
• Vibration Resistance
• 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Market Segmentation
• Commercial
• Industrial
• Positive Opening
• with IEC 60947-5-2
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Carbon Footprint Of The Distribution Phase A4
• 0.0030075991
• 0 kg CO2 eq.
• Tightening Torque
• 0.8-0.8 N.m IEC 60947-1
• Short Circuit Protection
• 10 A cartridge fuse IEC 60947-5-1
• Ie Rated Operational Current
• 3 A 240 V, AC-15, A600-Q600 NEMA
• 0.55 A 125 V, DC-13, A600-Q600 NEMA
• 0.55 A 125 V, DC-
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Shock Resistance
• 50 gn IEC 60068-2-27
• Rated Breaking Capacity
• 3 kA 240 V AC-15, 720 VA
• 6 kA 120 V AC-15, 720 VA
• 1.2 kA 600 V AC-15, 720 VA
• Product Certifications
• NEMA
• UL 508

• Complementary Attributes
• Us Rated Supply Voltage : 0...600 V
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• Manufacturing Carbon Footprint : 0.1652006883
• Distribution Carbon Footprint : 0.0030075991
• Installation Carbon Footprint : 0.000169554
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 0.0649350002
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : 9001K
• Contact Operation : positive opening
• Contacts Material : silver alloy contacts
• Contacts Type And Composition : 1 NC
• Device Short Name : 9001K
• Package Weight Lbs : 23.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contact block
• Protective Treatment : TC
• Returnability : Yes
• Shape Of Screw Head : cross slotted
• Sustainable Packaging : No
• Terminals Description Iso N 1 : (3-4)NO
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ith Conventional Free Air Thermal Current : 10 A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.2333128416
• Relationshiptype : Compatible relationship
• Accessories : 9001K95
• General Attributes
• Product Or Component Type : contact block
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=680764&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 0.2333128416
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Environmental Disclosure : ENVPEP2312033EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
