30mm push button, Type K, hermetically sealed logic reed contact block, 1NC, 0.025A inductive at 120VAC, pressure wire

30MM CONTACT BLOCK 1N/C LOGIC

SQD9001KA43 9001KA43 3389118042575
54.69 / EA
http://schema.org/OutOfStock

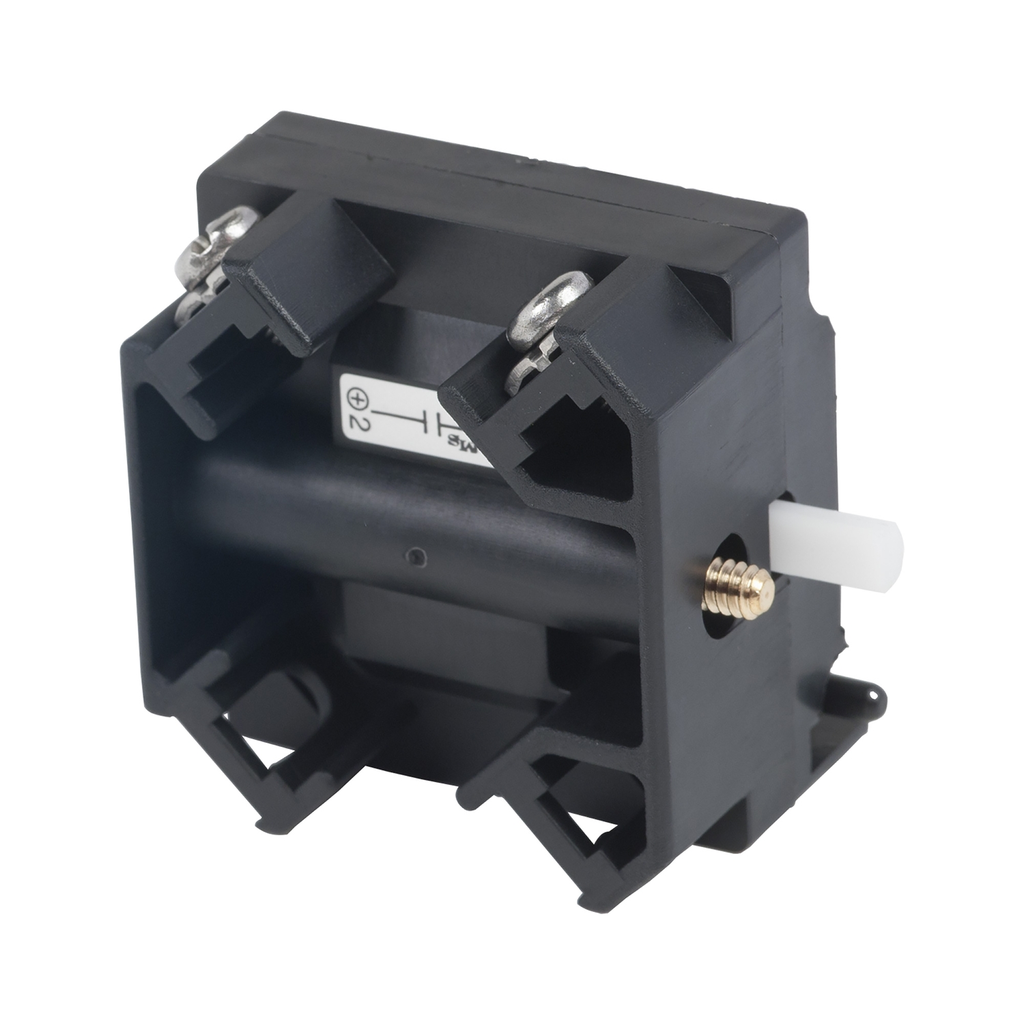

Mayer-DDS-30mm push button, Type K, hermetically sealed logic reed contact block, 1NC, 0.025A inductive at 120VAC, pressure wire-1
  • Warranty Length: 18 mth
The 9001K, 9001SK and 9001KX push button lines have a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Hermetically sealed logic reed contact block are for low energy level circuits. This hermetically sealed logic reed contact blocks will work on 9001K, 9001SK and 9001KX operators. There are some restrictions on how they can be mounted to ensure proper operation. Contact block has one normally closed contact. Contact block has pressure wire connectors. Terminals will accept one or two solid or stranded wire from 18AWG to 14 AWG. Terminals should be tightened to 5 to 8 lb-in. Contact block is UL Listed and CSA certified. "This product is compatible with Harmony 9001K pushbuttons and switches." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Product Description
  • Features
  • Specifications
The 9001K, 9001SK and 9001KX push button lines have a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Hermetically sealed logic reed contact block are for low energy level circuits. This hermetically sealed logic reed contact blocks will work on 9001K, 9001SK and 9001KX operators. There are some restrictions on how they can be mounted to ensure proper operation. Contact block has one normally closed contact. Contact block has pressure wire connectors. Terminals will accept one or two solid or stranded wire from 18AWG to 14 AWG. Terminals should be tightened to 5 to 8 lb-in. Contact block is UL Listed and CSA certified. "This product is compatible with Harmony 9001K pushbuttons and switches." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
  • Features
    • 10A cartridge fuse short-circuit protection
    • Hermetically sealed contacts
    • Improved security thanks to finger-safe contact blocks
    • Wide range of operating temperature from -25°C to 70°C
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL 508, NEMA
    • Standards : JIS C 852, IEC 60947-1, IEC 60947-5-4, UL 508, CSA C22.2 No 14, IEC 60947-5-1, JIS C 4520, UL 60947-5-1
  • Complementary Attributes
    • Rated Breaking Capacity : 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
  • Important Information Attributes
    • Contact Operation : logic reed, hermetically sealed
    • Range Of Product : Harmony 9001K, Harmony 9001SK
    • Icm Rated Short Circuit Making Capacity2 : 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.55 kA 125 V DC-13, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13
    • Ie Rated Operational Current2 : 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Connections Terminals : screw-clamp terminals, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
    • Icm Rated Short Circuit Making Capacity5 : 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.55 kA 125 V DC-13, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13
    • Ie Rated Operational Current5 : 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Compatibility Code : 9001K
    • Contacts Type And Composition : 1 NC
    • Contacts Usage : hermetically sealed contacts
    • Device Short Name : 9001K
    • Electrical Shock Protection Class : class II conforming to IEC 61140
    • Package Weight Lbs : 40.823 g
    • Positive Opening : without
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : contact block
    • Protective Treatment : TC
    • Returnability : No
    • Shape Of Screw Head : cross slotted
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Short Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Sustainable Packaging : No
    • Tightening Torque : 0.8-0.8 N.m IEC 60947-1
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ith Conventional Free Air Thermal Current2 : 10 A
    • Ui Rated Insulation Voltage2 : 250 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage2 : 2.5 kV IEC 60947-1
    • Us Rated Supply Voltage2 : 120 V
    • Medium Desc : 30mm push button, Type K, hermetically sealed logic reed contact block, 1NC, 0.025A inductive at 120VAC, pressure wire
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2312033EN
    • Global Commercial Status : Commercialised
    • Connections Terminals3 : screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
    • Ith Conventional Free Air Thermal Current5 : 10 A
    • Ui Rated Insulation Voltage5 : 250 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage5 : 2.5 kV IEC 60947-1
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Environmental Disclosure : ENVPEP2312033EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2312033EN
  • General Attributes
    • Range Of Product : Harmony 9001K, Harmony 9001SK
    • Product Or Component Type : contact block
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : ZZ
