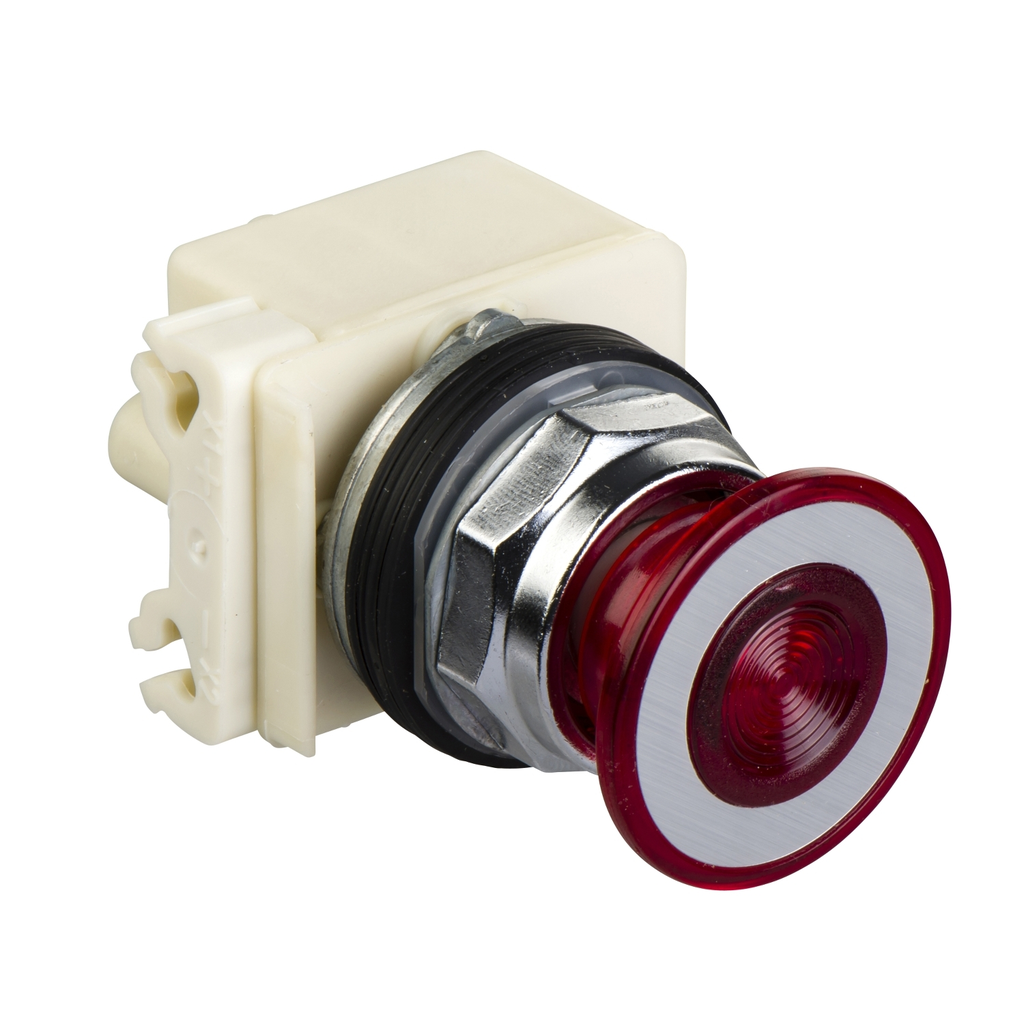

30mm push button, Type K, illuminated maintained push pull mushroom, 120VAC/VDC red LED, red mushroom, NEMA 4, 13

PUSHBUTTON OPERATOR 30MM TYPE

SQD9001KR9P38LRR 9001KR9P38LRR 785901589594
274.24 / EACH
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type K, illuminated maintained push pull mushroom, 120VAC/VDC red LED, red mushroom, NEMA 4, 13-1
  • Bezel Material: Metal
  • Light Source: Incandescent
  • Net Weight: 0.186 kg
  • Operating Position: Any Position
  • Warranty Length: 18 mth
  • Weight: 0.186 kg
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This illuminated push pull push button operator has a metal ring nut. This push pull operator has a 120 VAC/VDC red LED light module to provide the illumination. This operator has a red mushroom knob. Contact blocks with the desired contact arrangements must be added to this operator. Typically, one or two 9001KA1 contact blocks are used. When this contact block is used, this operator can be pulled to start and push to stop a control circuit. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Product Description
  • Features
  • Specifications
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This illuminated push pull push button operator has a metal ring nut. This push pull operator has a 120 VAC/VDC red LED light module to provide the illumination. This operator has a red mushroom knob. Contact blocks with the desired contact arrangements must be added to this operator. Typically, one or two 9001KA1 contact blocks are used. When this contact block is used, this operator can be pulled to start and push to stop a control circuit. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL 508 || NEMA
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : UL 508 || JIS C 852 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 4520 || IEC 60947-5-4
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II conforming to IEC 60536
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
    • Electrical Shock Protection Class : class II IEC 60536
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : ae0c4eb9-0bfb-40a4-851f-5c619fbe777d
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
  • Complementary
    • Operator Additional Information : screw-on plastic
    • Mounting Diameter : 30 mm
    • Operator Profile : mushroom Ø 41 mm
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : red
    • Net Weight : 0.186 kg
    • Size : 30 mm
    • Contacts Type And Composition : without contact block
    • Light Source : incandescent
    • Bezel Material : metal
    • Light Source Colour : red
    • Operator Position Information : 2 positions
    • Mechanical Durability : 5000000 cycles
    • Compatibility Code : 9001K
    • Type Of Operator : push-pull
    • Operating Position : any position
    • [Us] Rated Supply Voltage : 120 V AC/DC
    • Bulb Base : BA 9s
  • Specifications
    • Country of Origin : Mexico
    • Weight : 0.186 kg
    • Range Of Product : Harmony 9001K
    • Light Block Supply : direct
    • Type Of Operator : stay put
    • Product Or Component Type : head for illuminated push-button
    • Operator Profile : red mushroom Ø 41 mm, unmarked
    • Device Short Name : 9001K
