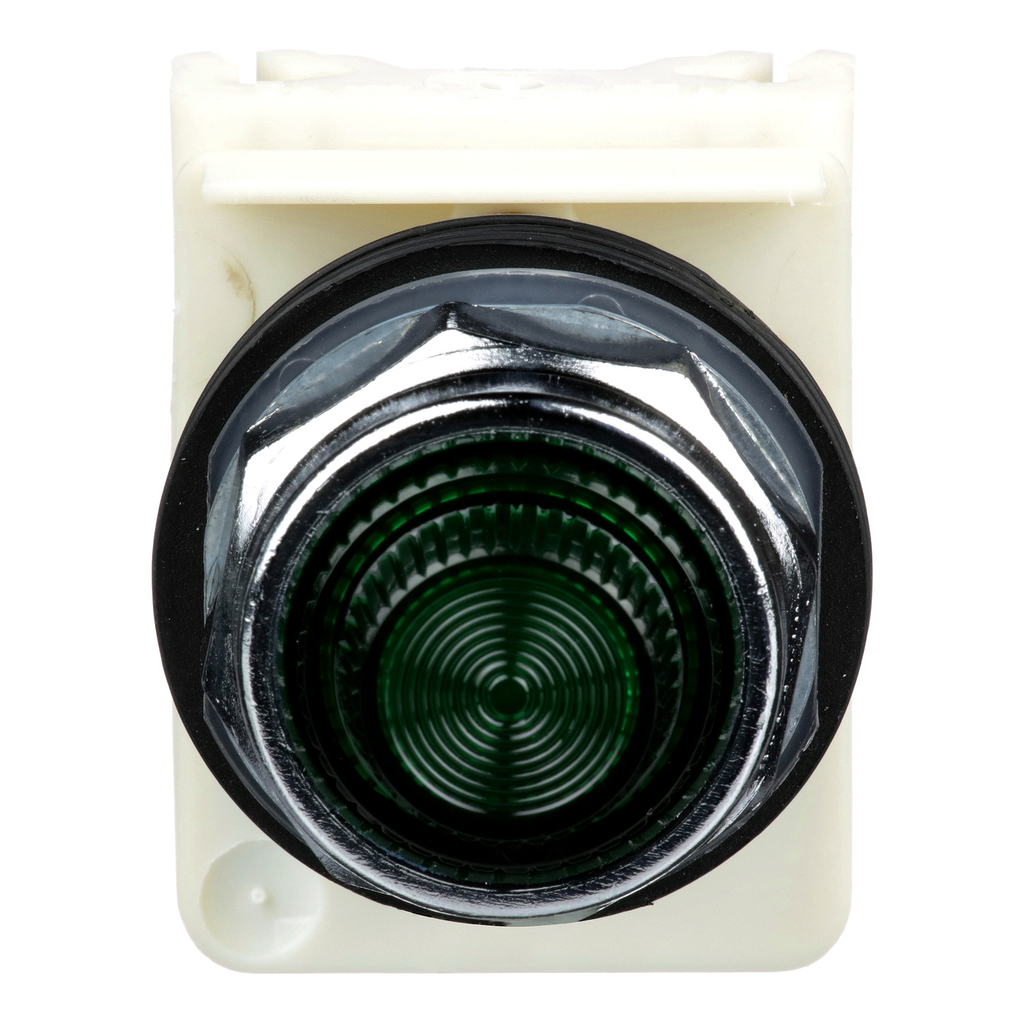

Pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, green, 30mm, 120VAC

PILOT LIGHT-W/GREEN FRESNL LEN

SQD9001KP1G31 9001KP1G31 785901094487
176.88 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Metal
  • Lens Material: Polycarbonate
  • Light Source: Incandescent Bulb, Incandescent
  • Operating Position: Any Position
  • Warranty Length: 18 mth
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
QTY
  • Features
  • Specifications
  • Features
    • Improved security thanks to finger-safe contact blocks and light modules
    • Robustness to withstand the harshest environments
    • Easy, secure mounting system
    • Automatic self-grounding operators without additional wiring
    • A large metal set of accessories to customize your product
    • Single screw Contact Block Fastening
    • Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product
    • High endurance LED lighting for less replacement and process downtimes
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : green
    • Size : 30 mm
  • Conformance Attributes
    • Product Certifications : CSA LR25490 class 3211 03, UL listed file E42259 CCN NKCR, CE
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Lens Type : fresnel, fresnel plastic
    • Light Block Supply : via transformer 120 V AC 50/60 Hz, via integral transformer 110 V AC 50/60 Hz, via integral transformer
    • Light Source : incandescent bulb, incandescent
    • Us Rated Supply Voltage2 : 110...120 V, 110...120 V AC
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Cap Operator Or Lens Color : green
    • Device Short Name : K
    • Lens Material : polycarbonate
    • Mounting Diameter : 30 mm
    • Operating Mode : normal
    • Operating Position : any position
    • Package Weight Lbs : 229.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Shape Of Screw Head : round
    • Supply Frequency : 50...60 Hz
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Connections Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Medium Desc : Pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, green, 30mm, 120VAC
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Global Commercial Status : Commercialised
    • Connections Terminals3 : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Us Rated Supply Voltage5 : 110...120 V AC
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • IP Degree Of Protection : IP65/IP66
    • Nema Degree Of Protection : NEMA 3R/6/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
