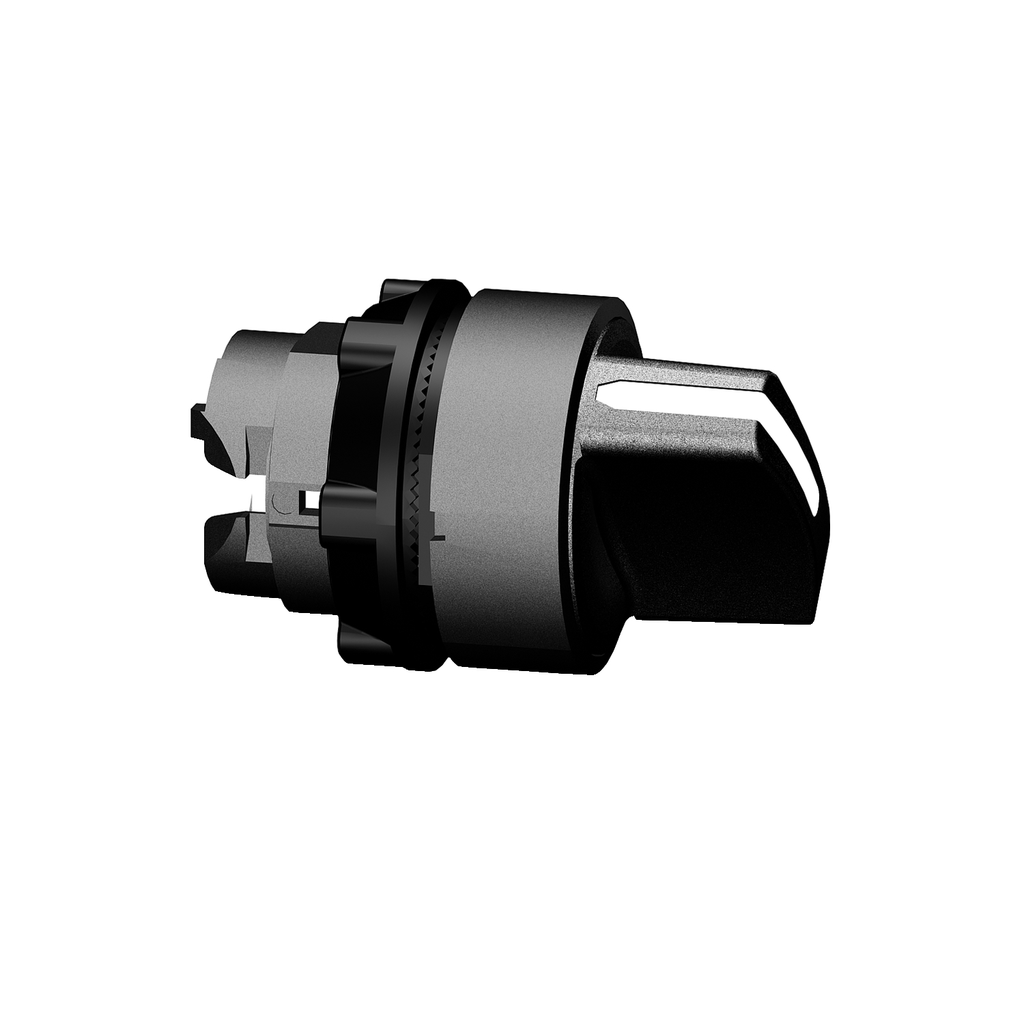

Head for selector switch, Harmony XB5, black handle, 22mm, 2 positions, stay put, set of 10

HEAD FOR SELECTOR SWITCH, HARM

SQDZB5AD2TQ ZB5AD2TQ 3389110884593
23.01 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for selector switch, Harmony XB5, black handle, 22mm, 2 positions, stay put, set of 10-1
  • Bezel Material: Plastic
  • Country of Origin: France
  • Head Type: Standard
  • Height: 29 mm
  • Warranty Length: 18 mth
  • Width: 29 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : DNV || CSA || BV || LROS (Lloyds register of shipping) || UL Listed
    • Ik Degree Of Protection : IK06 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-1 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP67 IEC 60529 || IP69 IEC 60529 || IP69K
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II conforming to IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2308008EN
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI2308008EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.2315249852
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.0597264558
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.3072756365
  • Complementary
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Cad Overall Height : 29 mm
    • Mechanical Durability : 1000000 cycles
    • Station Name : XALD 1...5 cut-outs
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 46 mm
  • Specifications
    • Country of Origin : France
    • Width : 29 mm
    • Height : 29 mm
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 22 mm
    • Type Of Operator : stay put
    • Product Or Component Type : head for selector switch
    • Shape Of Signaling Unit Head : round
    • Head Type : standard
    • Sale Per Indivisible Quantity : 10
    • Bezel Material : dark grey plastic
    • Operator Profile : black standard handle
    • Operator Position Information : 2 positions 90°
    • Device Short Name : ZB5
