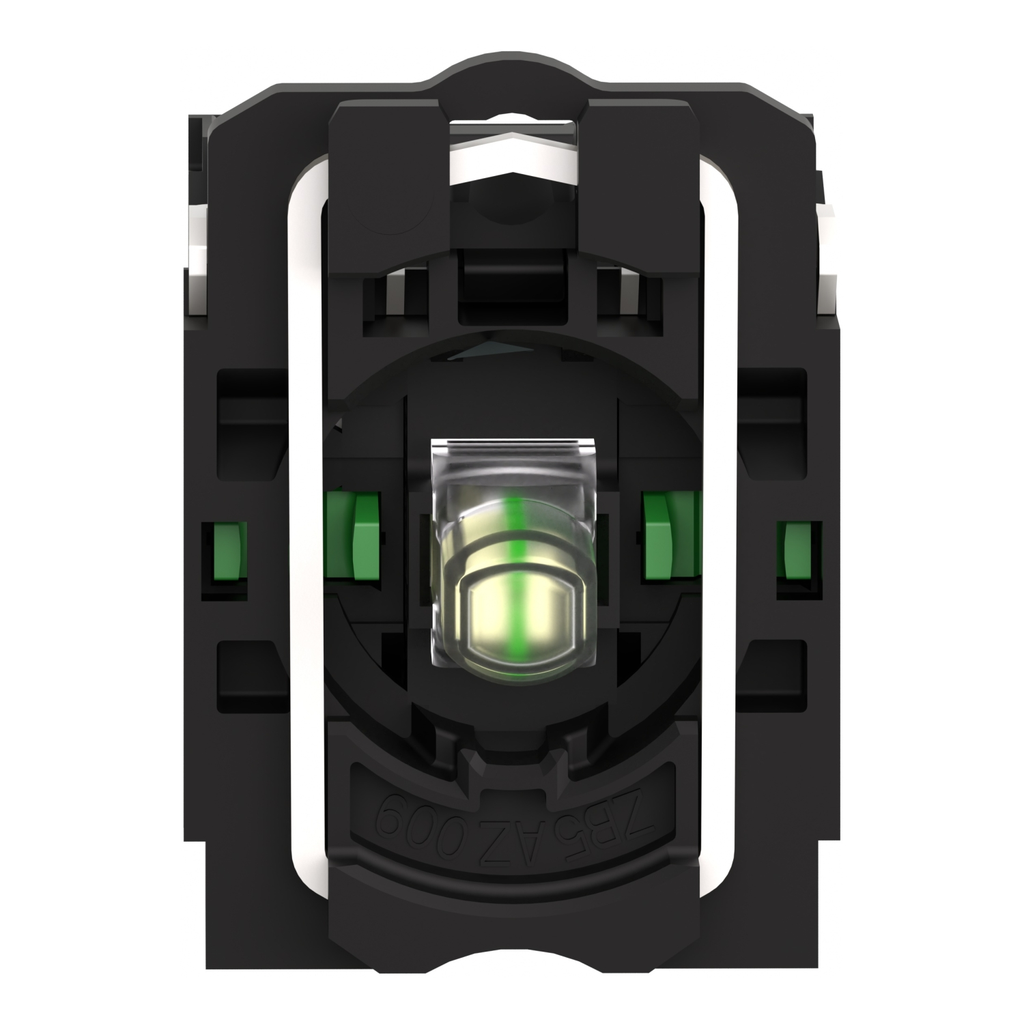

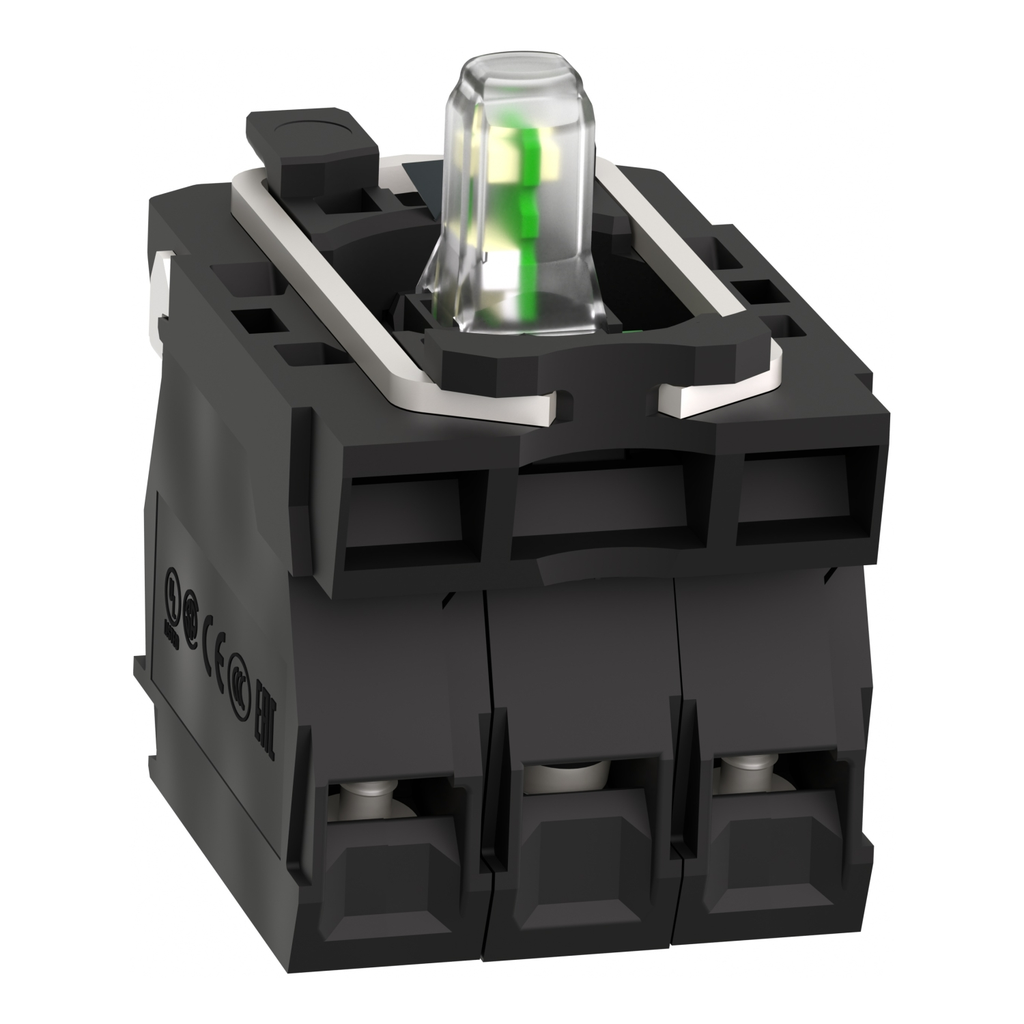

This Harmony XB5, light block with body/fixing collar operates with a universal LED. It has 2 x NO contacts and a plastic body and is compatible with Harmony XB5 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 32 mm
• Cad Overall Height : 42 mm
• Cad Overall Width : 30 mm
• Light Source Color : white
• Complementary Attributes
• Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Ui Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Us Rated Supply Voltage : 24 V, 24 V AC/DC 50/60 Hz
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : 0, no
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
• Electrical Shock Protection Class : class II conforming to IEC 60536
• Light Block Supply : direct
• Light Source : universal LED, universal LED
• Operating Force : 2.3 N NO changing electrical state
• Operating Travel : 2.6 mm NO changing electrical state), 4.3 mm total travel)
• Positive Opening : without
• Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6
• Resistance To Fast Transients : 2 kV IEC 61000-4-4
• Service Life : 100000 h at rated voltage and 25 °C
• Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Supply Voltage Limits : 19.2-30 V DC, 21.6-26.4 V AC
• Terminals Description Iso N 1 : (13-14)NO, (13-14)NO
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
• Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Ith Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Carbon Footprint Of The Distribution Phase A4 : 0.009224099821746882, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.07397076648841354
• Carbon Footprint Of The Installation Phase A5 : 0.0088698752228164, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.22305882352941178
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 7 kg CO2 eq., 7.320915492957744
• Contacts Composition : 2 NO
• Certificate Agency : CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2404014EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 29 %
• Average Percentage Of Recycled Plastic Content : 16 %
• Bulb Base : integral LED
• Compatibility Code : ZB5
• Contact Operation : slow-break
• Contacts Material : silver alloy (Ag/Ni)
• Contacts Type And Composition : 2 NO
• Contacts Usage : standard
• Current Consumption : 18 mA
• Device Short Name : ZB5
• Electromagnetic Emission : class B IEC 55011
• Fixing Collar Material : plastic
• Head Type : standard
• Mechanical Durability : 5000000 cycles
• Operating Torque : 0.05 N.m NO changing electrical state
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : complete body/contact assembly and light block
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Signalling Type : steady
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 8 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Light Source Color : white
• Warranty In Months : 18
• Supply Voltage 20 Supply Voltage : 24 V
• Pep Code : ENVPEP2404014_V1
• Database Version : 2022-01
• Pep Verification Date : 2024-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; UE-27
• Offer Owner Code : 190786
• Pn : 1
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 29 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 7.636039058020133
• Circularity Profile : ENVEOLI2404014EN
• Environmental Disclosure : ENVPEP2404014_V1
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2404014_V1
• Pep Verification Date : 2024-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : complete body/contact assembly and light block
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC000204
• ETIM 9 : EC000204
• Surge Protection And Filtering Attributes
• Surge Withstand : 1 kV IEC 61000-4-5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, France
• Overview Attributes
• Device Presentation : basic sub-assemblies
