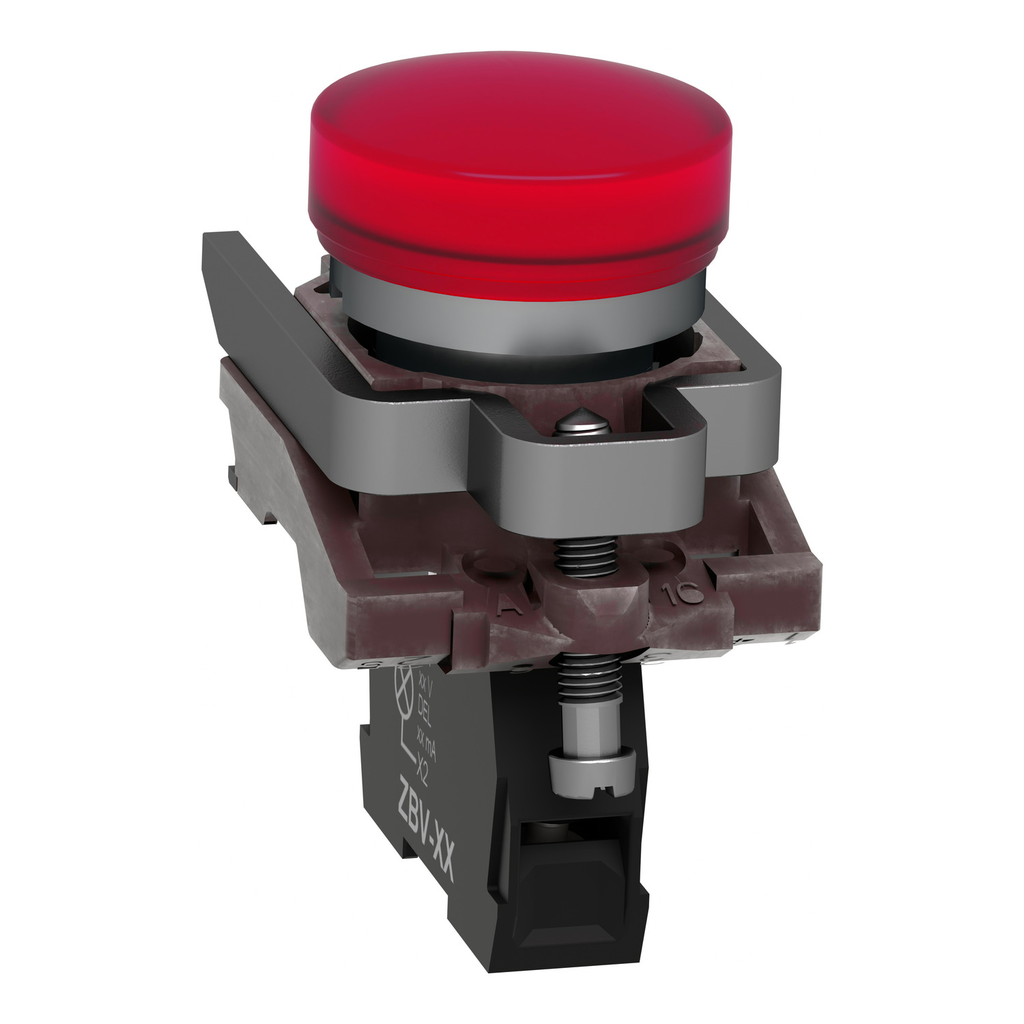

Pilot light, Harmony XB4,metal, red, 22mm, universal LED, plain lens, 110…120V AC

PUSH BUTTON LIGHT MODULE 120V

SQDXB4BVG4 XB4BVG4 3389110891973
0.00 / EA
http://schema.org/OutOfStock
  • Bezel Material: Chromium Plated Metal
  • Head Type: Standard
  • Warranty Length: 18 mth
This Harmony XB4 plain lens modular red pilot light is supplied with 110V to 120V AC, uses a universal LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UI Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • UIMP Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
    • US Rated Supply Voltage : 110...120 V AC 50/60 Hz
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Customizable : no, 1
    • Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Carbon Footprint Of The Distribution Phase A4 : 0.010461165048543688, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.19918446601941747, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.014819417475728154
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.6003009708737864
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.7 kg CO2 eq., 0.6847183098591549
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • HTML Description : Red Complete Pilot Light 22mm Plain Lens with Integral LED 110…120V
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308026EN
    • Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Average Percentage Of Recycled Metal Content : 17 %
    • Average Percentage Of Recycled Plastic Content : 36 %
    • Bezel Material : chromium plated metal
    • Bulb Base : integral LED
    • Compatibility Code : XB4
    • Device Short Name : XB4
    • Electrical Shock Protection Class : class I conforming to IEC 60536
    • Electromagnetic Emission : class B IEC 55011
    • Fixing Collar Material : zamak
    • GCR Bridge : XB4BVCUST04
    • Head Type : standard
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Mounting Diameter : 22.5 mm
    • Package Weight Lbs : 79.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : pilot light
    • Product Repair Index : A
    • Range Of Product : Harmony XB4
    • Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Service Life : 100000 h at rated voltage and 25 °C
    • Shape Of Signaling Unit Head : round
    • Signalling Type : steady
    • Supply Voltage Limits : 100-132 V AC
    • Sustainable Packaging : Yes
    • Terminals Description ISO N 1 : (X1-X2)PL
    • Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
    • Pep Code : ENVPEP2308026_V2
    • Pep Verification Date : 2024-02-18
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : SU-JIN NG
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K
    • Nema Degree Of Protection : NEMA 13, NEMA 4X
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 17 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 1.5094843292766307
    • Circularity Profile : ENVEOLI2308026EN
    • Environmental Disclosure : ENVPEP2308026_V2
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308026_V2
    • Pep Verification Date : 2024-02-18
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony XB4
  • Surge Protection And Filtering Attributes
    • Surge Withstand : 1 kV IEC 61000-4-5
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
