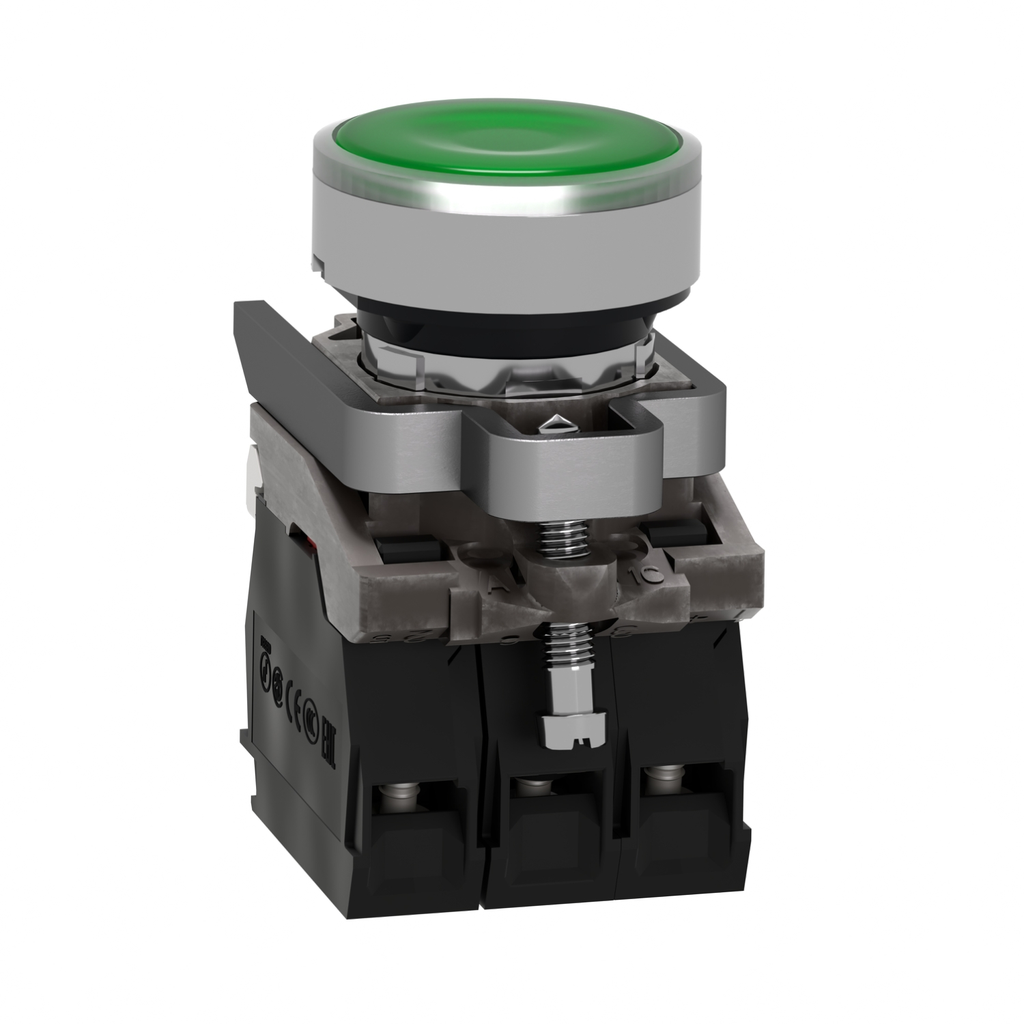

This Harmony XB4 illuminated modular green push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : CSA || LROS (Lloyds register of shipping) || BV || UL Listed || DNV
• Standards : IEC 60947-5-1 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Nema Degree Of Protection : NEMA 13 || NEMA 4X
• Electrical Shock Protection Class : class I conforming to IEC 60536
• Electromagnetic Emission : class B IEC 55011
• Ik Degree Of Protection : IK06 conforming to IEC 50102
• Ambient Air Temperature For Operation : -40-70 °C
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
• Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
• Ambient Air Temperature For Storage : -40-70 °C
• Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
• Protective Treatment : TH
• Resistance To Fast Transients : 2 kV IEC 61000-4-4
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Mercury Free : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.730024269
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 51 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 50.5955421367
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1808008EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : 425812e5-011f-4fb4-ad1b-fc9cf9865300
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.0142607018
• Circularity Profile : ENVEOLI1808008EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 49.6741404603
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.2 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Important Information
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks.
• Complementary
• Contacts Usage : standard contacts
• Terminals Description Iso N°1 : (13-14)NO || (21-22)NC
• Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Positive Opening : with IEC 60947-5-1 appendix K
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Net Weight : 0.097 kg
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Current Consumption : 14 mA
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Service Life : 100000 h at rated voltage and 25 °C
• [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Signalling Type : steady
• Width : 30 mm
• Depth : 57 mm
• Height : 47 mm
• Operating Force : 3.5 N NC changing electrical state || 3.8 N
• Operating Travel : 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
• Contacts Material : silver alloy (Ag/Ni)
• Device Presentation : complete product
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• Surge Withstand : 1 kV IEC 61000-4-5
• [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Supply Voltage Limits : 100-132 V AC
• Mechanical Durability : 10000000 cycles
• Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
• Specifications
• Country of Origin : France
• Width : 30 mm
• Height : 47 mm
• Weight : 0.097 kg
• Operator Additional Information : with plain lens
• Light Source : universal LED
• Mounting Diameter : 22.5 mm
• Product Or Component Type : illuminated push-button
• Shape Of Signaling Unit Head : round
• Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
• Contacts Type And Composition : 1 NO + 1 NC
• Bezel Material : chromium plated metal
• Operator Profile : green flush
• [Us] Rated Supply Voltage : 110...120 V AC 50/60 Hz
• Bulb Base : integral LED
• Range Of Product : Harmony XB4
• Type Of Operator : spring return
• Fixing Collar Material : zamak
• Head Type : standard
• Sale Per Indivisible Quantity : 1
• Contact Operation : slow-break
• Device Short Name : XB4
