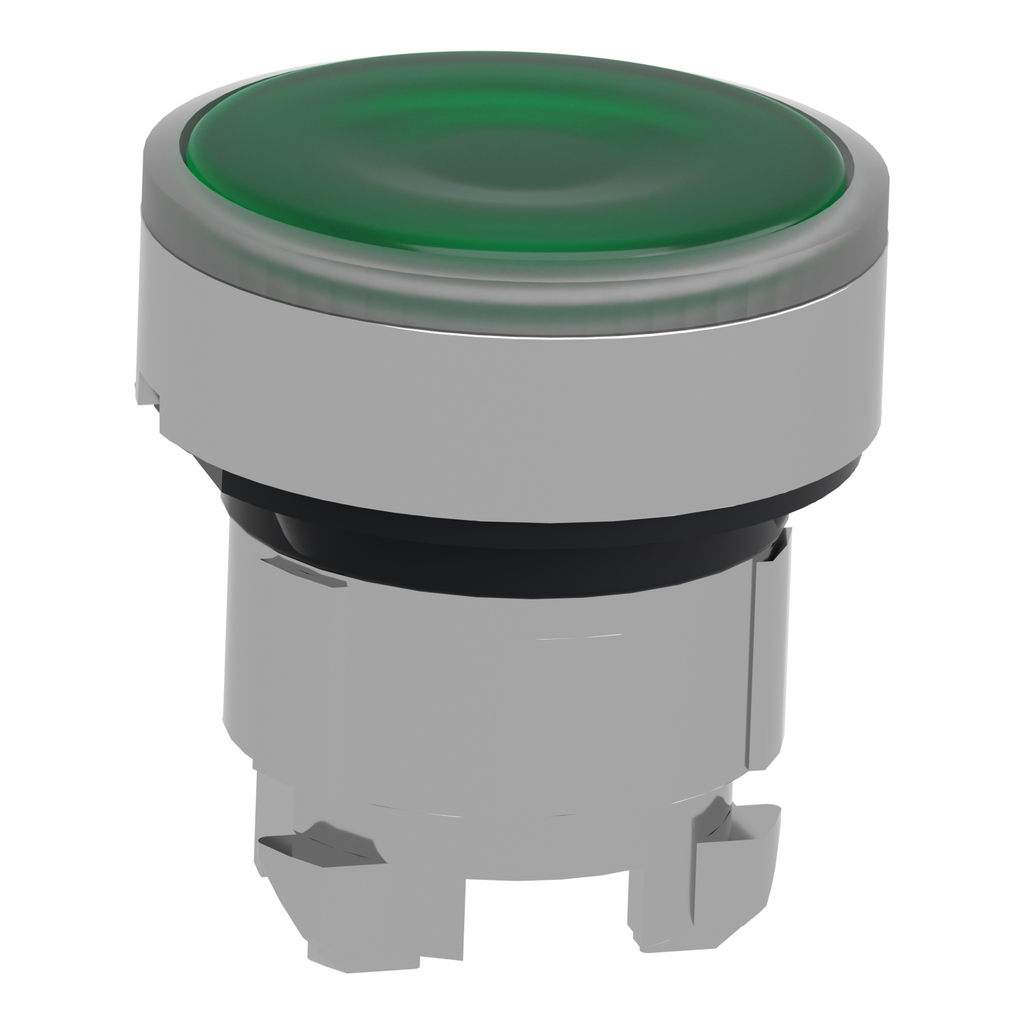

Head for illuminated push button, Harmony XB4, metal, green flush, 22mm, universal LED, spring return, plan lens

PUSH BUTTON

SQDZB4BW333 ZB4BW333 3389110889802
19.51 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB4, metal, green flush, 22mm, universal LED, spring return, plan lens-2
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Head Type: Standard
  • Height: 29 mm
  • Net Weight: 0.026 kg
  • Warranty Length: 18 mth
  • Weight: 0.026 kg
  • Width: 29 mm
This Harmony XB4, plain lens illuminated flush green button head for universal LED operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
QTY
  • Product Description
  • Specifications
This Harmony XB4, plain lens illuminated flush green button head for universal LED operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
  • Environment
    • Product Certifications : CSA || LROS (Lloyds register of shipping) || BV || UL Listed || DNV
    • Ik Degree Of Protection : IK06 conforming to IEC 62262
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I conforming to IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Packaging Without Single Use Plastic : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1808008EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.2469736452
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
    • Net Weight : 0.026 kg
    • Cad Overall Height : 29 mm
    • Device Presentation : basic sub-assemblies
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 30 mm
  • Specifications
    • Country of Origin : France
    • Width : 29 mm
    • Height : 29 mm
    • Weight : 0.026 kg
    • Operator Additional Information : with plain lens
    • Range Of Product : Harmony XB4
    • Mounting Diameter : 22.5 mm
    • Type Of Operator : spring return
    • Product Or Component Type : head for illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : green
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Operator Profile : green flush, unmarked
    • Product Compatibility : universal LED
    • Device Short Name : ZB4
