Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : BV || UL || CSA || DNV || LROS (Lloyds register of shipping)
• Standards : IEC 60947-5-4 || UL 508 || IEC 60947-5-1 || IEC 60947-5-5 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Overvoltage Category : class I conforming to IEC 60536
• Nema Degree Of Protection : NEMA 13 || NEMA 4X
• Ambient Air Temperature For Operation : -40-70 °C
• Ip Degree Of Protection : IP69 || IP69K || IP67 IEC 60529
• Ambient Air Temperature For Storage : -40-70 °C
• Protective Treatment : TH
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Mercury Free : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc : Yes
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.6989278361
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.9741165529
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : No
• Environmental Disclosure : ENVPEP2308005EN
• Packaging Without Single Use Plastic : No
• Toxic Heavy Metal Free : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.0169799126
• Circularity Profile : ENVEOLI2308005EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0.123886
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.1 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Contacts Usage : standard contacts
• Terminals Description Iso N°1 : (23-24)NO || (13-14)NO
• Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Positive Opening : without
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Net Weight : 0.105 kg
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Torque Value : 0.14 N.m NO changing electrical state
• Width : 30 mm
• Depth : 68 mm
• Height : 47 mm
• Contacts Material : silver alloy (Ag/Ni)
• Device Presentation : complete product
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
• [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Mechanical Durability : 1000000 cycles
• Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
• Specifications
• Country of Origin : France
• Width : 30 mm
• Height : 47 mm
• Weight : 0.105 kg
• Mounting Diameter : 22.5 mm

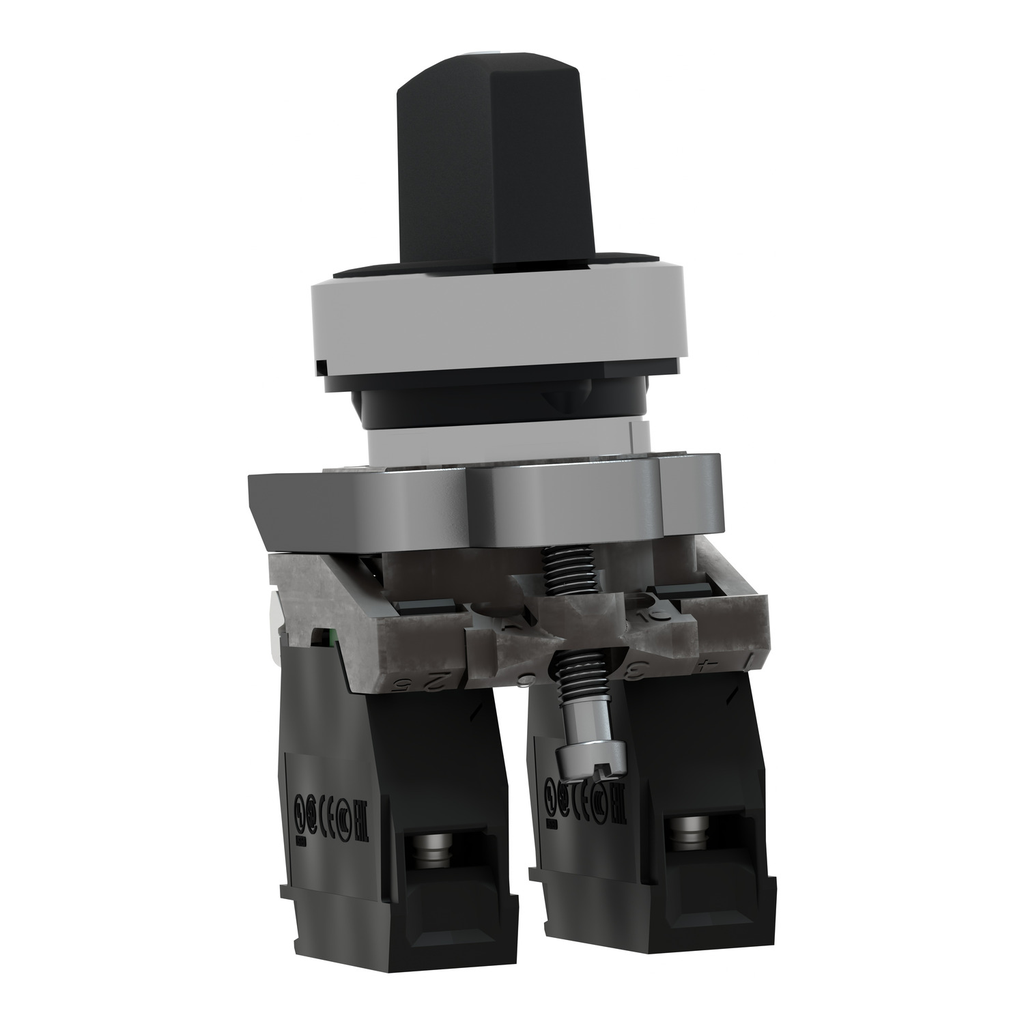

• Product Or Component Type : selector switch
• Shape Of Signaling Unit Head : round
• Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
• Contacts Type And Composition : 2 NO
• Bezel Material : chromium plated metal
• Operator Profile : black standard handle
• Operator Position Information : 3 positions +/- 45°
• Range Of Product : Harmony XB4
• Type Of Operator : stay put
• Fixing Collar Material : zamak
• Head Type : standard
• Sale Per Indivisible Quantity : 1
• Contact Operation : slow-break
• Device Short Name : XB4
