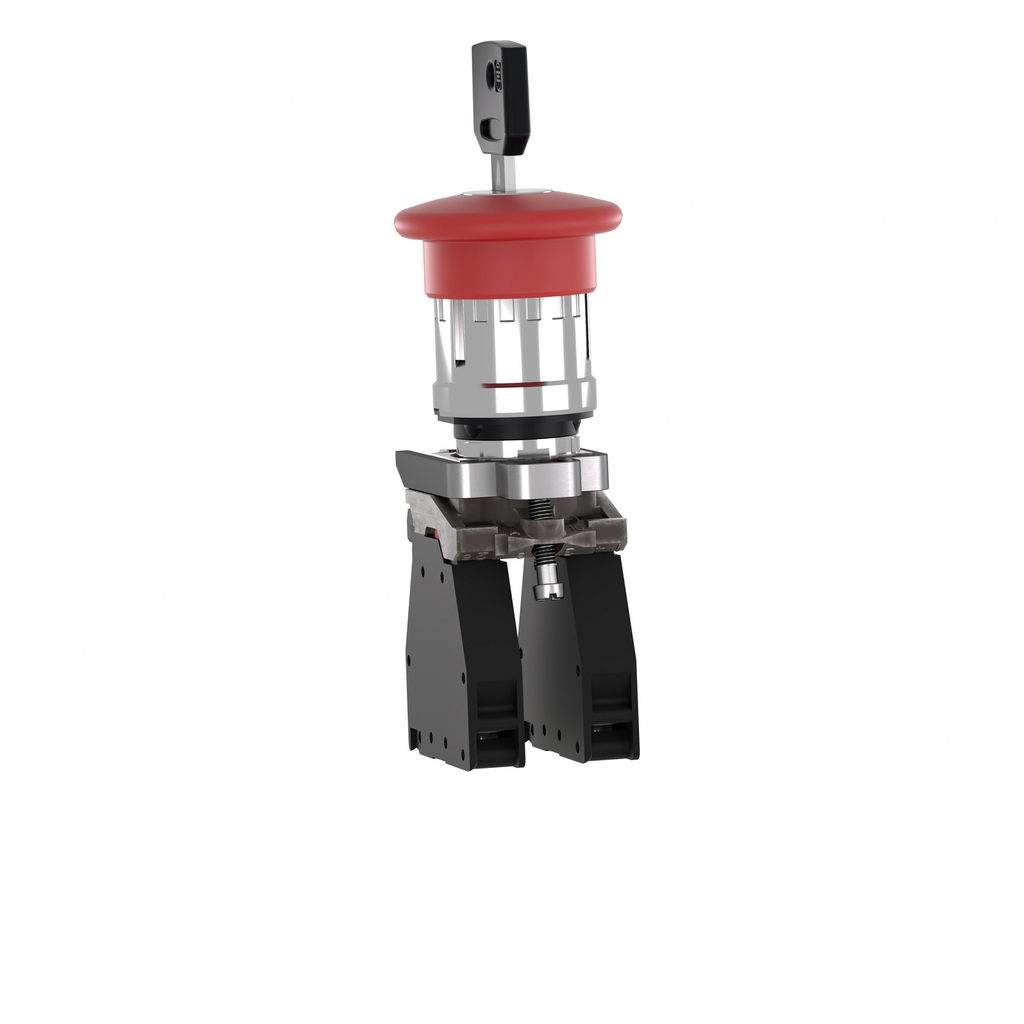

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This emergency switching off pusbutton comes with a mushroom head and key number 455. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It comes with trigger action and mechanical latching and key release operation. It has 1 NO and 1 NC contact with slow-break operation. This is a metal emergency stop pushbutton with a 40mm diameter mushroom head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Embedding Depth : 58 mm
• Complementary Attributes
• Ie Rated Operational Current : 1.9 A 380 V, AC, A600 IEC 60947-5-1, 3 A 240 V, AC, A600 IEC 60947-5-1, 6 A 120 V, AC, A600 IEC 60947-5-1, 0.27 A 250 V, DC, Q300 IEC 60947-5-1, 0.55 A 125 V, DC, Q300 IEC 60947-5-1, 2.87 A 24 V, DC, Q300 IEC 60947-5-1
• Ui Rated Insulation Voltage : 415 V
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Fixing Center : >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm
• Marking : II 2 GD, Ex tb IIIC Db, Ex db eb IIC Gb
• Operator Profile : red mushroom Ø 40 mm
• Positive Opening : with IEC 60947-5-1 appendix K
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Type Of Operator : trigger action and mechanical latching
• Connections Terminals : screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
• Ie Rated Operational Current : 1.9 A 380 V, AC, A600 IEC 60947-5-1, 3 A 240 V, AC, A600 IEC 60947-5-1, 6 A 120 V, AC, A600 IEC 60947-5-1, 0.27 A 250 V, DC, Q300 IEC 60947-5-1, 0.55 A 125 V, DC, Q300 IEC 60947-5-1, 2.87 A 24 V, DC, Q300 IEC 60947-5-1
• Ith Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Carbon Footprint Of The Distribution Phase A4 : 0.022191985, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0199819411
• Carbon Footprint Of The Installation Phase A5 : 0.0007443927, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.8163932373
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2201004EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 20 %
• Average Percentage Of Recycled Plastic Content : 16 %
• Bezel Material : chromium plated metal
• Compatibility Code : XB4
• Contact Operation : slow-break
• Contacts Type And Composition : 1 NO + 1 NC
• Contacts Usage : standard
• Device Short Name : XB4
• Dust Zone : zone 21 - 22
• Fixing Collar Material : zamak
• Gas Zone : zone 1 - 2
• Key Number : 455
• Key Withdrawal Position : center
• Mechanical Durability : 5000000 cycles
• Mounting Diameter : 22 mm
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : complete emergency stop push-button
• Product Repair Index : A
• Protective Treatment : TH
• Range Of Product : Harmony XB4
• Reset : key release
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Software Version : EIME v5.9.3
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Warranty In Months : 18
• Pep Code : ENVPEP2201004_V1-EN
• Database Version : 2016-11
• Pep Verification Date : 2022-01-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Emergency stop push button which helps to shut off machinery in an emergency situation when there is a risk of injury or the workflow requires stopping. Product meets the international standards as EN/IEC 60947-1 and EN/IEC 60204 -1 during 20 years.
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Energy model used: Pisek, Czech Republic
• Energy Model - Installation [A5] : Electricity mix; AC; 120V; US
• Energy Model - Use [B6] : Electricity mix; AC; 120V; US
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; 120V; US
• Offer Owner Code : 190786
• Pn : 1
• Height Nominal : 30 mm
• Width Nominal : 46.2 mm
• Certificate Agency : INERIS 04ATEX9004U
• Environment Attributes Main
• Ambient Air Temperature For Operation : -20-65 °C, -20-65 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP65 IEC 60529
• Take Back : No
• Recycled Metal Content At Cr Level : 20 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1.8593115562
• Circularity Profile : ENVEOLI2201004EN
• Environmental Disclosure : ENVPEP2201004_V1-EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2201004_V1-EN
• Pep Verification Date : 2022-01-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : complete emergency stop push-button
• Range Of Product : Harmony XB4
• ETIM
• ETIM 8 : EC002034
• ETIM 9 : EC002034
• Specifications
• Country of Origin : France
• Depth : 119.5 mm
