Complete body/light block assembly, Harmony XB4, green light, with body/fixing collar, BA9s LED bulb, 400V AC

COMPLETE BODY/LIGHT BLOCK ASSE

SQDZB4BV5D3 ZB4BV5D3 3389110892598
107.60 / EA
http://schema.org/OutOfStock

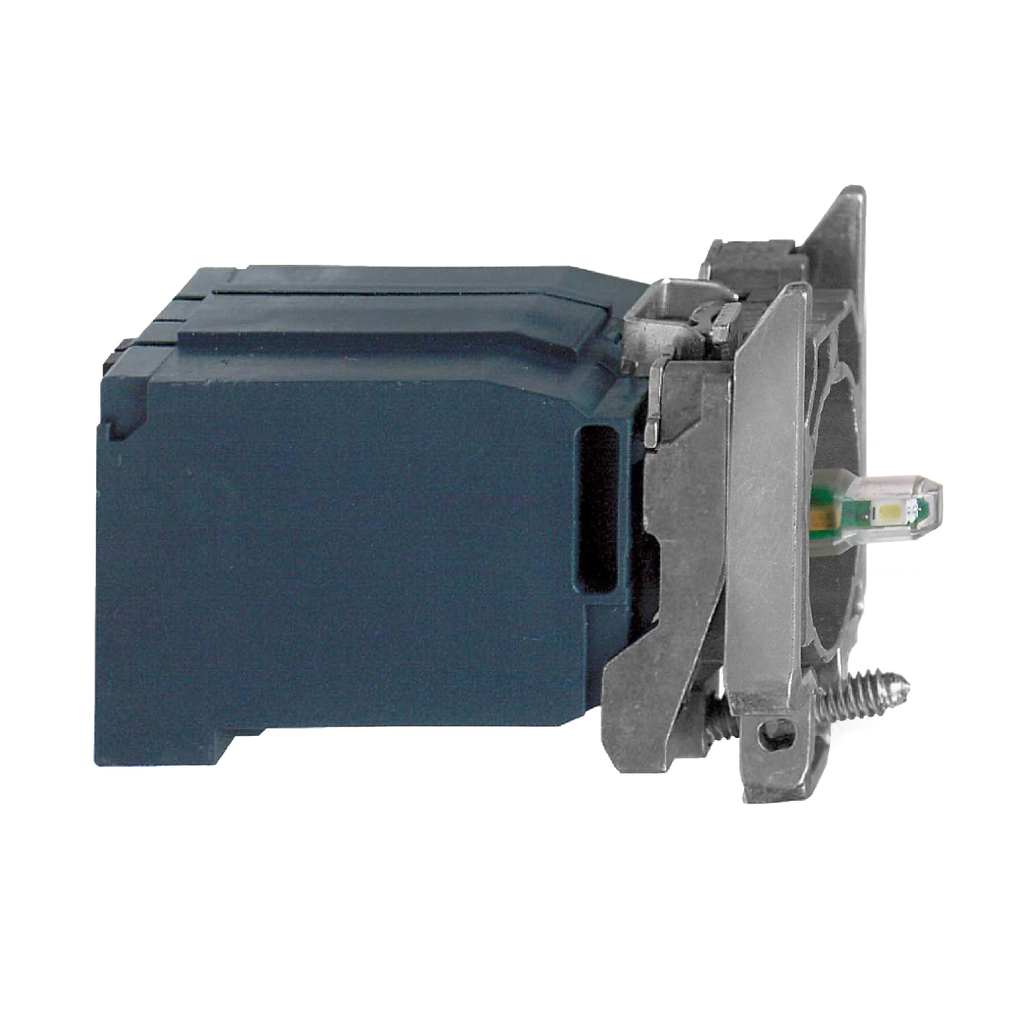

Mayer-DDS-Complete body/light block assembly, Harmony XB4, green light, with body/fixing collar, BA9s LED bulb, 400V AC-1
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cad Overall Depth : 60 mm
    • Cad Overall Height : 47 mm
    • Cad Overall Width : 30 mm
  • Complementary Attributes
    • UI Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • UIMP Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
    • US Rated Supply Voltage : 400 V AC 50/60 Hz
  • Important Information Attributes
    • Customizable : no, 0
    • Carbon Footprint Of The Distribution Phase A4 : 0.0171301578, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.1564686893
    • Carbon Footprint Of The Installation Phase A5 : 0.0242667961, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 0.983056432
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 69 kg CO2 eq., 69.45
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308026EN
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Average Percentage Of Recycled Metal Content : 20 %
    • Average Percentage Of Recycled Plastic Content : 44 %
    • Bulb Base : BA 9s
    • Compatibility Code : ZB4
    • Device Short Name : ZB4
    • Electrical Composition Code : P4
    • Electrical Shock Protection Class : class I conforming to IEC 60536
    • Fixing Collar Material : zamak
    • Light Block Supply : via integral transformer 1.2 VA 6 V
    • Mounting Of Block : front mounting
    • Package Weight Lbs : 131.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : complete body/light block assembly
    • Range Of Product : Harmony XB4
    • Returnability : Yes
    • Shape Of Screw Head : cross Philips no 1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • Signalling Type : steady
    • Sustainable Packaging : Yes
    • Terminals Description ISO N 1 : (X1-X2)PL
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 71 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end
    • Pep Code : ENVPEP2308026_V1-EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : SU-JIN NG
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 20 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 70.6309220752
    • Circularity Profile : ENVEOLI2308026EN
    • Environmental Disclosure : ENVPEP2308026_V1-EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Pep Code : ENVPEP2308026_V1-EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : complete body/light block assembly
    • Range Of Product : Harmony XB4
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
