Complete body contact assembly and light block, Harmony XB5, XB4, with body fixing collar, universal LED, 24V 1NC

COMPLETE BODY/CONTACT ASSEMBLY

SQDZB5AW0B12 ZB5AW0B12 3389110908350
69.99 / EA
http://schema.org/OutOfStock

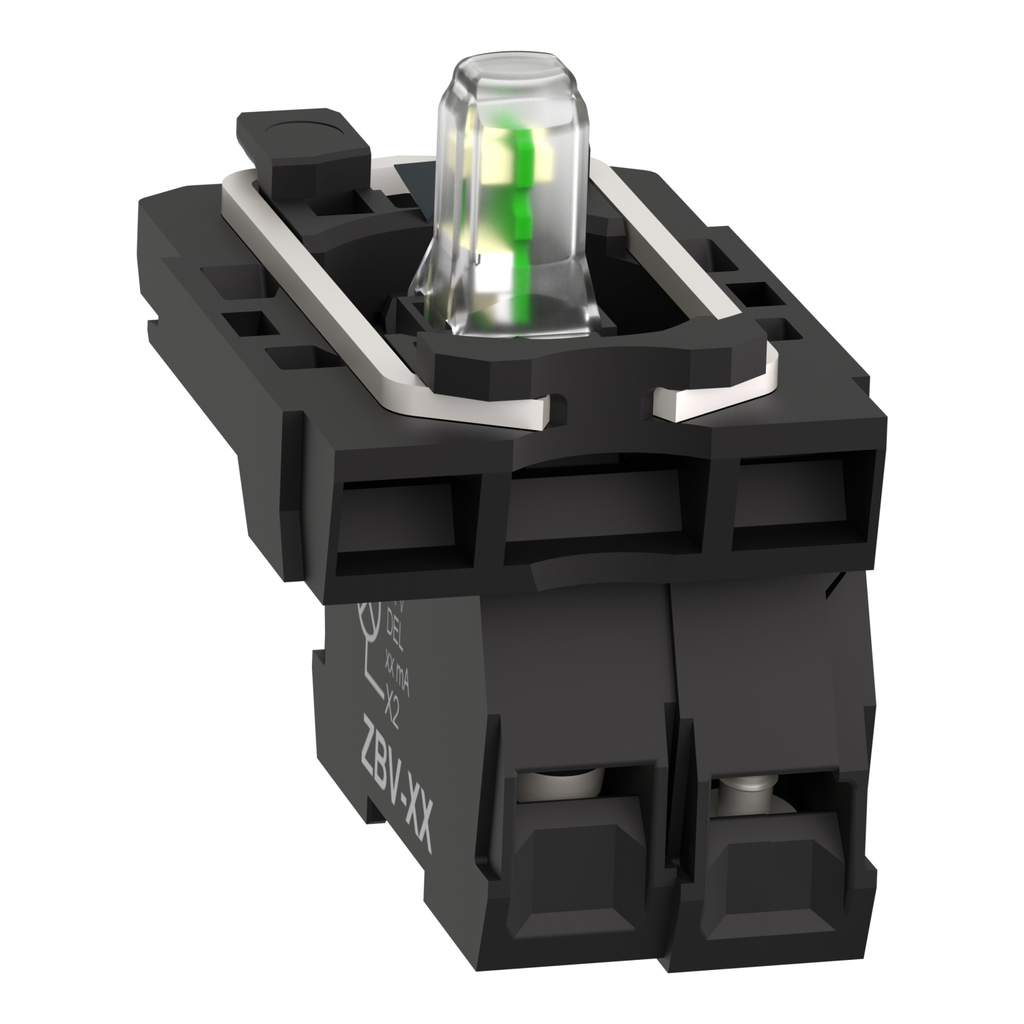

Mayer-DDS-Complete body contact assembly and light block, Harmony XB5, XB4, with body fixing collar, universal LED, 24V 1NC-2
  • Country of Origin: France
  • Head Type: Standard
  • Warranty Length: 18 mth
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
QTY
  • Product Description
  • Features
  • Specifications
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
  • US Rated Supply Voltage
    • 24 V AC/DC 50/60 Hz
  • Connections Terminals
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
    • screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
  • IE Rated Operational Current
    • 3 A 240 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947-5-1
    • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
    • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
    • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
  • ITH Conventional Free Air Thermal Current
    • 10 A IEC 60947-5-1
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW12S
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW12F
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW0B12_CAD
  • Supply Voltage Limits
    • 19.2-30 V DC
    • 21.6-26.4 V AC
  • Shape Of Screw Head
    • cross Philips no 1
    • cross pozidriv No 1
    • slotted flat Ø 4 mm
    • slotted flat Ø 5.5 mm
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0088698752228164
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.07397076648841354
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.2 kg CO2 eq.
    • 0.22305882352941178
  • Electrical Shock Protection Class
    • class II conforming to IEC 60536
  • UI Rated Insulation Voltage
    • 600 V 3)IEC 60947-1
  • Electrical Durability
    • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • Service Life
    • 100000 h at rated voltage and 25 °C
  • Operating Force
    • 2 N NC changing electrical state
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Positive Opening
    • with IEC 60947-5-1 appendix K
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 7 kg CO2 eq.
    • 7.320915492957744
  • Resistance To Fast Transients
    • 2 kV IEC 61000-4-4
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Surge Withstand
    • 1 kV IEC 61000-4-5
  • Electromagnetic Emission
    • class B IEC 55011
  • Customizable
    • no
    • 0
  • Resistance To Electrostatic Discharge
    • 6 kV on contact (on metal parts) IEC 61000-2-6
    • 8 kV in free air (in insulating parts) IEC 61000-2-6
  • Carbon Footprint Of The Distribution Phase A4
    • 0.009224099821746882
    • 0 kg CO2 eq.
  • Tightening Torque
    • 0.8-1.2 N.m IEC 60947-1
  • Short Circuit Protection
    • 10 A cartridge fuse gG IEC 60947-5-1
  • Resistance To Electromagnetic Fields
    • 10 V/m IEC 61000-4-3
  • Operating Travel
    • 1.5 mm NC changing electrical state)
    • 4.3 mm total travel)
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Electrical Reliability
    • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
    • λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • UIMP Rated Impulse Withstand Voltage
    • 6 kV IEC 60947-1
  • Physical Attributes
    • Cad Overall Depth : 32 mm
    • Cad Overall Height : 42 mm
    • Cad Overall Width : 30 mm
  • Important Information Attributes
    • B2B Bullet Point 1 : Quick and easy assembly and disassembly
    • B2B Bullet Point 2 : Robustness to withstand harsh environments
    • B2B Bullet Point 3 : With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • B2B Bullet Point 4 : A wide choice of contact blocks for general purposes or specific applications
    • B2B Bullet Point 5 : Excellent mechanical connection with operator head
    • B2B Bullet Point 6 : A large set of accessories to customize your panels
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Manufacturing Carbon Footprint : 0.22305882352941178
    • Distribution Carbon Footprint : 0.009224099821746882
    • Installation Carbon Footprint : 0.0088698752228164
    • Use Carbon Footprint : 7.320915492957744
    • End Of Life Carbon Footprint : 0.07397076648841354
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2404014EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bulb Base : integral LED
    • Compatibility Code : ZB5
    • Contacts Usage : standard
    • Device Short Name : ZB5
    • Fixing Collar Material : plastic
    • Head Type : standard
    • Light Block Supply : direct
    • Package Weight Lbs : 29.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : complete body/contact assembly and light block
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Signalling Type : steady
    • Sustainable Packaging : Yes
    • Terminals Description ISO N 1 : (11-12)NC
    • Total Lifecycle Carbon Footprint : 8 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 7.636039058020133
    • Relationship Type : Compatible relationship
    • Accessories : ZB5AZ905
    • Pep Code : ENVPEP2404014EN
    • Pep Verification Date : 2024-06-09
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 32
    • Functional Unit Description : Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 13.306439999999995
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; UE-27
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.04790058858778337
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0017091764705882354
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.00004008385026737968
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.00003520855614973262
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.04598457746478872
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0001315422459893048
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.00031322923351158647
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.009024514821119226
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.002627650623885918
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0003942673796791444
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.005967746478873237
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.00003485033868092692
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.00047124991087344034
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 7.626578343501291
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.22043493761140823
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.009224099821746882
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.00847572192513369
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 7.314507042253519
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.07393654188948308
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.054252834224598936
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 7.636039058020133
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.22305882352941178
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.009224099821746882
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.0088698752228164
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 7.320915492957744
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.07397076648841354
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.05472399286987522
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.00017581802274538926
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.00017550374331550803
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000000079286988
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000029598003565
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000030095563380282
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000001302702317291
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00001209554367201426
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 156.6906481986392
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 3.533918003565063
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.11200570409982176
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.09232655971479502
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 150.68239436619714
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 2.270003565062389
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1.009511586452763
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 190.91501414476159
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 88.26524064171124
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.037829590017825314
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.0605319073083779
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 102.17535211267602
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.37605989304812837
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1.0033511586452764
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000032773490742387
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000002817197860963
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000001088
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000023423315508
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000029857464788732
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000064524777184
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000000215295543672
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0000138202852951721
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00000299607843137255
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000000108012834225
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000000640798573975
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00001032598591549296
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000043306096256684
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000018820677361854
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 1.157946648413547
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.1295258467023173
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.00000764235294117647
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.00010485276292335117
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.02830830659536542
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.9477361853832442
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000016381408277962
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000015975472370766
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000013014474
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000000031712513369
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000088328169014
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000000469590018
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000014239714795009
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000005507493965806
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000128222459893
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000002436278075
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000004593511586
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000004135028169014
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.000000000832114082
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000000245053832442
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.09401144164093292
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.005720641711229947
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.08556760563380279
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.0027231942959001785
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 6.211711398201399
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.5910017825311943
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00002045090909090909
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00041584028520499114
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 5.619718309859153
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0005550146167557932
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.023405062388591802
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.005457449105470612
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0002730837789661319
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000184202495543672
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00000932449197860963
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.0051252816901408435
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.00003133889483065954
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000381410338680927
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.01555627807486631
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.004874210338680927
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.010682067736185383
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.010950822781250783
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : -0.00001308634581105169
    • Net Use Of Fresh Water M3 Distribution A4 : 0.00001089597147950089
    • Net Use Of Fresh Water M3 Installation A5 : 0.00008818538324420677
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.006558802816901407
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0043060249554367205
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0005876934046345812
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 1.4344024651271619
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.25457397504456325
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00000938837789661319
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.02885475935828877
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 1.1367605633802813
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.014203778966131907
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.15785525846702317
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000000661920252065
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000002243764705882
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000000813975044563
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000058712299465
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000000347614084507
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000026609625668
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000000835764705882
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.017933682550777028
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0009123137254901961
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.00006544884135472371
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00001879158645276293
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.016848309859154923
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.00008881853832442069
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.00013248342245989305
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.00023582150415505507
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.00007605276292335116
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.00000183392513368984
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00000387314081996435
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00015341830985915488
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000064336541889483
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00002045946524064172
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.0690753315056112
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.002931336898395722
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.00019959786096256684
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00007037718360071301
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.06560774647887323
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.00026627308377896616
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00039920142602495545
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.41891479500891265
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.41891479500891265
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 179.91278438402242
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 3.6482281639928704
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.11200570409982176
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.09895472370766488
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 173.7823943661971
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 2.2712014260249553
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1.0520071301247773
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 23.225549707719107
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1142873440285205
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000007503743315508
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.006624741532976827
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 23.103450704225345
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0011861675579322639
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.04250010695187166
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.41891479500891265
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.41891479500891265
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 156.27173910773013
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.1150089126559717
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.11200570409982176
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.09232655971479502
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 150.68239436619714
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.270003565062389
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.009511586452763
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.09665597147950089
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.09665597147950089
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.08773475935828877
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 23.12889487705957
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.017632513368983957
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000007503743315508
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.006624741532976827
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 23.103450704225345
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0011861675579322639
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.045235793226381465
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.00000110659536541889
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00000110659536541889
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 0.451601702633627
    • Water Use M3 Eq Manufacturing A1 A3 : -0.0005726916221033868
    • Water Use M3 Eq Distribution A4 : 0.00046798146167557935
    • Water Use M3 Eq Installation A5 : 0.0037874652406417113
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 0.2816957746478872
    • Water Use M3 Eq End Of Life C1 C4 : 0.16622317290552585
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.025240071301247773
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : complete body/contact assembly and light block
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=654580&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 7.636039058020133
    • Circularity Profile : ENVEOLI2404014EN
    • Environmental Disclosure : ENVPEP2404014EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2404014EN
    • Pep Verification Date : 2024-06-09
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic sub-assemblies
