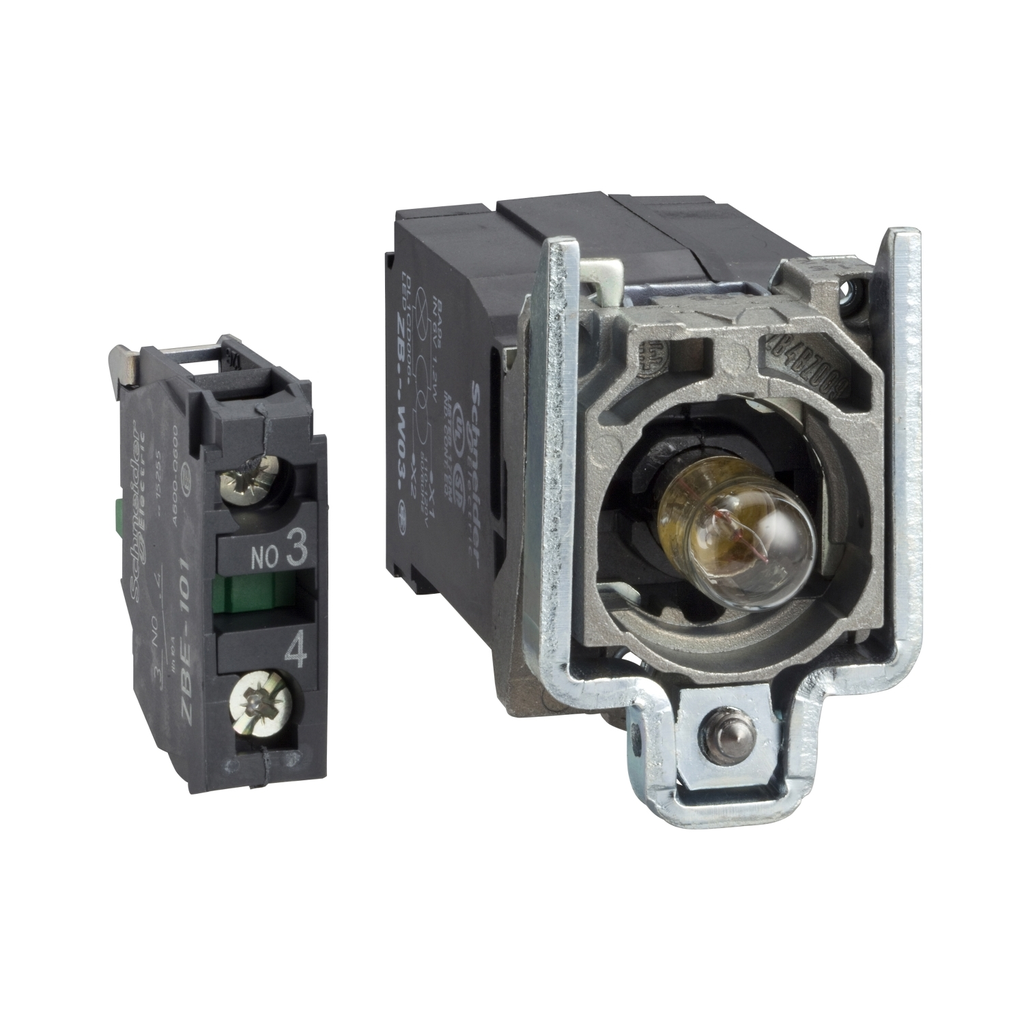

Complete body/contact assembly and light block, Harmony XB4, with body/fixing collar, BA9s incandescent bulb, 220...240V, 1NO

COMPLETE BODY/CONTACT ASSEMBLY

SQDZB4BW041 ZB4BW041 3389110891843
122.67 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete body/contact assembly and light block, Harmony XB4, with body/fixing collar, BA9s incandescent bulb, 220...240V, 1NO-1
  • Head Type: Standard
  • Operating Force: 2.3 N
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cad Overall Height : 47 mm
    • Cad Overall Width : 30 mm
  • Complementary Attributes
    • IE Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • UI Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • UIMP Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
    • US Rated Supply Voltage : 220...240 V AC 50/60 Hz
  • Important Information Attributes
    • Customizable : no, 0
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    • Operating Travel : 2.6 mm NO changing electrical state), 4.3 mm total travel)
    • Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • IE Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.0220746199, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.229905848
    • Carbon Footprint Of The Installation Phase A5 : 0.0202884211, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.0385912281
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 48 kg CO2 eq., 48.1901112107
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1808008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Average Percentage Of Recycled Metal Content : 21 %
    • Average Percentage Of Recycled Plastic Content : 37 %
    • Bulb Base : BA 9s
    • Compatibility Code : ZB4
    • Contacts Usage : standard
    • Device Short Name : ZB4
    • Electrical Shock Protection Class : class I conforming to IEC 60536
    • Fixing Collar Material : zamak
    • Head Type : standard
    • Light Block Supply : via integral transformer 1.2 VA 6 V
    • Operating Force : 2.3 N NO changing electrical state
    • Operating Torque : 0.05 N.m NO changing electrical state
    • Package Weight Lbs : 138.0 g
    • Positive Opening : without
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : complete body/contact assembly and light block
    • Range Of Product : Harmony XB4
    • Returnability : Yes
    • Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Signalling Type : steady
    • Sustainable Packaging : Yes
    • Terminals Description ISO N 1 : (13-14)NO
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 50 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • ITH Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Pep Code : ENVPEP1808008_V2-EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : SU-JIN NG
