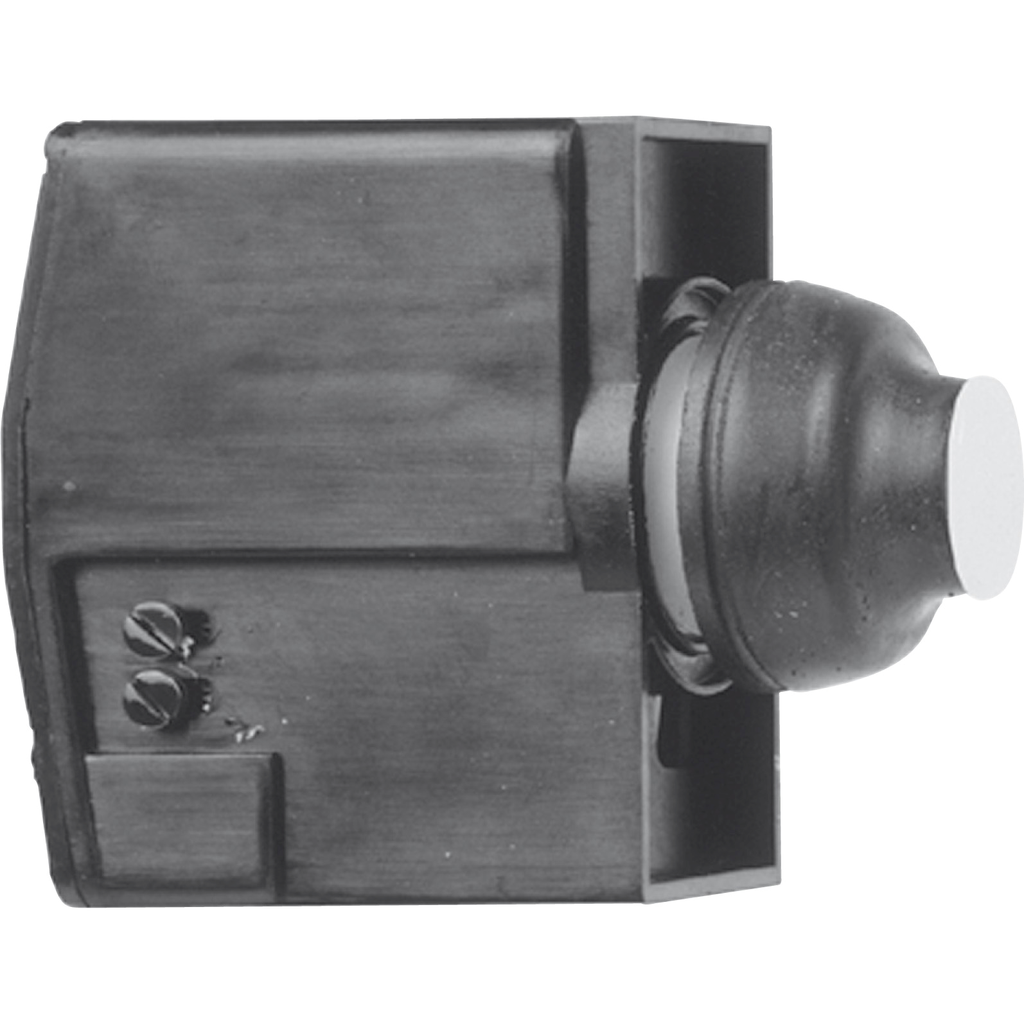

Booted push button, Harmony XAC, control circuit, black, booted, 1NO + 1NC at start of travel, 1NO at end of travel, 0...15V DC

BOOTED PUSHBUTTON - FOR CONTRO

SQDXEAB15361 XEAB15361 3389110655100
834.02 / EA
http://schema.org/OutOfStock
Mayer-DDS-Booted push button, Harmony XAC, control circuit, black, booted, 1NO + 1NC at start of travel, 1NO at end of travel, 0...15V DC-1
  • Current: 15 mA
  • Net Weight: 0.065 kg
  • Rated Power: 110 V, -13 12 W, -13 48 W, 48 V
  • Standard: IEC 60947-5-1
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Environment
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Standards : IEC 60947-5-1
    • Ip Degree Of Protection : IP65 conforming to IEC 60529
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Rated Power In W : DC-13 12 W 110 V inductive IEC 60947-5-1 appendix C 1000000 cycles || DC-13 48 W 48 V inductive IEC 60947-5-1 appendix C 1000000 cycles
    • Connections - Terminals : terminal connectors, 1 x 2.5 mm² || terminal connectors, 2 x 1.5 mm²
    • Contacts Type And Composition : 1 NC + 1 NO at start of travel || 1 NO at end of travel
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • Operating Force : 4 N at start of travel || 9 N at end of travel
    • Mechanical Durability : 1000000 cycles
    • [Ithe] Conventional Enclosed Thermal Current : 6 A
    • Rated Power In Va : 30 VA AC-15 1000000 cycles 110 V 50/60 Hz IEC 60947-5-1 appendix C || 30 VA AC-15 1000000 cycles 230 V 50/60 Hz IEC 60947-5-1 appendix C || 30 VA AC-15 1000000 cycles 48 V 50/60 Hz IEC 60947-5-1 appendix C
    • Net Weight : 0.065 kg
    • Current Consumption : < 15 mA
  • Specifications
    • Weight : 0.065 kg
    • [Us] Rated Supply Voltage : 0...-15 V
    • Control Circuit Type : DC
    • Range Of Product : Harmony XAC
    • Electrical Circuit Type : control circuit
    • Operating Travel : 11 mm
    • Product Or Component Type : booted push-button
    • Control Station Name : XACM || XACB
