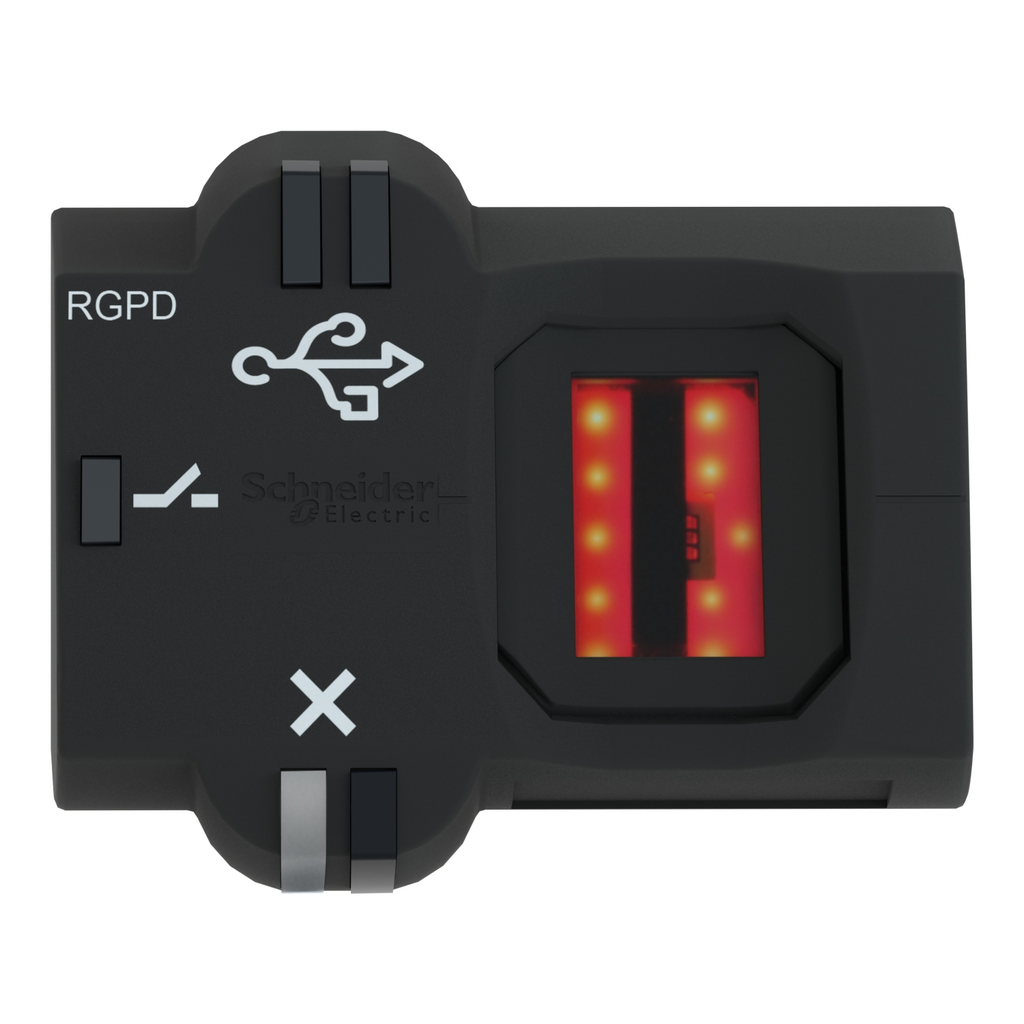

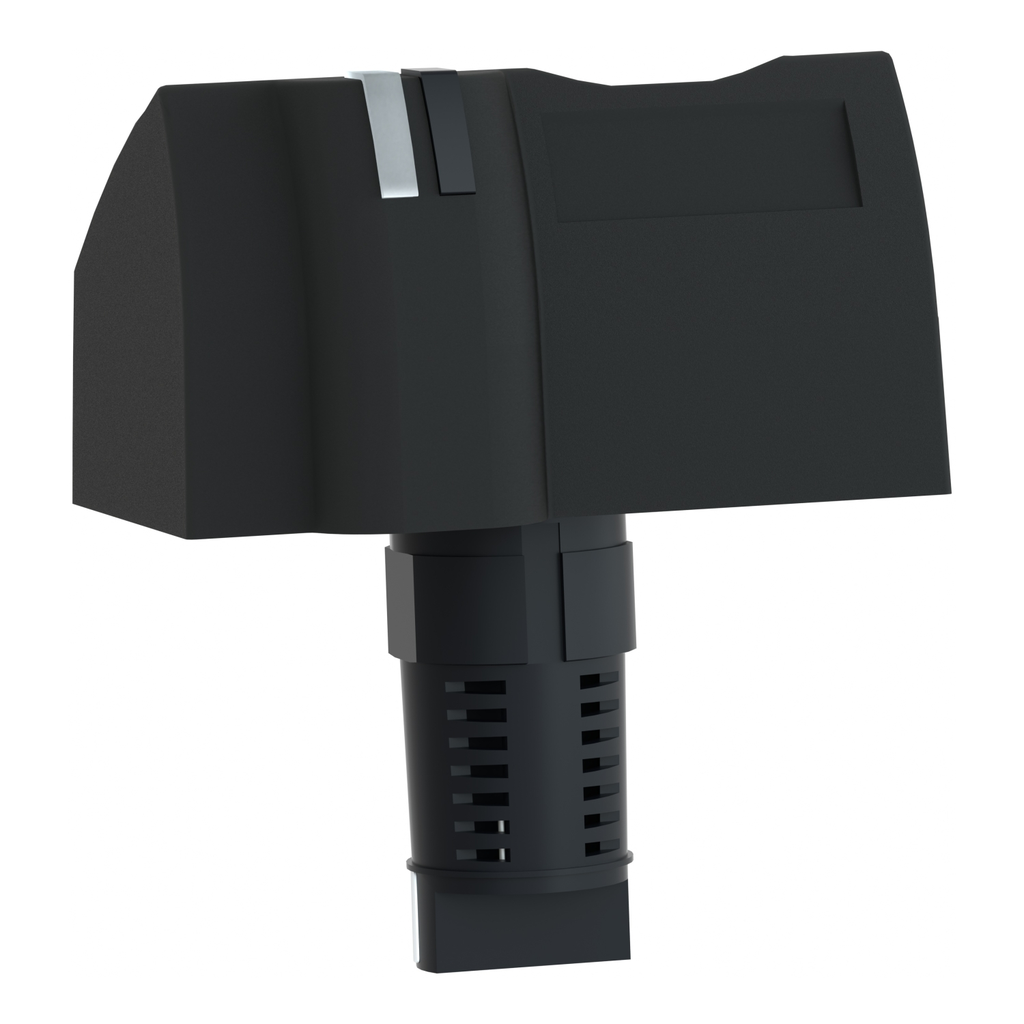

This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

• Environment
• Product Certifications : CSA || UL
• Ambient Air Temperature For Operation : -5-50 °C
• Range Of Product : Harmony XB5S
• Standards : IEC 61000-6-4 || IEC 61000-6-2
• Shock Resistance : 50 gn 11 ms IEC 60068-2-27
• Vibration Resistance : +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6 || 1 gn (f= 9-500 Hz) conforming to IEC 60068-2-6
• Ambient Air Temperature For Storage : -25-70 °C
• Nema Degree Of Protection : NEMA 12
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2404013EN
• Packaging Without Single Use Plastic : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Circularity Profile : ENVEOLI2404013EN
• Take-Back : No
• Sustainable Packaging : Yes
• Eu Rohs Directive : Compliant with Exemptions
• Complementary
• Current Consumption : <= 70 mA no-load
• Electrical Connection : free wire ends 3 2 m
• Maximum Delay Response : 1.5 s
• Short-Circuit Protection : 250 mA external fuse gG
• Cable Insulation Material : PvR
• Connector Type : USB type A male 1 m
• Maximum Switching Current : 200 mA
• Marking : CE
• Net Weight : 0.202 kg
• [Us] Rated Supply Voltage : 24 V DC
• Communication Port Protocol : USB
• Maximum Delay Recovery : 1.5 s
• Software Designation : XB5SSoft
• Supply Voltage Limits : 20-30 V DC
• Local Signalling : 1 LED (green) for output state indicator || 1 LED (red) for error
• Operating Position : vertical surface installation || flat surface installation || horizontal position
• Protection Type : reverse polarity || short-circuit || overload protection
• Enclosure Material : polyamide PA66
• Function Of Module : bi-stable
• [Ures] Residual Voltage : 1 V closed state
• Maximum Delay First Up : 3 s + 0.5 ms per user registered
• Specifications
• Country of Origin : France
• Weight : 0.202 kg
• Mounting Diameter : 22 mm
• Product Or Component Type : biometric switch RGPD
• Ip Degree Of Protection : IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
• Connections - Terminals : 1 pre-wired cable, 3 x 0.11 mm²
• Sale Per Indivisible Quantity : 1
• Bezel Material : plastic
• Operator Profile : fingerprint reader
• Product Specific Application : materials handling || industrial machines
• Operator Position Information : 2 positions
• Type Of Operator : stay put
• Output Type : PNP
• Memory Usage : 200 users with up to 2 fingerprints per user
• Device Short Name : XB5S
