SQUARE D

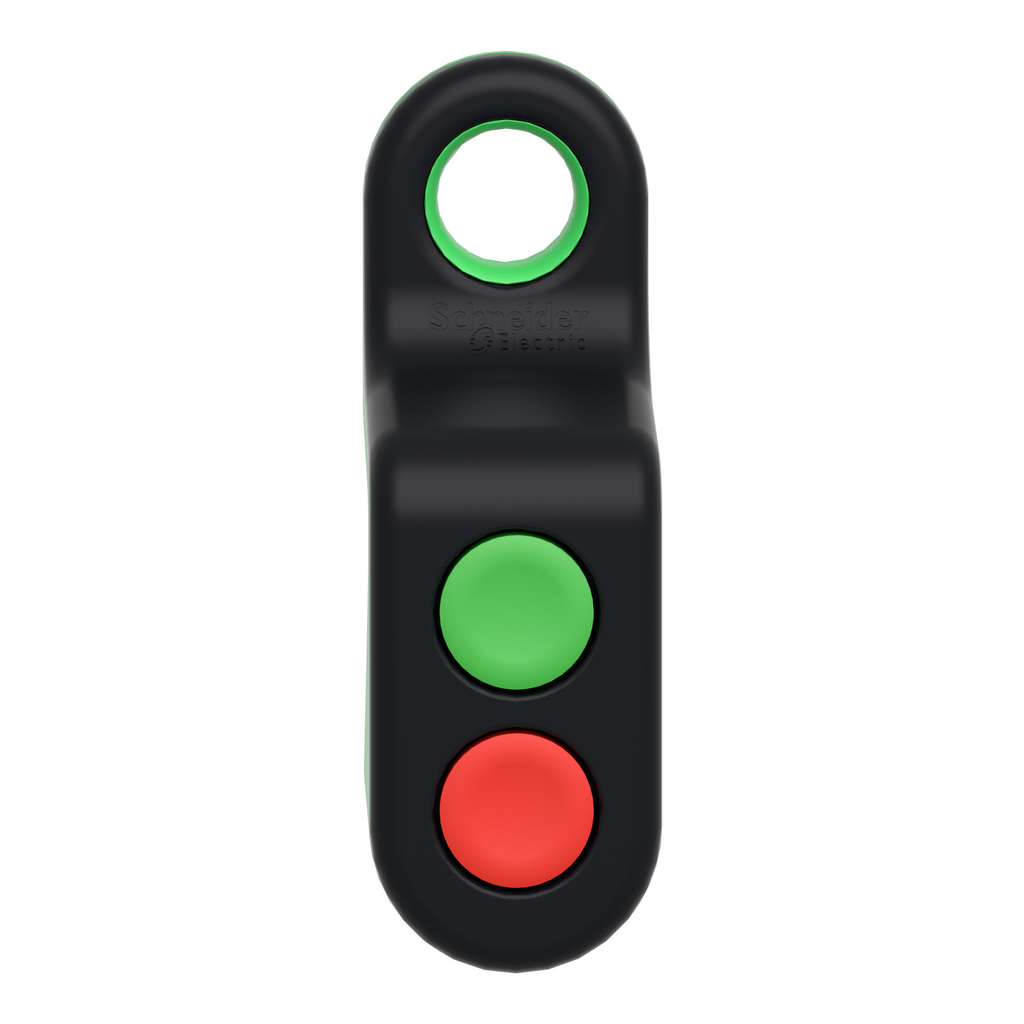

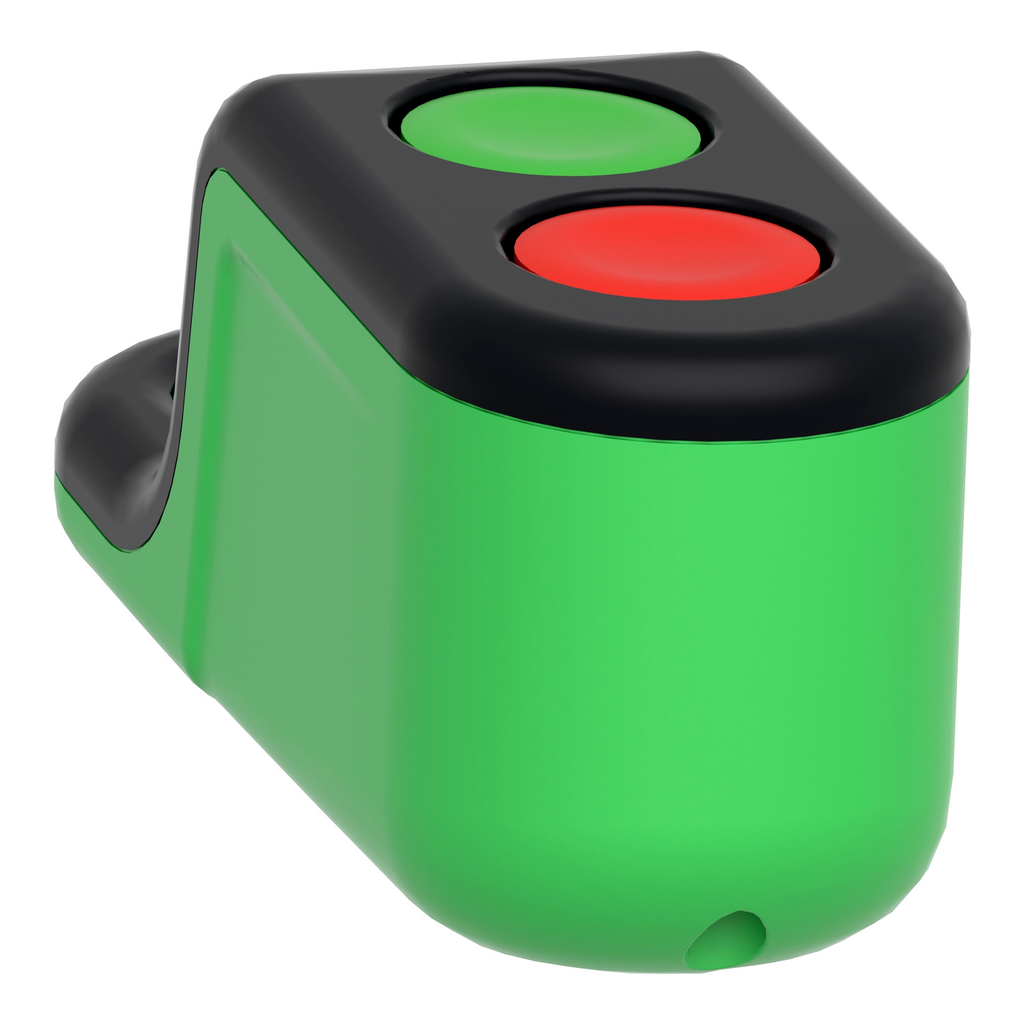

22mm push button, Harmony ZB, wireless and batteryless handy box, 2 simple action buttons, ZBRT1 transmitter

MOBILE HANDY BOX 2-HOLE

SQDZBRM22A0 ZBRM22A0 3606480891083
272.46 / EA
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • Operating Force: 25 N
Harmony XB4R-XB5R offer wireless and batteryless interfaces for use in various building utilities and industrial applications. They are based on a transmitter and a receiver, which communicate at a 2.4 GHz radio transmission. System is Zigbee Greenpower certified using an accessory. This plastic moble box has 2 pushbuttons, a ZBRT1 transmitter and a set of push button caps. The unit is 6.10 inches tall, 2.05 inches wide and 2.46 inches deep. The unit weighs 0.44 lbs. The mobile box is UL Listed and CSA certified. "The mobile box is made of polycarbonate with plastic fixing collar and bezel. Its dimensions are 52mm (width) x 62.5mm (depth) x 155mm (height). It weighs 0.2kg." "It is ideal for automotive and logistic centers conveying systems, bottle filling, palletizer and wrapping machines. It is also suitable for lighting and door opening." "This product is certified by C-Tick, CSA, BT 2006/95/EC, EAC, UL and CCC. It meets EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1 and UL 508 standards." "The handy box kit includes 1x set of caps, 1x handy box, 2x transmitter, 2x 22mm pushbutton head and 2x fixing collars." "Complete freedom to place or move the wireless pushbutton anywhere. Battery less devices for no maintenance, no recharge and no recycling." "Harmony universal wireless batteryless devices are compatible with the Ø 22mm Harmony XB4-XB5 actuators."
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Port Protocol : Zigbee green power 2.4 GHz
  • Physical Attributes
    • Cad Overall Depth : 65 mm
    • Cad Overall Height : 163 mm
    • Cad Overall Width : 65 mm
  • Complementary Attributes
    • Maximum Sensing Distance : 100 m in free field, 25 m transmitter in the handy box and receiver in a metal enclosure, 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electromagnetic Compatibility : electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
    • Kit Composition : 1 set of caps, 1 handy box, 2 transmitter, 2 push-button head 22 mm, 2 fixing collars
    • Radio Agreement : RSS UL 508, ARIB T66 CSA C22.2 No 14, ICASA, ANATEL, FCC
    • Shock Resistance : 25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
    • Carbon Footprint Of The Distribution Phase A4 : 0.0315552, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0998837333
    • Carbon Footprint Of The Installation Phase A5 : 0.00533632, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.8274133333
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • HTML Description : Wireless and battery less handy box, 2 simple action buttons
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : plastic
    • Contact Operation : 2 simple action push-button
    • Device Short Name : XB5R
    • Emission Power : 3 mW
    • Fixing Collar Material : plastic
    • Group Of Product : flush push wireless
    • Main Group : wireless push-button
    • Mechanical Robustness : free fall resistance 1000 mm IEC 60068-2-32
    • Mounting Diameter : 22 mm
    • Operating Force : 25 N C/O changing electrical state
    • Operating Travel : 4.3 mm total travel)
    • Package Weight Lbs : 206.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : wireless and batteryless transmitter
    • Product Repair Index : A
    • Range Of Product : Harmony XB5R
    • Response Time : < 2 ms
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
    • Type Of Operator : spring return push-button with transmitter
    • Relationship Type : Compatible relationship
    • Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
    • Pep Code : ENVPEP2009013_V1-EN
    • Pep Verification Date : 2020-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
    • Product Kit Identifier : N
    • Product Manager : SU-JIN NG
  • Environment Attributes Main
    • Directives : 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP65 IEC 60529 front face), IP65 UL Type 12 front face)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 1.9641885867
    • Environmental Disclosure : ENVPEP2009013_V1-EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 95-95 % 70-70 °C without condensation
    • Pep Code : ENVPEP2009013_V1-EN
    • Pep Verification Date : 2020-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : wireless and batteryless transmitter
    • Range Of Product : Harmony XB5R
