SQUARE D

22mm push button, Harmony XB2, illuminated mushroom push button, maintained, red 40mm mushroom, 10A, 600VAC

22mm push button, Harmony XB2,

SQDXB2BN4161 XB2BN4161 3389110675474
154.50 / EA
http://schema.org/OutOfStock

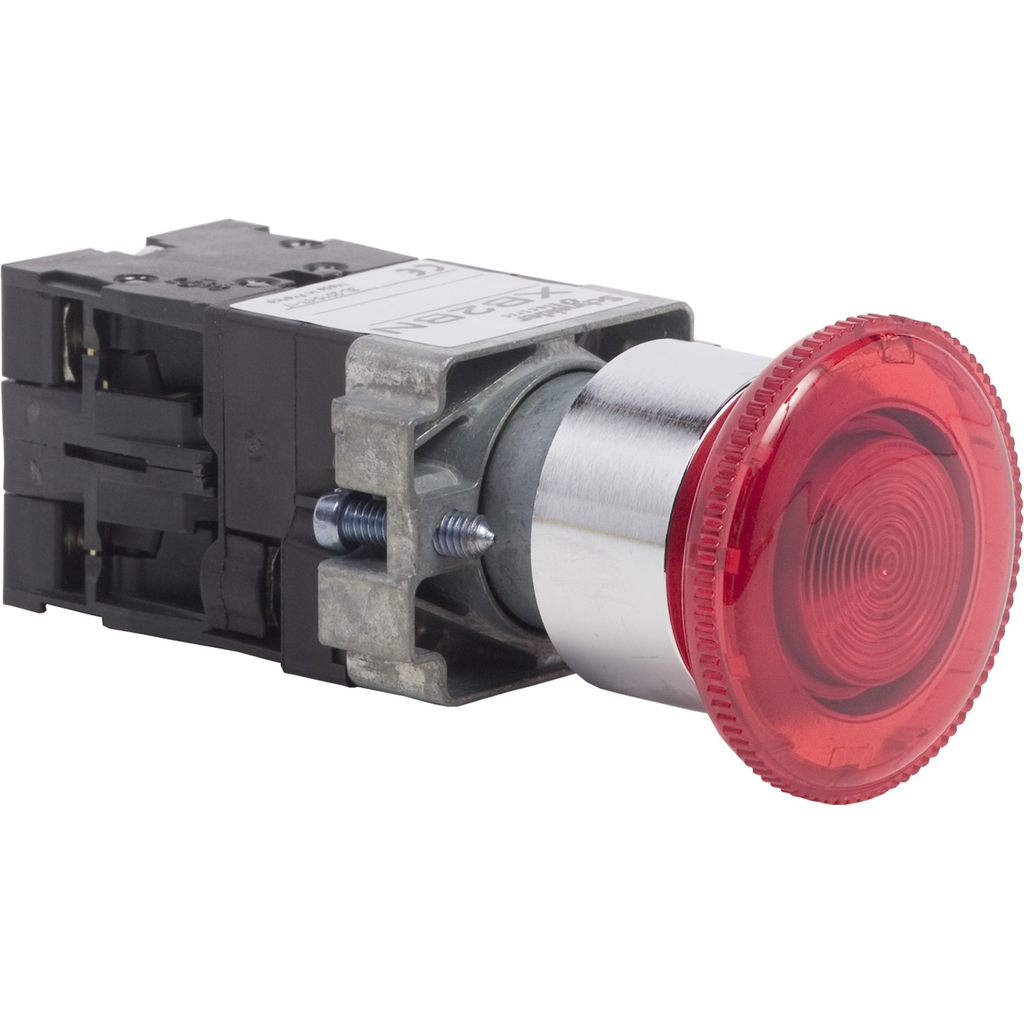

Mayer-DDS-22mm push button, Harmony XB2, illuminated mushroom push button, maintained, red 40mm mushroom, 10A, 600VAC-1
  • Bezel Material: Chromium Plated Metal
  • Warranty Length: 18 mth
XB2 22mm push buttons are for industrial applications. XB2 operators have chromium plated metal bezels that connect to a fully metal mounting collar. This is an illuminated mushroom push button with a red 40mm mushroom button. This maintained mushrrom button operator has one normally closed and one normally open contact. Contacts have an IEC thermal current rating of 10A and a maximum of 600V rating. The mushroom button is UL Listed and CSA certified. "The pushbutton is fitted with chromium plated bezel." "It is installed into a Ø 22mm panel cutout."
QTY
  • Product Description
  • Features
  • Specifications
XB2 22mm push buttons are for industrial applications. XB2 operators have chromium plated metal bezels that connect to a fully metal mounting collar. This is an illuminated mushroom push button with a red 40mm mushroom button. This maintained mushrrom button operator has one normally closed and one normally open contact. Contacts have an IEC thermal current rating of 10A and a maximum of 600V rating. The mushroom button is UL Listed and CSA certified. "The pushbutton is fitted with chromium plated bezel." "It is installed into a Ø 22mm panel cutout."
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UI Rated Insulation Voltage : 600 V 3)IEC 60947-1
  • Important Information Attributes
    • Terminals Description ISO N 1 : (21-22)NC, (13-14)NO
    • Carbon Footprint Of The Distribution Phase A4 : 0.0168688686, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0645828613
    • Carbon Footprint Of The Installation Phase A5 : 0.0003982993, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.5254956204
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.0458817143
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : chromium plated metal
    • Device Short Name : XB2B
    • Mounting Diameter : 22 mm
    • Operator Profile : red mushroom Ø 40 mm, unmarked
    • Package Weight Lbs : 126.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : push-button
    • Range Of Product : Harmony XB2
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Specificity Of Operator : mushroom button head
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
    • Type Of Operator : maintained
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • ITH Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Relationship Type : cross-selling relationship
    • Pep Code : ENVPEP2211045EN
    • Pep Verification Date : 2023-01-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.015W with 70% active mode for 10 years and product is conforming with standard EN 60947-5-1.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : SU-JIN NG
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 1.6532273639
    • Environmental Disclosure : ENVPEP2211045EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2211045EN
    • Pep Verification Date : 2023-01-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : push-button
    • Range Of Product : Harmony XB2
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete mechanism
