Push-to-test pilot light, Harmony XB5, plastic, blue, universal LED, screw clamp terminals, 24V

PUSH TO TEST PILOT LIGHT, HARM

SQDXB5AW26B5 XB5AW26B5 3606489420727
178.50 / EA
http://schema.org/OutOfStock

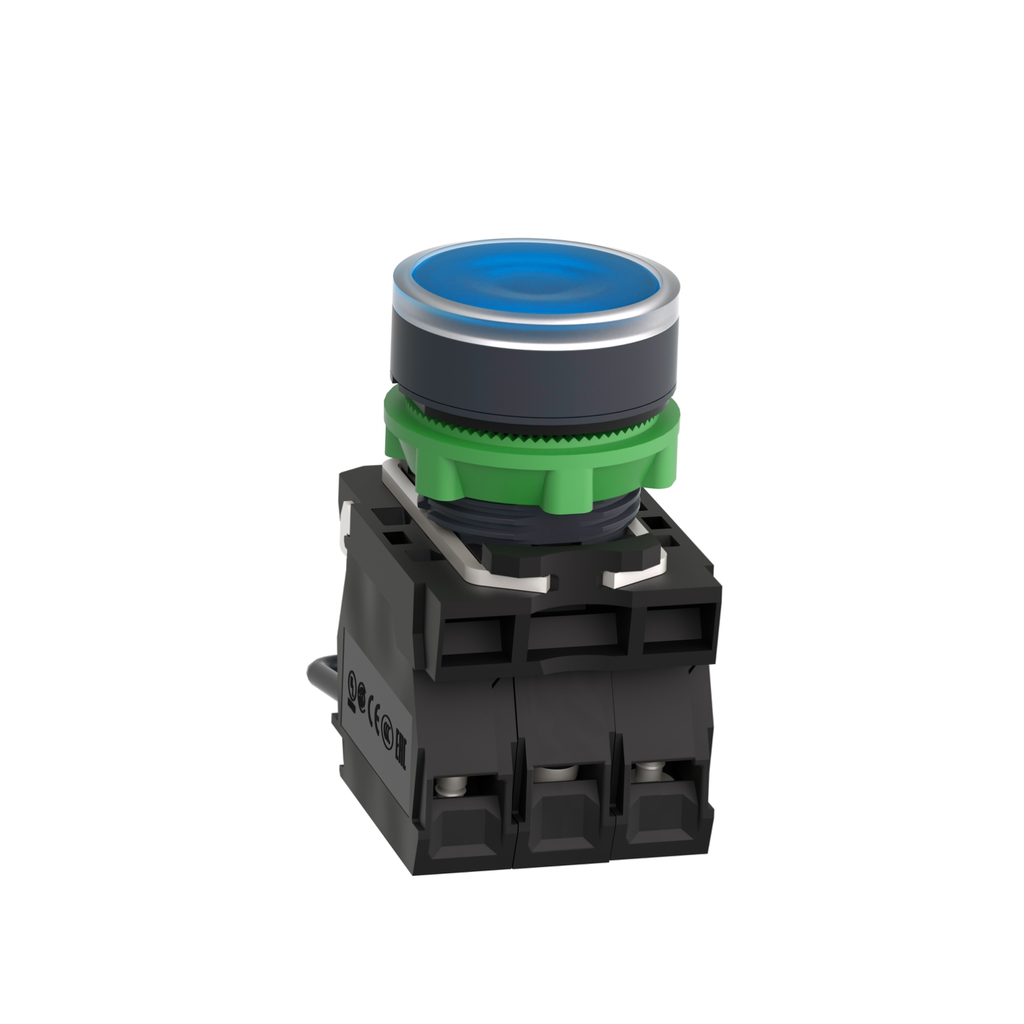

Mayer-DDS-Push-to-test pilot light, Harmony XB5, plastic, blue, universal LED, screw clamp terminals, 24V-2
  • Bezel Material: Plastic
This Harmony XB5, push-to-test pilot light blue is supplied with 24V AC/DC. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Specifications
This Harmony XB5, push-to-test pilot light blue is supplied with 24V AC/DC. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Physical Attributes
    • Embedding Depth : 46 mm
  • Complementary Attributes
    • UI Rated Insulation Voltage : 600 V 3)IEC 60947-1, 600 V 3)IEC 60947-1, 600 V 3)IEC 60947-1
    • UIMP Rated Impulse Withstand Voltage : 6 kV IEC 60947-1, 6 kV IEC 60947-1
    • US Rated Supply Voltage : 24 V AC/DC 50/60 Hz, 24 V AC/DC 50/60 Hz, 24 V AC/DC 50/60 Hz
  • Important Information Attributes
    • Electrical Shock Protection Class : class II conforming to IEC 60536, class II conforming to IEC 60536
    • Overvoltage Category : class II conforming to IEC 60536, class II conforming to IEC 60536
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2404014EN
    • Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
    • ROHS EUR In Scope : Yes
    • ROHS EUR Full Compliance Status : Under investigation
    • ROHS EUR Full Compliance Status Id : UNDER_INVESTIGATION
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : plastic
    • Compatibility Code : XB5
    • Device Short Name : XB5
    • Fixing Collar Material : plastic
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Mounting Diameter : 22.5 mm
    • Package Weight Lbs : 58.967 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : push-to-test pilot light
    • Product Repair Index : A
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Service Life : 1.5 year(s)
    • Shape Of Signaling Unit Head : round
    • Signalling Type : steady
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-1.2 N.m
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
    • Pep Code : ENVPEP2404014EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529, IP67, IP69, IP69K
    • Nema Degree Of Protection : NEMA 13, NEMA 4X
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Circularity Profile : ENVEOLI2404014EN
    • Environmental Disclosure : ENVPEP2404014EN
    • EU ROHS Directive : Under investigation
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Pep Code : ENVPEP2404014EN
  • General Attributes
    • Product Or Component Type : push-to-test pilot light
    • Range Of Product : Harmony XB5
  • Surge Protection And Filtering Attributes
    • Surge Withstand : 1 kV
