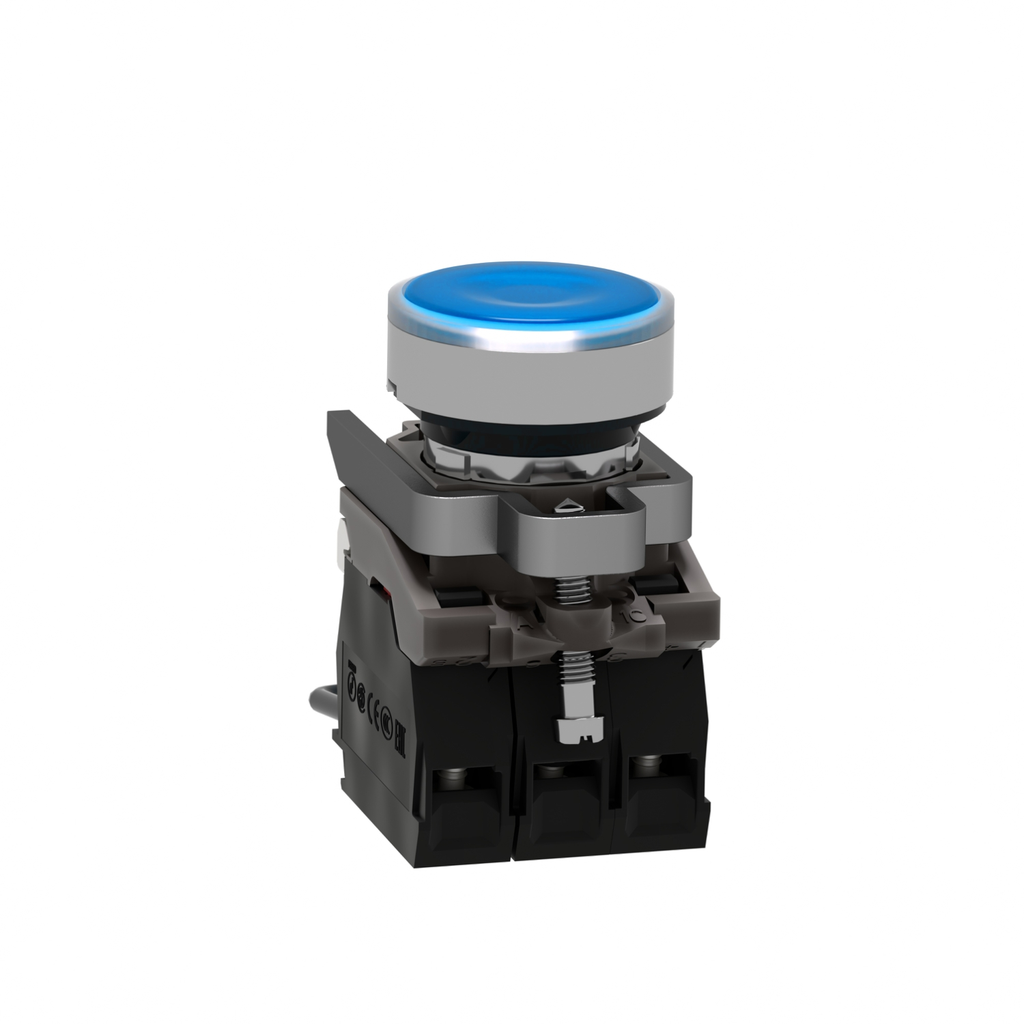

This Harmony XB4 plain lens push to test modular blue pilot light is supplied with 24V AC/DC, uses a universal LED. It has a metal bezel. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

• Physical Attributes
• Cap Operator Or Lens Color : blue, blue
• Embedding Depth : 43 mm
• Light Source Color : blue
• Conformance Attributes
• Product Certifications : CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
• Standards : CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, GB 14048.5, JIS C8201-5-1, UL 508, JIS C8201-1
• Complementary Attributes
• Us Rated Supply Voltage : 24 V, 24 V AC/DC 50/60 Hz
• Ui Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : 1, no
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-6, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-6
• Cap Operator Or Lens Color : blue, blue
• Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60068-2-27, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60068-2-27
• Carbon Footprint Of The Distribution Phase A4 : 0.01176881067961165, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.22408252427184466
• Carbon Footprint Of The Installation Phase A5 : 0.016671844660194175, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.7 kg CO2 eq., 0.6753385922330097
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.7 kg CO2 eq., 0.7042816901408449
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1808008EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 17 %
• Average Percentage Of Recycled Plastic Content : 28 %
• Bezel Material : metal
• Compatibility Code : XB4
• Current Consumption : 18 mA
• Device Short Name : XB4
• Fixing Collar Material : metal
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Light Source : universal LED
• Mounting Diameter : 22.5 mm
• Overvoltage Category : class II conforming to IEC 60536
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : push-to-test pilot light
• Product Repair Index : A
• Protective Treatment : TH
• Range Of Product : Harmony XB4
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Service Life : 1.5 year(s)
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Software Version : v5.9.4
• Supply Voltage : 24 V
• Sustainable Packaging : Yes
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
• Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Light Source Color : blue
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Warranty In Months : 18
• Pep Code : ENVPEP2308026_V2
• Database Version : 2022-01
• Pep Verification Date : 2024-02-18
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Product Weight In G2 : 90
• Reference Lifetime In Y2 : 10
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Offer Owner Code : 190786
• Height Nominal : 42 mm
• Width Nominal : 30 mm
• Environment Attributes Main
• Ip Degree Of Protection : IP66 IEC 60536, IP67, IP69, IP69K
• Nema Degree Of Protection : UL type 4X/13, NEMA 13 IEC 60529, NEMA 4X
• Take Back : No
• Recycled Metal Content At Cr Level : 17 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1.632143461985505
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI1808008EN
• Environmental Disclosure : ENVPEP2308026_V2
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308026_V2
• Pep Verification Date : 2024-02-18
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : push-to-test pilot light
• Range Of Product : Harmony XB4
• ETIM
• ETIM 8 : EC000272
• ETIM 9 : EC000272
• Surge Protection And Filtering Attributes
• Surge Withstand : 1 kV
• Specifications
• Country of Origin : France
• Depth : 55 mm
