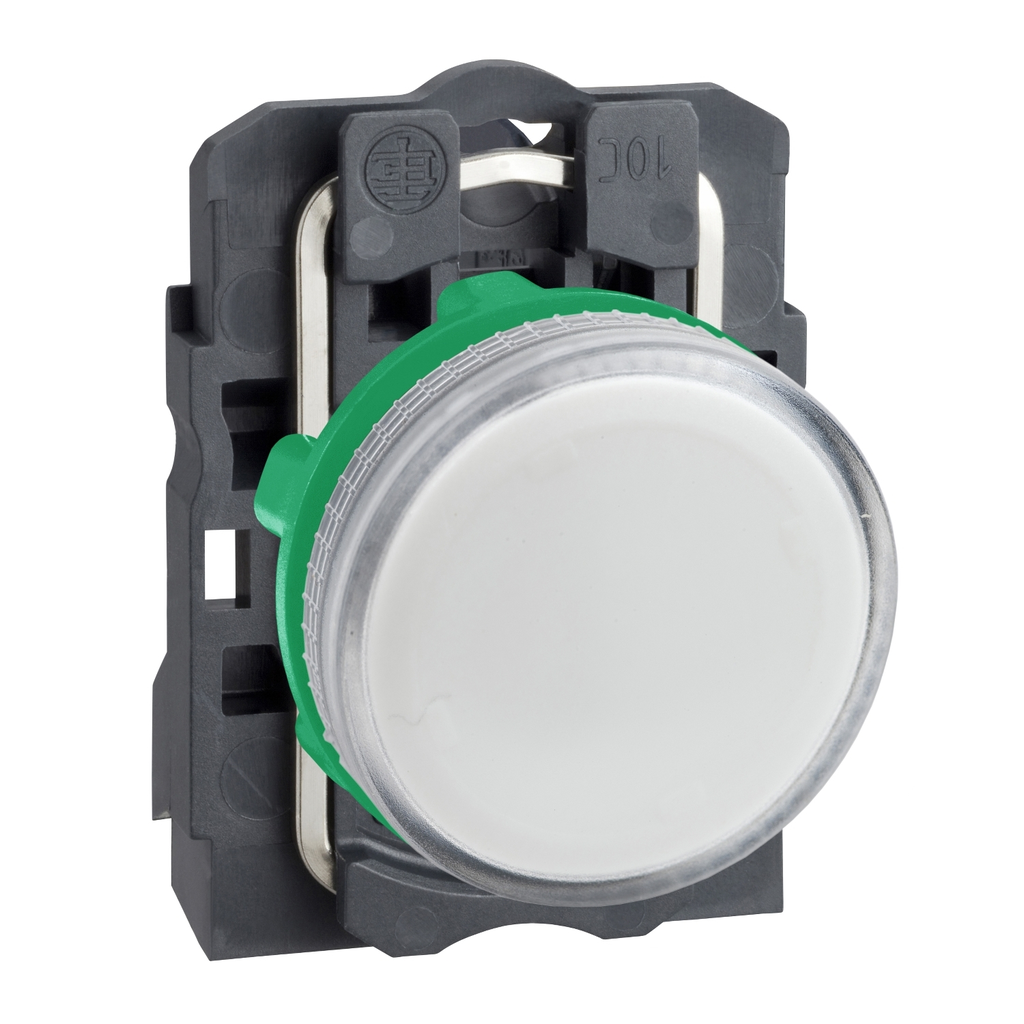

This Harmony XB5, plain lens modular white pilot light does not include bulb and is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• US Rated Supply Voltage : <= 250 V, <= 250 V
• UI Rated Insulation Voltage : 250 V 3)IEC 60947-1
• UIMP Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
• Important Information Attributes
• Customizable : no, 1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Carbon Footprint Of The Distribution Phase A4 : 0.0043153, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0572485833
• Carbon Footprint Of The Installation Phase A5 : 0.01282325, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.25179
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 102 kg CO2 eq., 101.5860719875
• Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308027EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Average Percentage Of Recycled Metal Content : 7 %
• Average Percentage Of Recycled Plastic Content : 21 %
• Bezel Material : dark grey plastic
• Bulb Base : BA 9s
• Compatibility Code : XB5
• Device Short Name : XB5
• Electrical Shock Protection Class : class II conforming to IEC 60536
• Fixing Collar Material : plastic
• GCR Bridge : XB5AVCUST02
• Head Type : standard
• Light Block Supply : direct <2.4 W
• Mounting Diameter : 22.5 mm
• Overvoltage Category : class II conforming to IEC 60536
• Package Weight Lbs : 35.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : pilot light
• Product Repair Index : A
• Range Of Product : Harmony XB5
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Sustainable Packaging : Yes
• Terminals Description ISO N 1 : (X1-X2)PL
• Total Lifecycle Carbon Footprint : 102 kg CO2 eq.
• Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Assembly relationship
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Pep Code : ENVPEP2308027_V1-EN
• Pep Verification Date : 2023-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Pilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton&nbsp;power consumption is 0.432W with 71% active mode for 10 years, and it product&nbsp;complies with IEC 60947-1 standards..
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Product Manager : SU-JIN NG
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653
• Nema Degree Of Protection : NEMA 13, NEMA 4X
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 7 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 101.9122491208
• Circularity Profile : ENVEOLI2308027EN
• Environmental Disclosure : ENVPEP2308027_V1-EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308027_V1-EN
• Pep Verification Date : 2023-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : pilot light
• Range Of Product : Harmony XB5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
