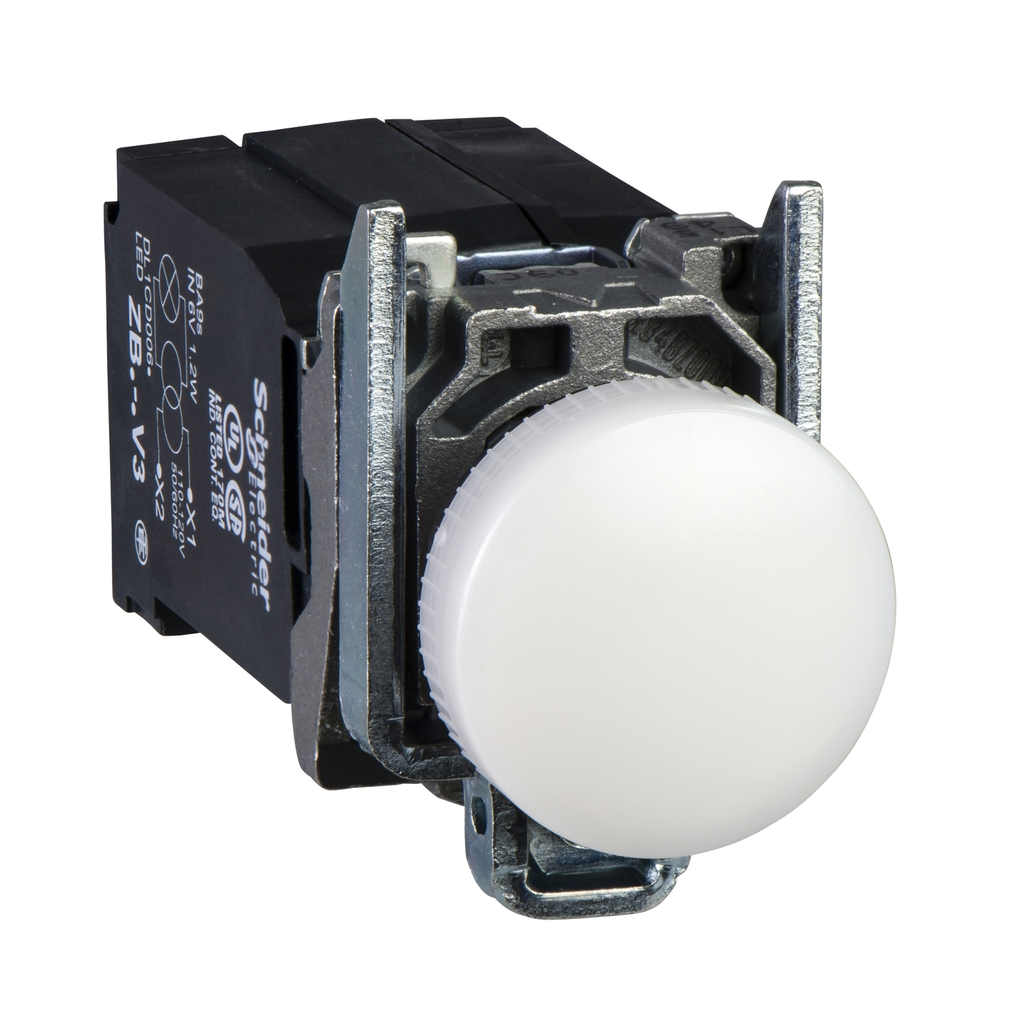

This Harmony XB4 plain lens modular white pilot light is supplied with 110V to 120V AC/DC, uses BA9s base. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.

• US Rated Supply Voltage
• 110...120 V AC 50/60 Hz
• Connections Terminals
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
• screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
• Light Block Supply
• via integral transformer 1.2 VA 6 V
• IP Degree Of Protection
• IP66 IEC 60529
• IP67
• IP69
• IP69K
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.015189902912621357
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.2 kg CO2 eq.
• 0.2041640776699029
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.6 kg CO2 eq.
• 0.615308495145631
• Electrical Shock Protection Class
• class I conforming to IEC 60536
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• UI Rated Insulation Voltage
• 600 V 3)IEC 60947-1
• Accessories
• ZBYLEG503001
• ZBY2101
• Vibration Resistance
• 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 17 kg CO2 eq.
• 16.72669014084507
• Customizable
• no
• 1
• Carbon Footprint Of The Distribution Phase A4
• 0.01072269417475728
• 0 kg CO2 eq.
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• UIMP Rated Impulse Withstand Voltage
• 6 kV IEC 60947-1

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=XB4BV31_CAD_2023
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-23
• Manufacturing Carbon Footprint : 0.615308495145631
• Distribution Carbon Footprint : 0.01072269417475728
• Installation Carbon Footprint : 0.015189902912621357
• Use Carbon Footprint : 16.72669014084507
• End Of Life Carbon Footprint : 0.2041640776699029
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308026EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : chromium plated metal
• Bulb Base : BA 9s
• Compatibility Code : XB4
• Device Short Name : XB4
• Fixing Collar Material : zamak
• GCR Bridge : XB4BVCUST01
• Head Type : standard
• Mounting Diameter : 22.5 mm
• Package Weight Lbs : 145.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : pilot light
• Product Repair Index : A
• Range Of Product : Harmony XB4
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Sustainable Packaging : Yes
• Terminals Description ISO N 1 : (X1-X2)PL
• Total Lifecycle Carbon Footprint : 18 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 17.57207531074798
• Relationship Type : Assembly relationship
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Pep Code : ENVPEP2308026EN
• Pep Verification Date : 2024-02-18
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 82
• Functional Unit Description : XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 35.95104
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; UE-27
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.10456876075652946
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0051714733009708734
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.0000689695631067961
• Acidification Ap Mole Of H Equiv Installation A5 : 0.00006029487864077669
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.09863140845070423
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.000636614563106796
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0016988131067961164
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.021642508270203746
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0022697281553398056
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0006751963592233009
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.01864943661971831
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.00004814713592233009
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0011682014563106796
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 17.550349518323532
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.613039563106796
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.01072269417475728
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.01451519417475728
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 16.707957746478872
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.20411432038834948
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.304922572815534
• Climate Change Total Kg Co2 Eq Total Life Cycle : 17.57207531074798
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.615308495145631
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.01072269417475728
• Climate Change Total Kg Co2 Eq Installation A5 : 0.015189902912621357
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 16.72669014084507
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.2041640776699029
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.3060868932038835
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0000533773205708601
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.00005241332524271844
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000042158349515
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000050686747573
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000095626197183099
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000000680490533981
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00005914150485436892
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 401.14100379461235
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 9.78158495145631
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.14939126213592233
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.15810873786407764
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 377.9528169014085
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 13.099101941747572
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -5.055041262135922
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 271.28951254003147
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 70.09606796116505
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.007215900485436892
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.1036643203883495
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 200.32957746478874
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.7529868932038835
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -8.253638349514564
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000076855402815876
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000006683995145631
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000057190024272
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000040112330097
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000069763450704225
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.0000000031065461165
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000010428131067961
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00003758537246256666
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00000455955825242718
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000000401690533981
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000010973470873786
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00003286464788732395
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000004741470873786
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000088331116504854
• Hazardous Waste Disposed Of Kg Total Life Cycle : 1.9947479621359223
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.919138349514563
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0001795640776699029
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.07543004854368932
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -4.4953713592233004
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000002977845594945
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000029036359223301
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000018919709
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000543080825243
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000197011267606
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000001985713592
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000066452839805825
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000032559049450602
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000023786966019417
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000002138667476
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000007866427184
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000008342873239437
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000419205097087
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000001105308252427
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.27758144848215505
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.004683453883495145
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.2694788732394366
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.0034191213592233006
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 18.331680056724668
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.47899344660194165
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00002608376213592233
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0007121361650485436
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 17.8506338028169
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0013145873786407764
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.02348643203883495
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.012146038894092711
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0008435749999999999
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.00003238900485436893
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0000159681067961165
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.011125971830985916
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.00012813495145631067
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0001807283980582524
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.07050298300970873
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.00834718203883495
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.06215580097087378
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.030701276032428552
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.006538902912621359
• Net Use Of Fresh Water M3 Distribution A4 : 0.00000094684126213592
• Net Use Of Fresh Water M3 Installation A5 : 0.0001510133495145631
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.014145633802816901
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.009864779126213592
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.003116398058252427
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 2.9396890706720904
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.3969735436893203
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0003758963592233009
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0494139563106796
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 2.4835140845070423
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.009411589805825243
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.32457669902912617
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000026923029688432
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000019417281553398
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000000001641592233
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000100539563107
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000007342028169014
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000006153881068
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000007388458737864
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.03951095132708874
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0028550728155339804
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.00008976611650485437
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00003218101941747573
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.0360906338028169
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.00044329757281553393
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.000725232281553398
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0005842470990120333
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.00013172742718446602
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00000026772402912621
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000663284466019417
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00044482746478873237
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000079163834951456
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00007733973300970873
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.16776311410843706
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.009154245145631066
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.00035534660194174757
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00012052208737864076
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.1569105633802817
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0012224368932038834
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0019989490291262135
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.27769538834951457
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.27769538834951457
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 473.9226784493368
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 9.934936893203883
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1495902912621359
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.1694533980582524
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 450.5676056338028
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 13.101092233009707
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -5.140126213592232
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 72.7826683923595
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.15338179611650482
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00019935752427184463
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.011344660194174756
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 72.61612676056338
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0016158179611650485
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.08508395631067961
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.27769538834951457
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.27769538834951457
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 400.8632586489813
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9.503839805825242
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.14939126213592233
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.15810873786407764
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 377.9528169014085
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 13.099101941747572
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -5.055041262135922
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1634128640776699
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1634128640776699
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.12202475728155339
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 72.61925552828183
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : -0.010031067961165048
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00019935752427184463
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.011344660194174756
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 72.61612676056338
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0016158179611650485
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.03694080097087379
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.00002264155339805825
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00002264155339805825
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 1.279482546087447
• Water Use M3 Eq Manufacturing A1 A3 : 0.2808400485436893
• Water Use M3 Eq Distribution A4 : 0.00004066662621359223
• Water Use M3 Eq Installation A5 : 0.0064861601941747565
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0.6075316901408451
• Water Use M3 Eq End Of Life C1 C4 : 0.38458398058252424
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.13384708737864076
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0
• General Attributes
• Product Or Component Type : pilot light
• Range Of Product : Harmony XB4
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=670124&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 17.57207531074798
• Circularity Profile : ENVEOLI2308026EN
• Environmental Disclosure : ENVPEP2308026EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308026EN
• Pep Verification Date : 2024-02-18
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : complete product
