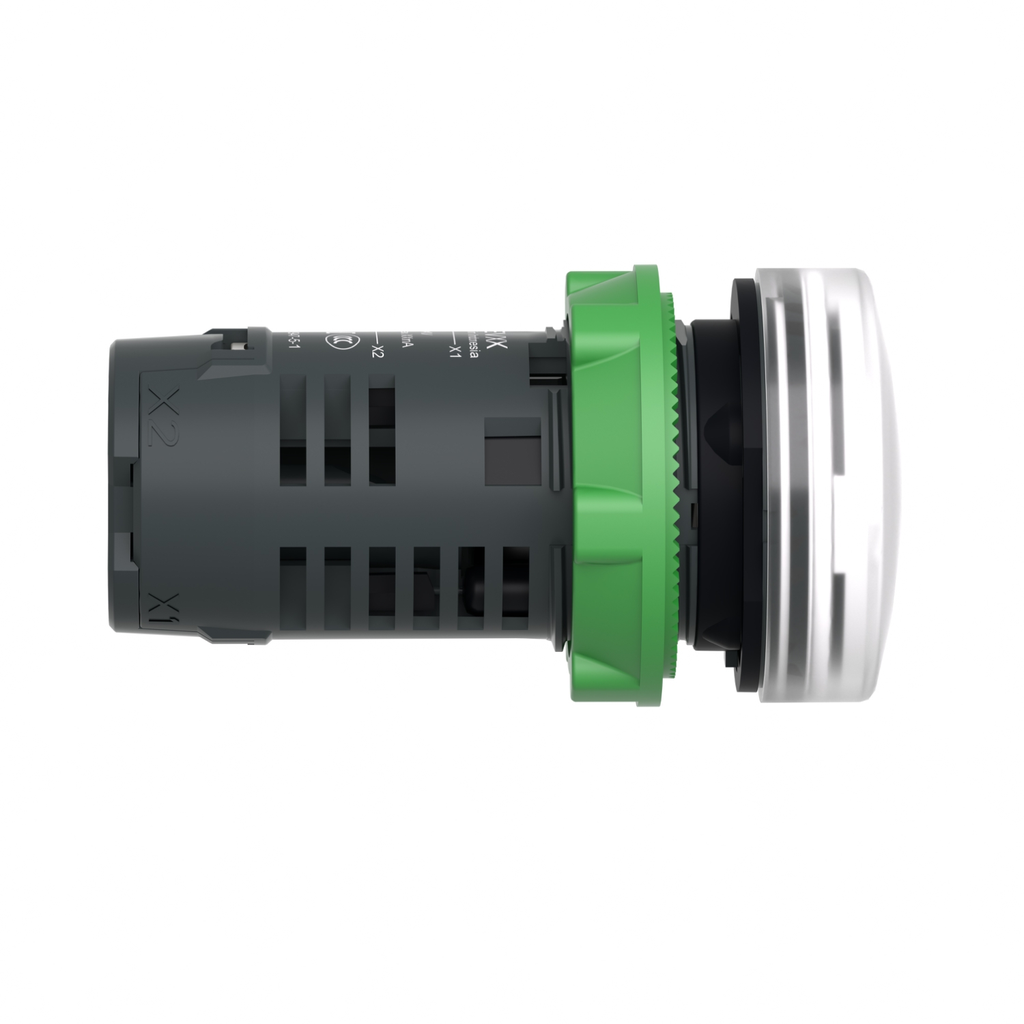

This Harmony XB5, plain lens monolithic white pilot light is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cap Operator Or Lens Color : white, white
• Light Source Color : white
• Conformance Attributes
• Product Certifications : CSA, UL Listed
• Standards : JIS C8201-5-1, UL 508, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1
• Complementary Attributes
• Us Rated Supply Voltage : 110...120 V, 110...120 V AC 50/60 Hz
• Ui Rated Insulation Voltage : 250 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : 0, no
• Electromagnetic Compatibility : electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011
• Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
• Shock Resistance : 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Terminals Description Iso N 1 : (X1-X2)PL, (X1-X2)PL, (X1-X2)PL, (X1-X2)PL
• Cap Operator Or Lens Color : white, white
• Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
• Carbon Footprint Of The Distribution Phase A4 : 0.0031384, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0416353333
• Carbon Footprint Of The Installation Phase A5 : 0.009326, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.18312
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 65 kg CO2 eq., 65.184396192
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Legacy Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308027EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Bezel Material : dark grey plastic
• Bulb Base : integral LED
• Compatibility Code : XB5
• Current Consumption : 14 mA
• Device Short Name : XB5
• Electromagnetic Emission : class B IEC 55011
• Fixing Collar Material : plastic
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Light Source : universal LED
• Mounting Diameter : 22.5 mm
• Operator Additional Information : with plain lens
• Overvoltage Category : class II conforming to IEC 60536
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : pilot light
• Product Repair Index : A
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
• Resistance To Fast Transients : 2 kV IEC 61000-4-4
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Service Life : 100000 h at rated voltage and 25 °C
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Software Version : v5.9.4
• Supply Voltage Limits : 100-132 V AC
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 65 kg CO2 eq.
• Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
• Light Source Color : white
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Warranty In Months : 18
• Supply Voltage 20 Supply Voltage : 110...120 V
• Pep Code : ENVPEP2308027EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Pilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton&nbsp;power consumption is 0.432W with 71% active mode for 10 years, and it product&nbsp;complies with IEC 60947-1 standards..
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Product Weight In G2 : 24
• Reference Lifetime In Y2 : 10
• Energy Consumption On Product Lifetime In Kwh : 128.1588
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Recyclability Potential In 2 : 22
• Offer Owner Code : 190786
• Height Nominal : 29 mm
• Width Nominal : 29 mm
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 2 : 0.9044
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 2 : 50.482
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D 2 : -0.5196
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2 : 0.9044
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 2 : 2.933
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2 : 0.9044
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C, -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 65.4216159253
• Circularity Profile : ENVEOLI2308027EN
• Environmental Disclosure : ENVPEP2308027EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308027EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : pilot light
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC000272
• ETIM 9 : EC000272
• Surge Protection And Filtering Attributes
• Surge Withstand : 1 kV IEC 61000-4-5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, Indonesia, India
• Depth : 54 mm
• Overview Attributes
• Device Presentation : monolithic product
