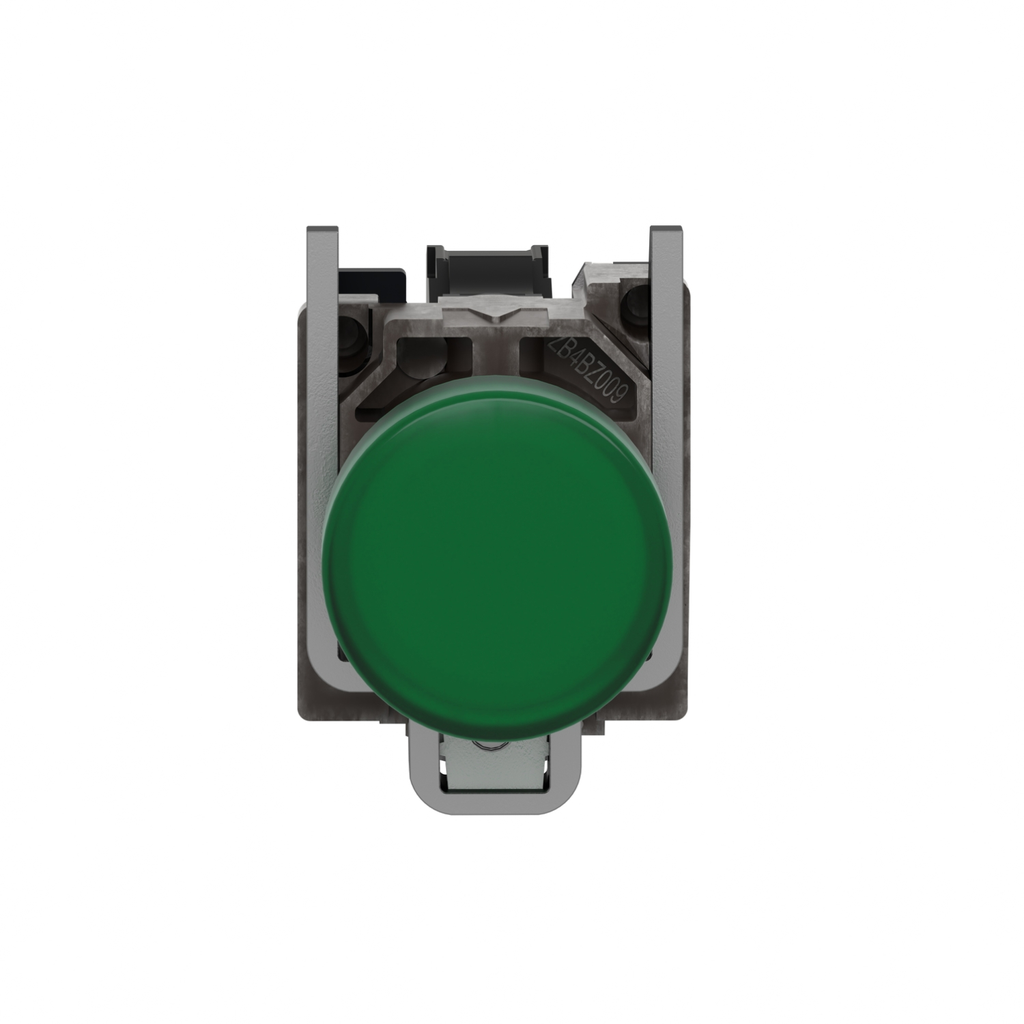

Pilot light, Harmony XB4,metal, green, 22mm, universal LED, plain lens, 24V AC DC

Pilot light, Harmony XB4,metal, green, 22mm, universal LED, plain lens, 24V AC DC

SQDXB4BVB3 XB4BVB3 3389110891928
33.45 / EA
http://schema.org/OutOfStock

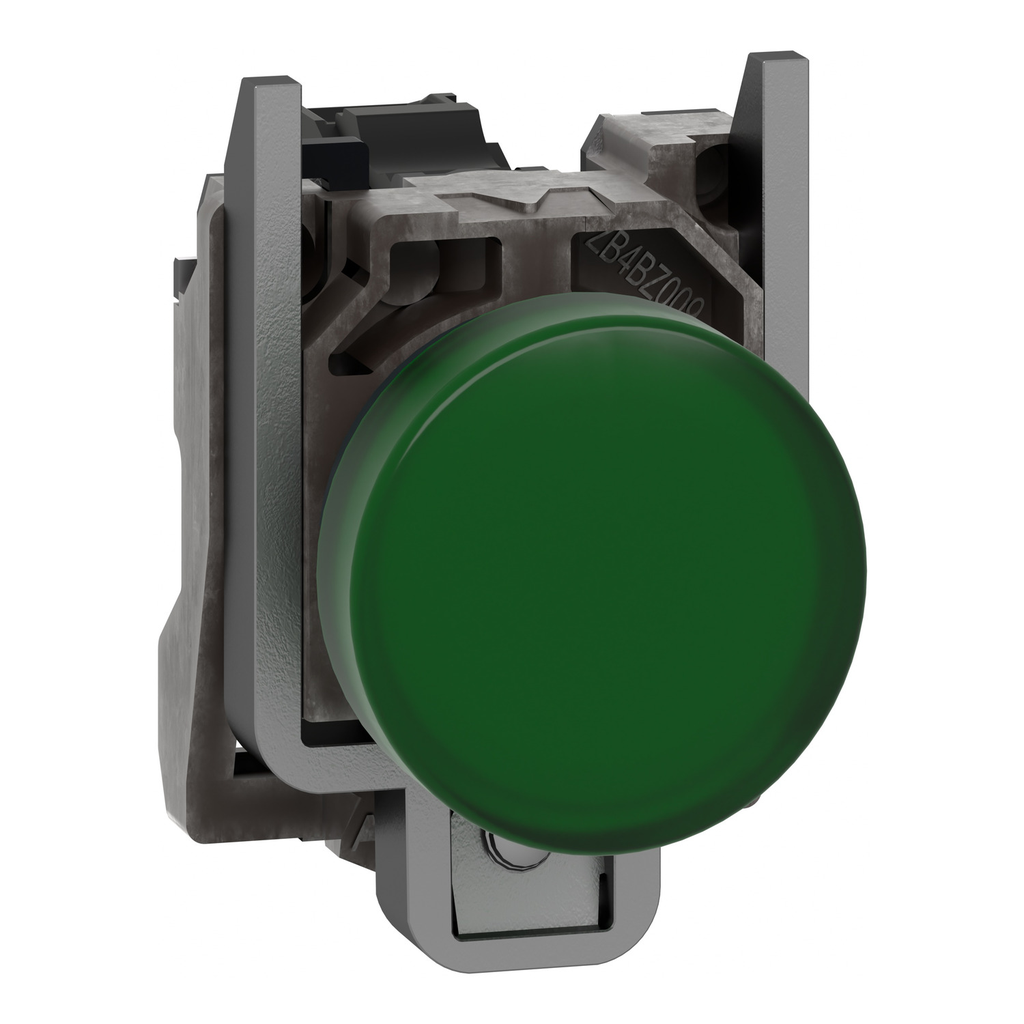

Mayer-DDS-Pilot light, Harmony XB4,metal, green, 22mm, universal LED, plain lens, 24V AC DC-1
  • Bezel Material: Chromium Plated Metal
  • Depth: 54 mm
  • Head Type: Standard
  • Light Source: Universal LED
  • Warranty Length: 18 mth
This Harmony XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses a universal LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : green, green
    • Light Source Color : green
  • Conformance Attributes
    • Product Certifications : CSA, UL Listed
    • Standards : IEC 60947-5-5, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-5-1, UL 508, CSA C22.2 No 14, IEC 60947-1, JIS C8201-1
  • Complementary Attributes
    • Us Rated Supply Voltage : 24 V, 24 V AC/DC 50/60 Hz
    • Ui Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Customizable : no, 1
    • Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Supply Voltage Limits : 19.2-30 V DC, 21.6-26.4 V AC
    • Terminals Description Iso N 1 : (X1-X2)PL, (X1-X2)PL
    • Cap Operator Or Lens Color : green, green
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.010775, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.20516, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.015264
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.61831
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 13 kg CO2 eq., 12.501
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-26
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Use Carbon Footprint : 12.501
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308026EN
    • Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Average Percentage Of Recycled Metal Content : 17 %
    • Average Percentage Of Recycled Plastic Content : 36 %
    • Bezel Material : chromium plated metal
    • Bulb Base : integral LED
    • Compatibility Code : XB4
    • Current Consumption : 18 mA
    • Device Short Name : XB4
    • Electrical Shock Protection Class : class I conforming to IEC 60536
    • Electromagnetic Emission : class B IEC 55011
    • Fixing Collar Material : zamak
    • Gcr Bridge : XB4BVCUST03
    • Head Type : standard
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Light Source : universal LED
    • Mounting Diameter : 22.5 mm
    • Operator Additional Information : with plain lens
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : pilot light
    • Product Repair Index : A
    • Protective Treatment : TH
    • Range Of Product : Harmony XB4
    • Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Service Life : 100000 h at rated voltage and 25 °C
    • Shape Of Signaling Unit Head : round
    • Signalling Type : steady
    • Software Version : v5.9.4
    • Supply Voltage : 24 V
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 13 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Light Source Color : green
    • Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
    • Warranty In Months : 18
    • Connections Terminals 8 Connections Terminals : screw clamp terminals
    • Pep Code : ENVPEP2308026_V2
    • Database Version : 2022-01
    • Pep Verification Date : 2024-02-18
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional Unit Description : XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Product Weight In G2 : 82.4
    • Reference Lifetime In Y2 : 10
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27
    • Recyclability Potential In 2 : 1
    • Offer Owner Code : 190786
    • Height Nominal : 47 mm
    • Width Nominal : 30 mm
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 2 : 12.487
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 2 : 12.501
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 2 : 9.8293
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2 : 282.47
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 2 : 13.163
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D 2 : -5.0797
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 2 : 70.438
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 2 : 149.72
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D 2 : -8.2939
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2 : 1.9285
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D 2 : -4.5173
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 2 : 13.341
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 2 : 1.8561
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 2 : 9.9834
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2 : 336.74
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 2 : 13.165
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D 2 : -5.1652
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 2 : 0.0114
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 54.271
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 305.4922
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 9.5502
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 282.47
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2 : 13.163
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D 2 : -5.0797
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 2 : 0.0114
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 54.271
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D 2 : -0.1345
  • Environment Attributes Main
    • Ip Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K
    • Nema Degree Of Protection : NEMA 13, NEMA 4X, UL type 4X/13
    • Take Back : No
    • Recycled Metal Content At Cr Level : 17 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 13.350508999999999
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2308026EN
    • Environmental Disclosure : ENVPEP2308026_V2
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308026_V2
    • Pep Verification Date : 2024-02-18
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony XB4
  • ETIM
    • ETIM 8 : EC000272
    • ETIM 9 : EC000272
  • Surge Protection And Filtering Attributes
    • Surge Withstand : 1 kV IEC 61000-4-5
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France, Mexico, United States
    • Depth : 54 mm
  • Overview Attributes
    • Device Presentation : complete product
