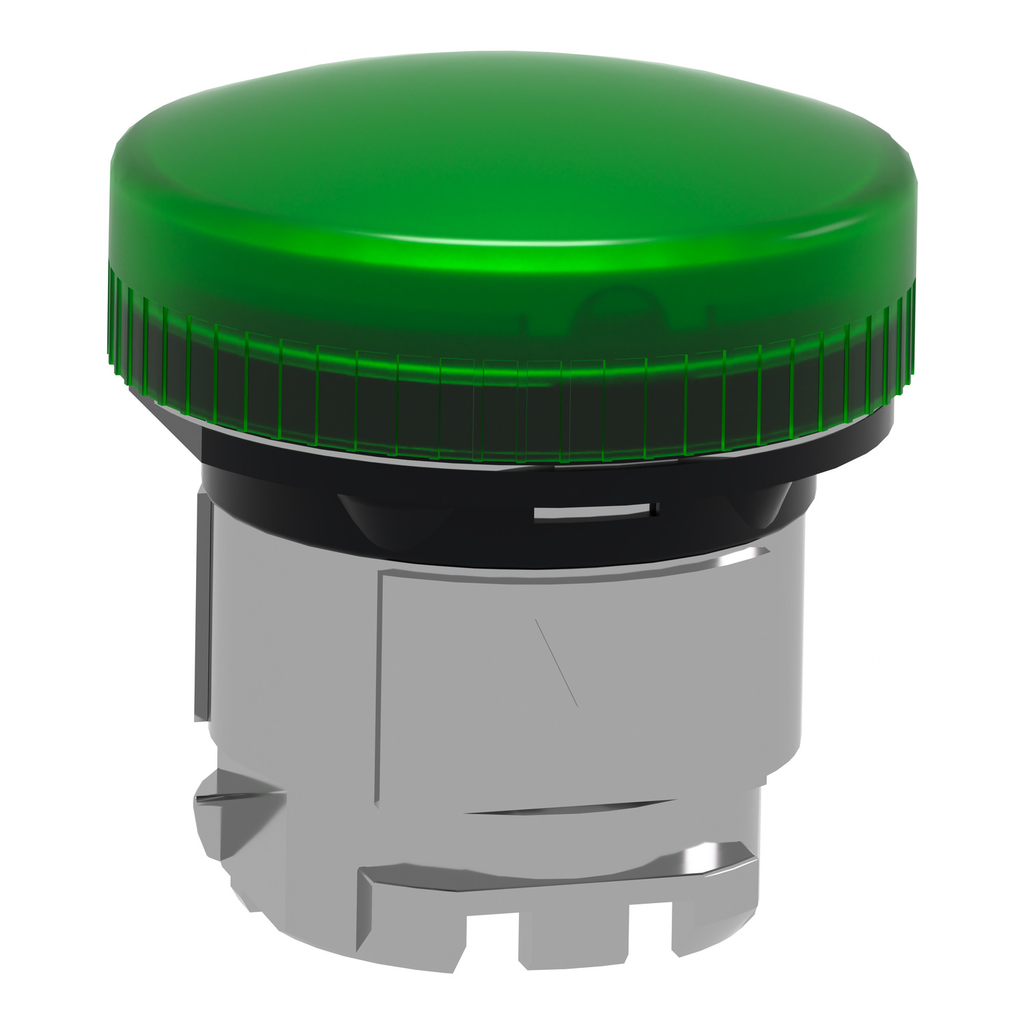

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be

• Cap Operator Or Lens Color
• green
• Overvoltage Category
• class I conforming to IEC 60536
• Electrical Composition Code
• P3 front mounting BA 9s
• P4 front mounting BA 9s and transformer
• Carbon Footprint Of The Installation Phase A5
• 0.0050015534
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0322492718
• Standards
• JIS C8201-5-1
• IEC 60947-5-4
• CSA C22.2 No 14
• IEC 60947-5-1
• IEC 60947-1
• UL 508
• IEC 60947-5-5
• JIS C8201-1
• Ip Degree Of Protection
• IP66 IEC 60529
• IP67
• IP69
• IP69K
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.2 kg CO2 eq.
• 0.2026146845
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Accessories
• ZB4BZ009
• ZBYLEG201001
• ZBYP2101
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Customizable
• no
• 1
• Carbon Footprint Of The Distribution Phase A4
• 0.0035306432
• 0 kg CO2 eq.
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac

• Physical Attributes
• Cad Overall Depth : 31 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-05-19
• Manufacturing Carbon Footprint : 0.2026146845
• Distribution Carbon Footprint : 0.0035306432
• Installation Carbon Footprint : 0.0050015534
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 0.0322492718
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308026EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : chromium plated metal
• Compatibility Code : ZB4
• Device Short Name : ZB4
• Gcr Bridge : ZB4BVCUST01
• Group Of Product : lens fitted BA9s
• Head Type : standard
• Main Group : pilot light
• Mounting Diameter : 22 mm
• Operator Additional Information : with plain lens
• Package Weight Lbs : 24.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for pilot light
• Protective Treatment : TH
• Range Of Product : Harmony XB4
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.2433961529
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : head for pilot light
• Range Of Product : Harmony XB4
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=657022&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.2433961529
• Ambient Air Temperature For Operation : -40-55 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2308026EN
• Environmental Disclosure : ENVPEP2308026EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : BA 9s
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : basic element
