Complete pilot light, Harmony XB4 - ATEX D, green, integral LED, 24...254V

COMPLETE PILOT LIGHT, HARMONY

SQDXB4BVBM3GEX XB4BVBM3GEX 3606489486075
172.56 / EA
http://schema.org/OutOfStock

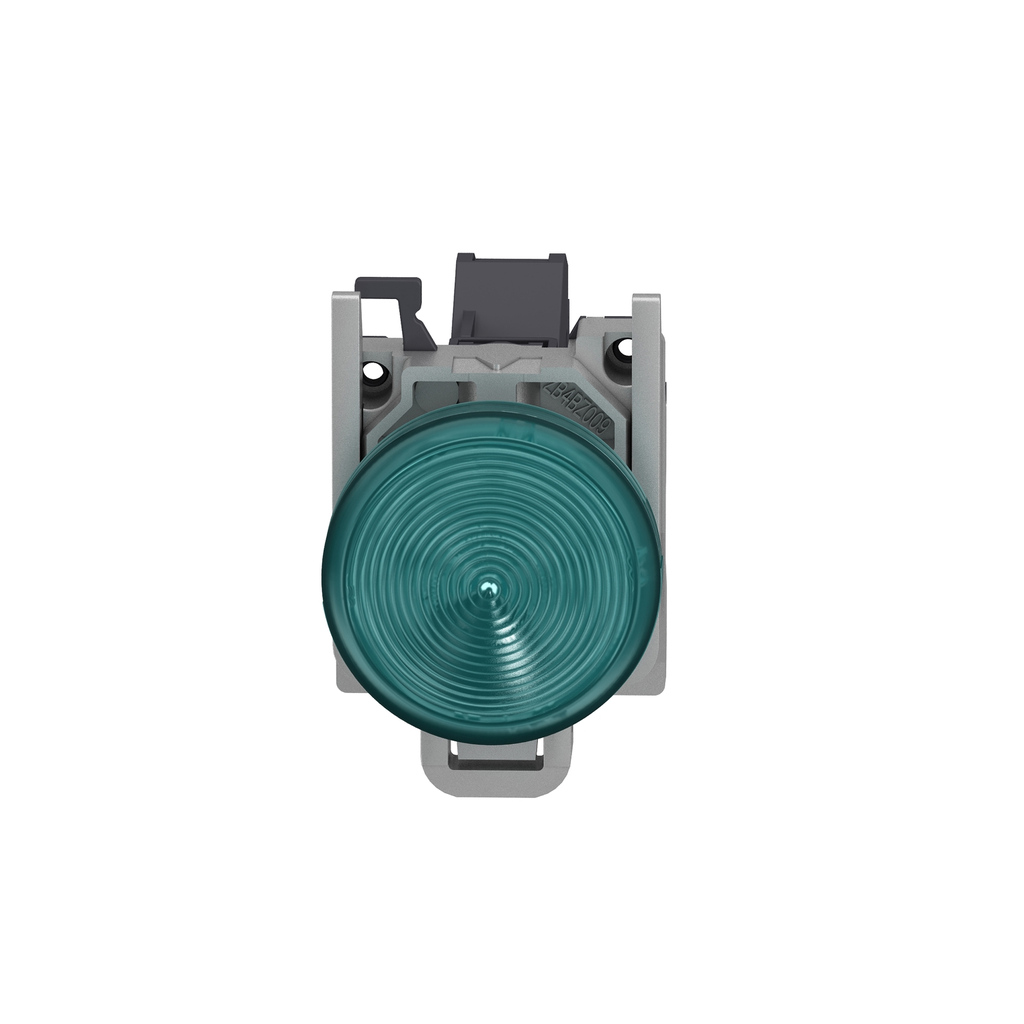

Mayer-DDS-Complete pilot light, Harmony XB4 - ATEX D, green, integral LED, 24...254V-2
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Depth: 69 mm
  • Height: 30 mm
  • Light Source: Integral LED
  • Net Weight: 0.083 kg
  • Weight: 0.083 kg
  • Width: 46.2 mm
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete pilot light has a circular head shape and comes with integral green LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This complete pilot light with plain lens provides clear visual feedback on the status of machines. This pilot light has a 24V to 254V AC/DC rating. It weighs 83g. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete pilot light has a circular head shape and comes with integral green LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This complete pilot light with plain lens provides clear visual feedback on the status of machines. This pilot light has a 24V to 254V AC/DC rating. It weighs 83g. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2308026EN
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Scip Number : 3d14fd98-3859-4733-a5ee-a3016769973c
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2308026EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 14.46875
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.7804417476
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 15 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.1242194175
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 15.4062759223
  • Environment
    • Product Certifications : INERIS 04ATEX9003U
    • Ambient Air Temperature For Operation : -20-75 °C
    • Standards : IEC 60079-0:2009 || IEC 60079-7:2009 || EN/IEC 60079-18:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-18 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
    • Ip Degree Of Protection : IP65 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : I conforming to IEC 60536
    • Protective Treatment : TH
  • Specifications
    • Country of Origin : France
    • Width : 46.2 mm
    • Height : 30 mm
    • Weight : 0.083 kg
    • Operator Additional Information : with plain lens
    • Range Of Product : Harmony XB4
    • Dust Zone : zone 21 - 22
    • Mounting Diameter : 22 mm
    • Product Or Component Type : complete pilot light
    • Fixing Collar Material : zamak
    • Gas Zone : zone 1 - 2
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Device Short Name : XB4
  • Complementary
    • [Us] Rated Supply Voltage : 24...254 V AC/DC
    • Height : 30 mm
    • Embedding Depth : 58 mm
    • Fixing Center : >= 30 x 40 mm support panel) 1-6 mm
    • Light Source : integral LED
    • Shape Of Signaling Unit Head : round
    • Marking : Ex tb IIIC Db || II 2 GD || Ex eb mb IIC Gb
    • Cap/Operator Or Lens Colour : green
    • Net Weight : 0.083 kg
    • Connections - Terminals : screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
    • Service Life : 100000 h
    • Signalling Type : steady
    • Light Source Colour : green
    • Width : 46.2 mm
    • Depth : 69 mm
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Device Mounting : fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
