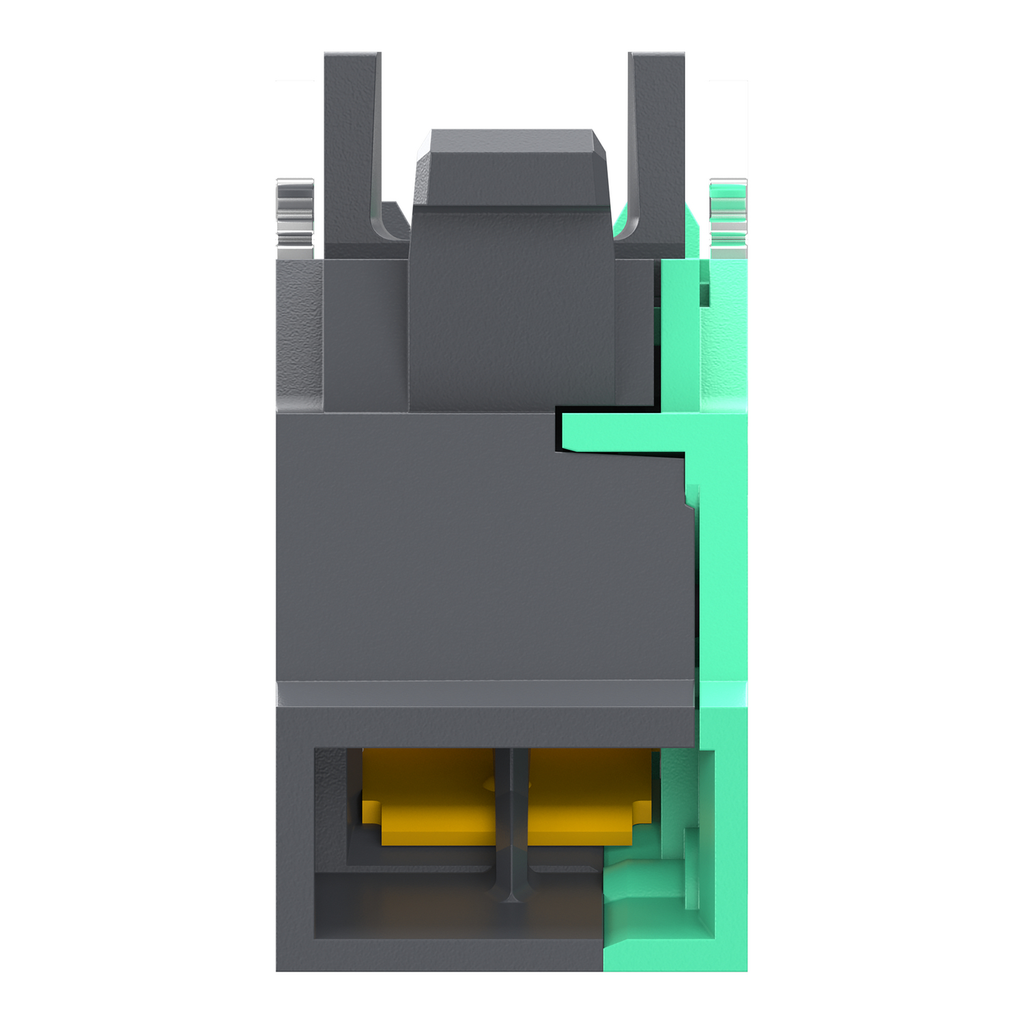

This Harmony XB4 and Harmony XB5 single contact block uses push-in terminal connections. It features 1 normally open (NO) contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. Compact, it is easily installed and replaced on XB4 or XB5 push-button units and selector switches via a clip assembly and connects to control circuits with push-in terminal connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO contact block types. Vibration resistant push-in connection terminals ensure high vibration resistance making product suitable installation on high impact machine. This contact block is sold by 5. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : EAC || IECEE CB Scheme || CCC || UL || CSA
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : IEC 60947-1 || IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 60947-1 || UL 60947-5-1 || UL 60947-5-5 || UL 1059 || UL 486E || CSA C22.2 No 60947-1 || CSA C22.2 No 60947-5-1 || CSA C22.2 No 158 || CSA C22.2 No 65 || IACS E10
• Shock Resistance : 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 || 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• Ambient Air Temperature For Storage : -40-70 °C
• Protective Treatment : TH
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2404035EN
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI2404035EN
• Take-Back : No
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.1248650117
• Complementary
• Mounting Of Block : front mounting
• Contacts Type And Composition : 1 NO
• Operating Force : 2.45 N NO changing electrical state
• Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Operating Travel : 2.05 mm NO changing electrical state) || 4.3 mm total travel)
• Contacts Material : silver alloy (Ag/Ni)
• Positive Opening : without
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Net Weight : 0.005 kg
• [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
• Cad Overall Height : 14.8 mm
• Device Presentation : basic element
• [Ui] Rated Insulation Voltage : 300 V 3)IEC 60947-1
• [Ie] Rated Operational Current : 6 A 120 V, AC-15, A300 IEC 60947-5-1 || 3 A 240 V, AC-15, A300 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
• Mechanical Durability : 10000000 cycles
• Cad Overall Width : 34.3 mm
• Cad Overall Depth : 9.8 mm
• Specifications
• Country of Origin : United States
• Width : 34.3 mm
• Height : 14.8 mm
• Weight : 0.005 kg
• Contacts Usage : standard contacts
• Range Of Product : Harmony XB5 || Harmony XB4
• Contact Block Type : single
• Product Or Component Type : contact block
• Ip Degree Of Protection : IP20 IEC 60529
• Connections - Terminals : push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1 || push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
• Sale Per Indivisible Quantity : 5
• Contact Operation : slow-break
• Device Short Name : ZBE
