SQUARE D

Complete body contact assembly, Harmony XB4, for push buttons or selector switches, single contact block with body fixing collar 2NC faston connector

HARMONY COMPLETE BODY/CONTACT,

SQDZB4BZ1043 ZB4BZ1043 3389110801866
35.75 / EA
http://schema.org/OutOfStock

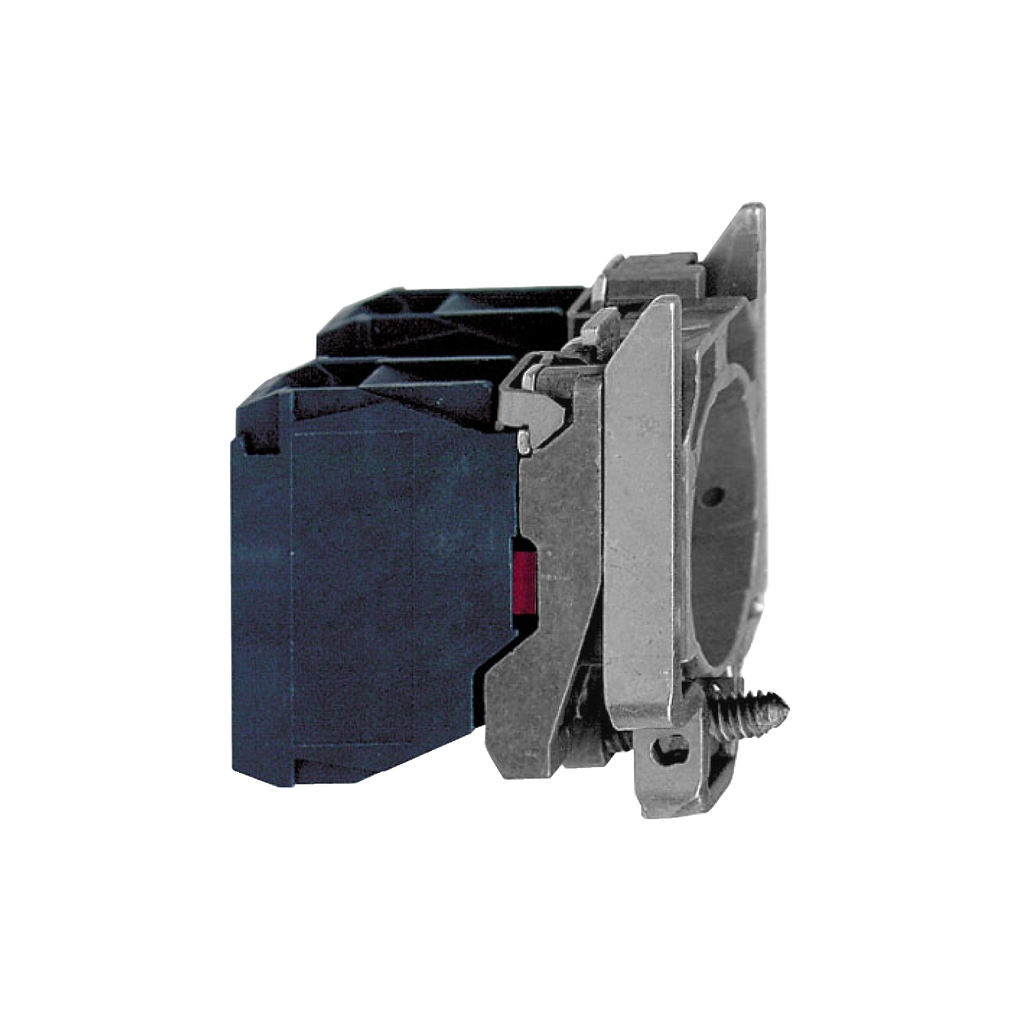

Mayer-DDS-Complete body contact assembly, Harmony XB4, for push buttons or selector switches, single contact block with body fixing collar 2NC faston connector-1
  • Country of Origin: France
  • Head Type: Standard
  • Height: 47 mm
  • IsSustainable: No
  • Net Weight: 0.062 kg
  • Warranty Length: 18 mth
  • Weight: 0.062 kg
  • Width: 30 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : BV || UL || CSA || DNV || LROS (Lloyds register of shipping)
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP20 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2308035EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2308035EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.5906106217
  • Complementary
    • Contacts Usage : standard contacts
    • Terminals Description Iso N°1 : (11-12)NC
    • Operating Travel : 1.5 mm NC changing electrical state) || 4.3 mm total travel)
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Net Weight : 0.062 kg
    • Cad Overall Height : 47 mm
    • Electrical Durability : 10000000 cycles
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • Mechanical Durability : 5000000 cycles
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
    • Cad Overall Width : 30 mm
    • Cad Overall Depth : 37 mm
  • Specifications
    • Country of Origin : France
    • Width : 30 mm
    • Height : 47 mm
    • Weight : 0.062 kg
    • Range Of Product : Harmony XB4
    • Contact Block Type : single
    • Product Or Component Type : complete body/contact assembly
    • Fixing Collar Material : zamak
    • Head Type : standard
    • Connections - Terminals : Faston connector 1 x 6.35 mm || Faston connector 2 x 2.8 mm
    • Contacts Type And Composition : 2 NC
    • Sale Per Indivisible Quantity : 1
    • Contact Operation : slow-break
    • Device Composition : body || fixing collar
    • Device Short Name : ZB4
