Complete body contact assembly, Harmony XB4, for push buttons or selector switches, single contact block with body fixing collar 1NO faston connector

Complete body contact assembly, Harmony XB4, for push buttons or selector switches, single contact block with body fixing collar 1NO faston connector

SQDZB4BZ1013 ZB4BZ1013 3389110801835
21.08 / EA
http://schema.org/OutOfStock

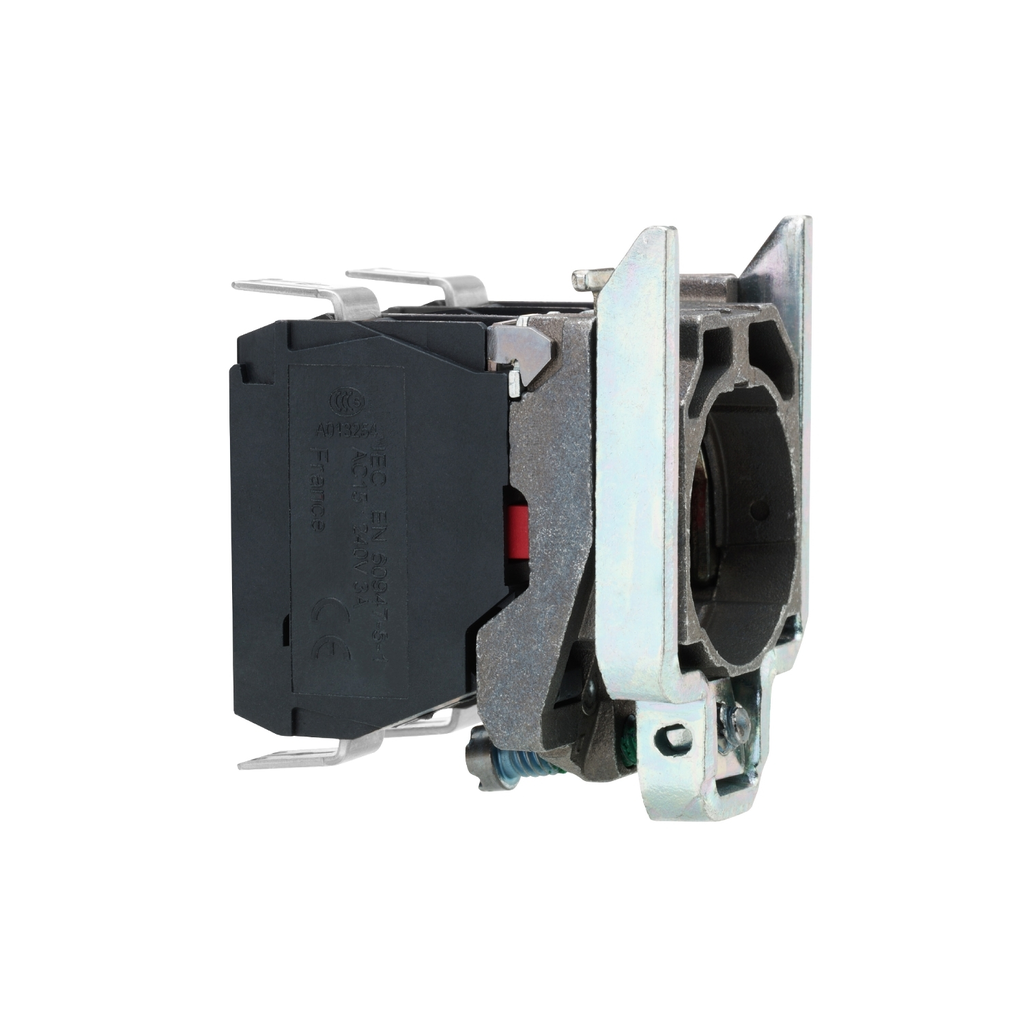

Mayer-DDS-Complete body contact assembly, Harmony XB4, for push buttons or selector switches, single contact block with body fixing collar 1NO faston connector-1
  • Country of Origin: France
  • Head Type: Standard
  • Height: 47 mm
  • Net Weight: 0.053 kg
  • Operating Force: 2.3 N
  • Warranty Length: 18 mth
  • Weight: 0.053 kg
  • Width: 30 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : BV || UL || CSA || DNV || LROS (Lloyds register of shipping)
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-5-1 || UL 508 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-5 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP20 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2308035EN
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI2308035EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0.026093662
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.3756650059
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.0670390273
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.4863587391
  • Complementary
    • Contacts Usage : standard contacts
    • Terminals Description Iso N°1 : (13-14)NO
    • Operating Force : 2.3 N NO changing electrical state
    • Operating Travel : 2.6 mm NO changing electrical state) || 4.3 mm total travel)
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : without
    • Net Weight : 0.053 kg
    • Cad Overall Height : 47 mm
    • Electrical Durability : 10000000 cycles
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • Operating Torque : 0.05 N.m NO changing electrical state
    • Mechanical Durability : 5000000 cycles
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
    • Cad Overall Width : 30 mm
    • Cad Overall Depth : 37 mm
  • Specifications
    • Country of Origin : France
    • Width : 30 mm
    • Height : 47 mm
    • Weight : 0.053 kg
    • Range Of Product : Harmony XB4
    • Contact Block Type : single
    • Product Or Component Type : complete body/contact assembly
    • Fixing Collar Material : zamak
    • Head Type : standard
    • Connections - Terminals : Faston connector 1 x 6.35 mm || Faston connector 2 x 2.8 mm
    • Contacts Type And Composition : 1 NO
    • Sale Per Indivisible Quantity : 1
    • Contact Operation : slow-break
    • Device Composition : body || fixing collar
    • Device Short Name : ZB4
