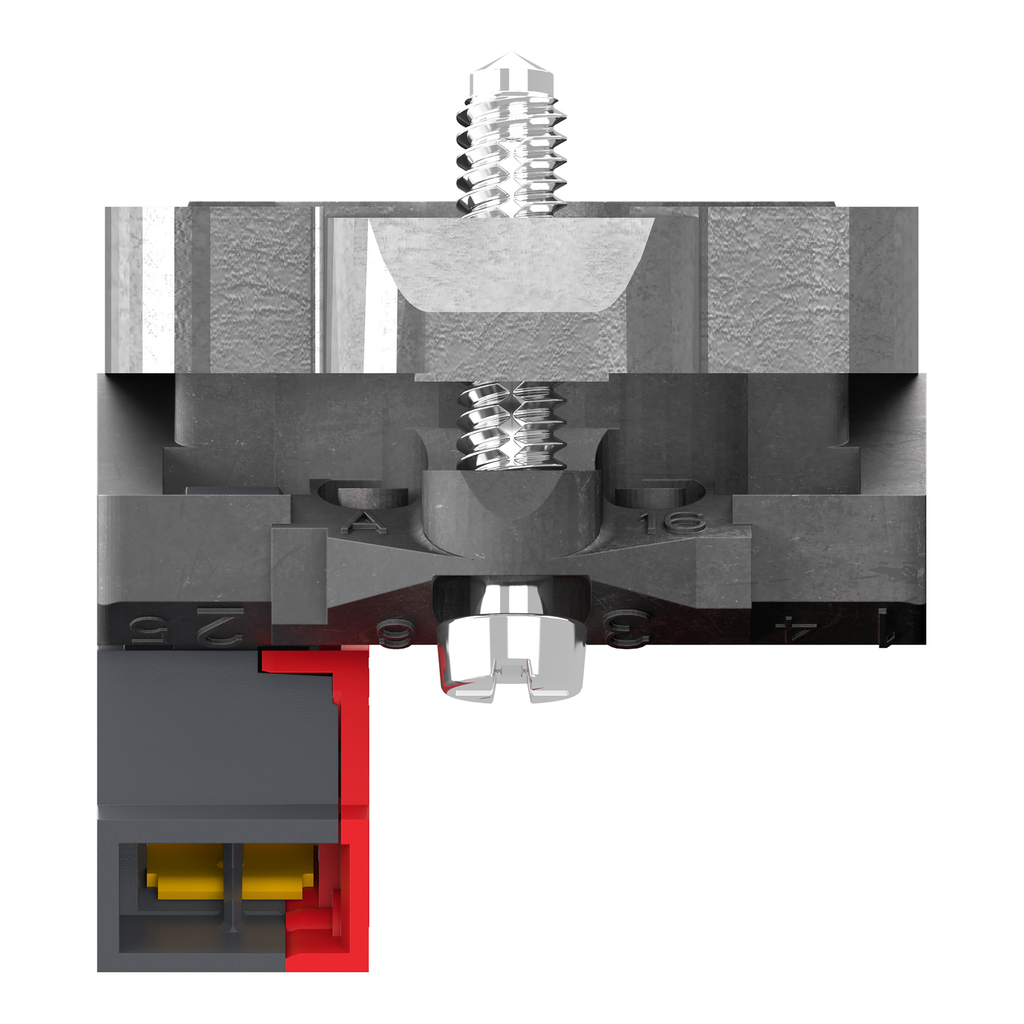

This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. It features 1 normally closed (NC) contact. It is compatible with Harmony XB4 units. It consists of a single contact block pre-assembled on a fixing collar unit. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This metal product weighs 49g. It is easily installed with push-in terminal connections. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : EAC || IECEE CB Scheme || CCC || UL || CSA
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : IEC 60947-1 || IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 60947-1 || UL 60947-5-1 || UL 60947-5-5 || UL 1059 || UL 486E || CSA C22.2 No 60947-1 || CSA C22.2 No 60947-5-1 || CSA C22.2 No 158 || CSA C22.2 No 65 || IACS E10
• Shock Resistance : 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 || 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP20 IEC 60529
• Ambient Air Temperature For Storage : -40-70 °C
• Protective Treatment : TH
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2308035EN
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI2308035EN
• Take-Back : No
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.4776744923
• Complementary
• Contacts Usage : standard contacts
• Terminals Description Iso N°1 : (11-12)NC
• Operating Force : 2.25 N NC changing electrical state
• Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Operating Travel : 1.217 mm NC changing electrical state) || 4.3 mm total travel)
• Contacts Material : silver alloy (Ag/Ni)
• Positive Opening : with IEC 60947-5-1 appendix K
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Net Weight : 0.043 kg
• [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
• Cad Overall Height : 27.6 mm
• Device Presentation : basic sub-assemblies
• [Ui] Rated Insulation Voltage : 300 V 3)IEC 60947-1
• [Ie] Rated Operational Current : 6 A 120 V, AC-15, A300 IEC 60947-5-1 || 3 A 240 V, AC-15, A300 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
• Mechanical Durability : 10000000 cycles
• Cad Overall Width : 46.2 mm
• Cad Overall Depth : 30 mm
• Specifications
• Country of Origin : Mexico
• Width : 46.2 mm
• Height : 27.6 mm
• Weight : 0.043 kg
• Range Of Product : Harmony XB4
• Contact Block Type : single
• Product Or Component Type : complete body/contact assembly
• Fixing Collar Material : zamak
• Head Type : standard
• Connections - Terminals : push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1 || push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
• Contacts Type And Composition : 1 NC
• Sale Per Indivisible Quantity : 1
• Contact Operation : slow-break
• Device Composition : body || fixing collar
• Device Short Name : ZB4
