Harmony, 22mm Push Button, contact block, panel mount, 1 NO, screw clamp terminal

STANDARD CONTACT BLOCK 1 N/O

SQDZENL1111 ZENL1111 3389110115079
19.54 / EA
http://schema.org/OutOfStock

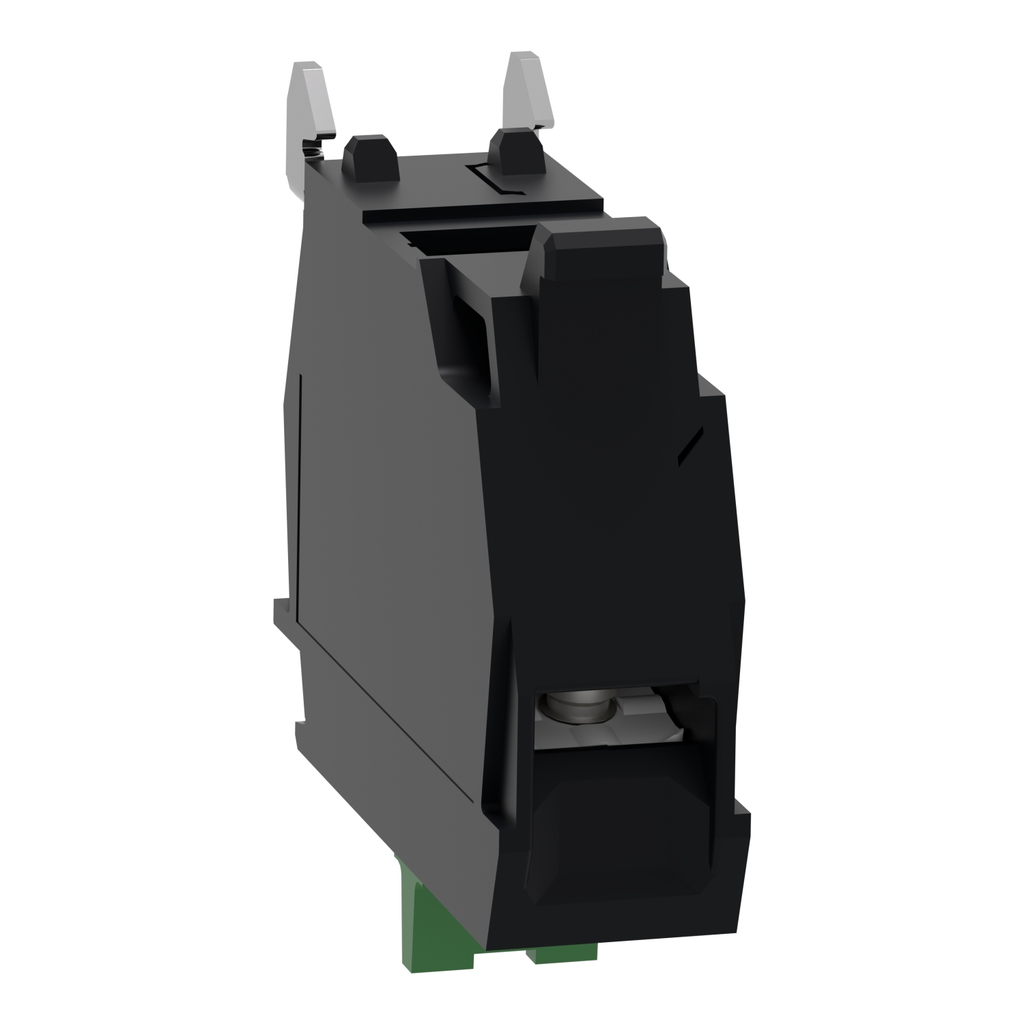

Mayer-DDS-Harmony, 22mm Push Button, contact block, panel mount, 1 NO, screw clamp terminal-2
  • Contact Material: Silver Alloy
  • Net Weight: 0.015 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
QTY
  • Product Description
  • Specifications
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || IEC 60947-5-5 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 12-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP20 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Operating Force : 2.3 N NO changing electrical state
    • Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Operating Travel : 2.6 mm NO changing electrical state) || 4.3 mm total travel)
    • Maximum Resistance Across Terminals : 25 MOhm
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : without
    • Electrical Composition Code : SR1 3 ) || SR2 2 ) || MR1 2 )
    • [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Net Weight : 0.015 kg
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • Operating Torque : 0.05 N.m NO changing electrical state
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Contact Operation : slow-break
    • Assembly Style : for customer assembly
    • Mechanical Durability : 10000000 cycles
    • Additional Information : mounting on integrated plate in the box
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
  • Specifications
    • Product Destination : for XB5 Ø 22 mm control and signalling units || for XAPS control station
    • Mounting Of Block : rear mounting
    • Range Of Product : Harmony XAL || Harmony XAPS
    • Product Or Component Type : contact block
    • Contacts Type And Composition : 1 NO
    • Sale Per Indivisible Quantity : 5
    • Device Short Name : ZENL
