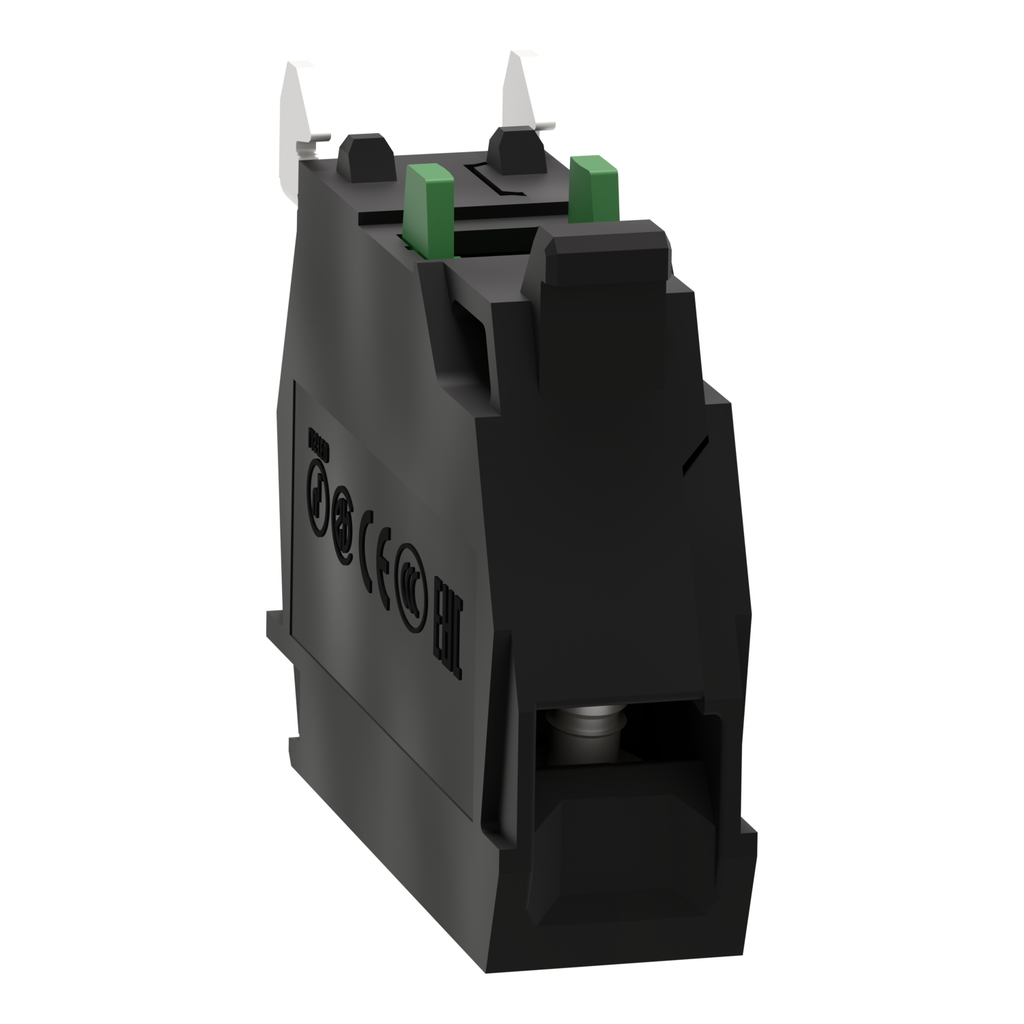

Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

SQDZBE101 ZBE101 3389110089479
17.64 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal-2
  • Country of Origin: France
  • Warranty Length: 18 mth
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be
QTY
  • Product Description
  • Features
  • Specifications
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be
  • Connections Terminals
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
  • Electrical Composition Code
    • C1 9 )
    • C2 7 )
    • C3 6 )
    • C4 4 )
    • C5 5 )
    • C6 3 )
    • C7 4 )
    • C8 2 )
    • C9 3 )
    • C12 6 )
    • M1 6 )
    • M2 4 )
    • M3 4 )
    • M5 2 )
    • M6 2 )
    • M7 6 )
    • M8 4 )
    • M9 2 )
  • IE Rated Operational Current
    • 3 A 240 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947
  • ITH Conventional Free Air Thermal Current
    • 10 A IEC 60947-5-1
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZBE101_NEW_2024
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZBE101_CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZBE101_3DCAD
  • IP Degree Of Protection
    • IP20 IEC 60529
  • Range Of Product
    • Harmony XB5
    • Harmony XB4
  • Shape Of Screw Head
    • cross pozidriv No 1
    • slotted flat Ø 4 mm
    • slotted flat Ø 5.5 mm
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.012714
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.03267
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.1 kg CO2 eq.
    • 0.11463
  • UI Rated Insulation Voltage
    • 600 V 3)IEC 60947-1
  • Electrical Durability
    • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 2 A 230 V 36
  • Operating Force
    • 2.3 N NO changing electrical state
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0.023894
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0051195
    • 0 kg CO2 eq.
  • Tightening Torque
    • 0.8-1.2 N.m IEC 60947-1
  • Short Circuit Protection
    • 10 A cartridge fuse gG IEC 60947-5-1
  • Operating Travel
    • 2.6 mm NO changing electrical state)
    • 4.3 mm total travel)
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • UIMP Rated Impulse Withstand Voltage
    • 6 kV IEC 60947-1
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-10-15
    • HTML Description : Single contact block for head 22mm 1NO screw clamp terminal
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 0.11463
    • Distribution Carbon Footprint : 0.0051195
    • Installation Carbon Footprint : 0.012714
    • Use Carbon Footprint : 0.023894
    • End Of Life Carbon Footprint : 0.03267
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : ZBE
    • Contact Block Type : single
    • Contacts Type And Composition : 1 NO
    • Contacts Usage : standard contacts
    • Device Short Name : ZBE
    • Mounting Of Block : front mounting
    • Package Weight Lbs : 9.000 g
    • Positive Opening : without
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : contact block
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 5
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.1890275
    • Relationship Type : Compatible relationship
    • Accessories : ZB5AZ905
    • Pep Code : ENVPEP2304014EN
    • Pep Verification Date : 2023-04-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 17.99
    • Functional Unit Description : Push button contact blocks are an important electrical component used in a variety of applications. They provide a way to control, monitor, and switch electrical circuits on and off. This contact block consumes 0.002 W with a 30% utilisation rate and the
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 0.05256
    • Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model Installation A5 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model Use B6 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Recyclability Potential In : 50
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.001336149
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0010662
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.000022246
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.000050466
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.00013881
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.000058427
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.00031332
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.002133086
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0015401
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.00056513
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.000027856
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.00082599
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 0.1868945
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.11309
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0051195
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.012149
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0.023866
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.03267
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.057742
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 0.1890275
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.11463
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.0051195
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.012714
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0.023894
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.03267
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.058568
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0000369864749
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000036984
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000000044
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000042425
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000000014332
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000000061701
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0000096858
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 3.539244
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 1.6263
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.062164
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.13234
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0.55744
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.161
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.9394
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 38.9924739999999
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 38.589
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.020996
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.086766
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0.27921
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.016502
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -0.97125
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.000000016149144
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.000000014449
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.000000000060384
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000033574
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.0000000010048
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000029922
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.000000017729
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00000146711916
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000013203
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000000059946
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.000000091848
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00000005153
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000000028417
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0000002886
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 0.6334977115
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.62175
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.0000042415
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0001503
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.00047317
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.01112
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.75766
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.000000097059137
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.000000092509
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.0000000000000722
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000000045455
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000000028083
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000000017565
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000011785
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.000000009159363
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.000000008601
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.000000000013521
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.000000000065842
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000011711
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000036189
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000000019541
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.00205378
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0016498
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.00040398
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 1.81600737
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 1.7872
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00001135
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00059605
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0.027996
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.00020397
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.0066757
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.000241864
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.00019159
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.000010223
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.000013365
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.000015743
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.000010943
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.000047501
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.0124599
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0069865
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0054734
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.0004168033
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.000090934
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000060473
    • Net Use Of Fresh Water M3 Installation A5 : 0.0001264
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.000020082
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.00017334
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.00066463
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.2838372106
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.2333
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0000052106
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.041359
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0035183
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0056547
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.28513
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.000000032571595
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.000000027017
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000045177
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000084155
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000000001042
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.000000000091145
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000000075325
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.000752947
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.00059632
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000036323
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.000026935
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.00005102
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.000042349
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.00014434
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.00004268772
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.000035206
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000010178
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000055516
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00000065784
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000025448
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.000024587
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.00258404
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0020255
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.00011078
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00010087
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.00022271
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.00012418
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00046288
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.539244
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.6263
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.062164
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.13234
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.55744
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.161
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.9394
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 3.737314
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 1.7118
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.062164
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.14183
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0.66042
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1.1611
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1.0172
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.19812510645
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.08555
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00000041645
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0094955
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.10298
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.00009919
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.07784
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.14074
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.14074
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.398544
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.4856
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.062164
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.13234
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.55744
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.161
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.9394
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1383
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1383
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.17976
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0598201064499999
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : -0.052755
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00000041645
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0094955
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.10298
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.00009919
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.10192
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0000053636
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0000053636
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Packaging Weight In G : 7
    • Connections Terminals 8 : Faston connector
    • Contacts Composition 6 : 1 NO
  • General Attributes
    • Product Or Component Type : contact block
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=651810&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.1890275
    • Environmental Disclosure : ENVPEP2304014EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2304014EN
    • Pep Verification Date : 2023-04-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic element
