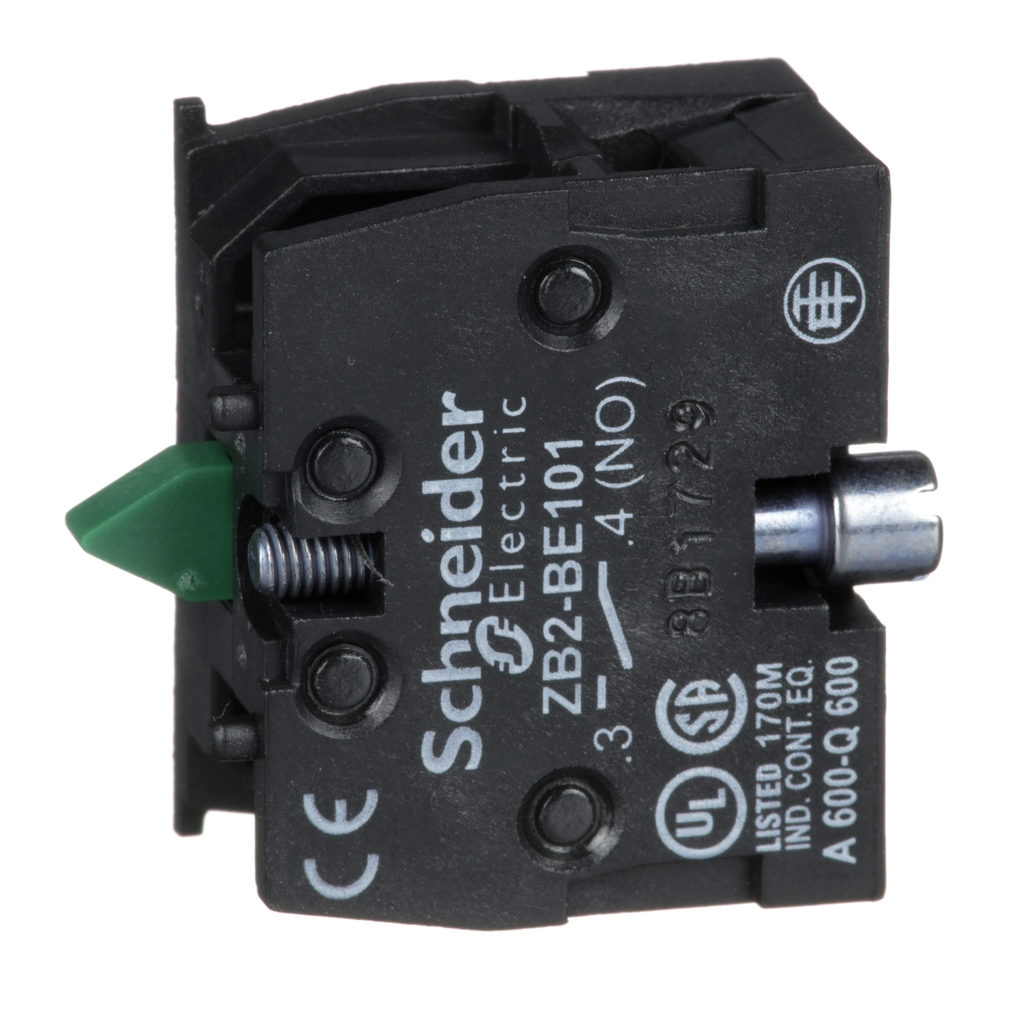

Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

Name: Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal
Brand: SQUARE D
SKU: SQDZB2BE101
Price: 15.72 USD
Availability: OutOfStock

SQDZB2BE101 ZB2BE101 3389110612608

15.72 / EA

http://schema.org/OutOfStock

Mayer-DDS-Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal-2

Country of Origin: Indonesia
Warranty Length: 18 mth

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be

QTY

Product Description
Features
Specifications

Connections Terminals

screw clamps terminals, 1 x 2.5 mm² with or without cable end
screw clamps terminals, 2 x 1.5 mm² with or without cable end
screw

https://download.schneider-electric.com/files?p_Doc_Ref=zb2be101-3d&p_File_name=zb2be101-3d_2D-back.DWG
https://download.schneider-electric.com/files?p_Doc_Ref=zb2be101-3d&p_File_name=zb2be101-3d_2D-back.DXF
https://download.schneider-electric.com/fi

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon Footprint Of The Installation Phase A5

0.0000617518
0 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

0 kg CO2 eq.
0.0100128467

Carbon Footprint Of The Manufacturing Phase A1 To A3

0.2 kg CO2 eq.
0.2365109489

Electrical Shock Protection Class

class II conforming to IEC 61140

UI Rated Insulation Voltage

600 V 3)IEC 60947-1

Rated Operational Power In W

40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1
40 W DC-13

Vibration Resistance

15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Market Segmentation

Commercial
Industrial

Persona Type Names

Charge Point Operator
End User
Contractor
Original Equipment Manufacturer
OEM - Control Panelbuilder
Panel Builder
Electrician
System Integrator
IT Channel Partner

Carbon Footprint Of The Use Phase B2 B3 B4 B6

0 kg CO2 eq.
0.0458817143

Persona Type Ids

Carbon Footprint Of The Distribution Phase A4

0.0026153285
0 kg CO2 eq.

Short Circuit Protection

10 A fuse protection cartridge gG (gl)

Contact Code Designation

A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A
A600 AC-15, Ue = 240 V, Ie = 3

Market Segmentation Id

COMMERCIAL
INDUSTRIAL

UIMP Rated Impulse Withstand Voltage

6 kV IEC 60947-1

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2025-10-15
Manufacturer : Schneider Electric
Manufacturing Carbon Footprint : 0.2365109489
Distribution Carbon Footprint : 0.0026153285
Installation Carbon Footprint : 0.0000617518
Use Carbon Footprint : 0.0458817143
End Of Life Carbon Footprint : 0.0100128467
Legacy WEEE Scope : In
WEEE Product Category : 5
Scope Perimeter : At least in Europe
Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant
ROHS EUR Conformity Date : 1930
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 1
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Return Indicator : Y
WD Status : 1 - GSC certified
Tier Id : 1
Tier : 1
Function Option Id : STANDARD
Function Option : Standard
Component Name : ZB2
Contact Block Application : single speed
Contact Block Type : single
Mounting Of Block : front mounting
Package Weight Lbs : 15.000 g
Product Availability : Stock - Normally stocked in distribution facility
Product Or Component Type : contact block
Range Of Product : Harmony XAC
Returnability : Yes
Sustainable Packaging : No
Terminals Description ISO N 1 : (13-14)NO
Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.2950825902
Relationship Type : Compatible relationship
Pep Code : ENVPEP2211045EN
Pep Verification Date : 2023-01-01
PCR Version : PEP-PCR-ed4-2021 09 06
PSR Version : PSR-0005-ed2-2016 03 29
Type Of Verification For The Pep : Independent internal review
Product Weight In G : 20
Functional Unit Description : The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.015W with 70% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional Unit Quantity : 1
Functional Unit Unit : Unit
Reference Lifetime In Y : 10
Energy Consumption On Product Lifetime In Kwh : 0.05256
Energy Model Manufacturing A1 A3 : Energy model used: China
Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; CN
Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; CN
Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; CN
Recyclability Potential In : 80
Acidification Ap Mole Of H Equiv Total Life Cycle : 0.0023321636
Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0019318832
Acidification Ap Mole Of H Equiv Distribution A4 : 0.0000168216
Acidification Ap Mole Of H Equiv Installation A5 : 0.0000003223
Acidification Ap Mole Of H Equiv Maintenance B2 : 0
Acidification Ap Mole Of H Equiv Repair B3 : 0
Acidification Ap Mole Of H Equiv Replacement B4 : 0
Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.0003434343
Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0000397022
Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0001394803
Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.0005583432
Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0005335766
Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
Climate Change Biogenics Kg Co2 Eq Installation A5 : 0
Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.0000065783
Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.0000181883
Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0000465606
Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 0.2945238957
Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.2359766423
Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0026153285
Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.0000617518
Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0.0458754286
Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.0099947445
Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0168242336
Climate Change Total Kg Co2 Eq Total Life Cycle : 0.2950825902
Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.2365109489
Climate Change Total Kg Co2 Eq Distribution A4 : 0.0026153285
Climate Change Total Kg Co2 Eq Installation A5 : 0.0000617518
Climate Change Total Kg Co2 Eq Maintenance B2 : 0
Climate Change Total Kg Co2 Eq Repair B3 : 0
Climate Change Total Kg Co2 Eq Replacement B4 : 0
Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0.0458817143
Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.0100128467
Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0168709489
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Maintenance B2 : 0
Components For Re Use Kg Repair B3 : 0
Components For Re Use Kg Replacement B4 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.00005999
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0000599708
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000001
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000000006
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000185
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.000054908
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 4.4951887007
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 3.0998540146
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.0364379562
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0006923504
Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0.742
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.6162043796
Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.3576350365
Ecotoxicity Fresh Water Ctue Total Life Cycle : 8.7559202086
Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 7.7383941606
Ecotoxicity Fresh Water Ctue Distribution A4 : 0.0017599708
Ecotoxicity Fresh Water Ctue Installation A5 : 0.0003804672
Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
Ecotoxicity Fresh Water Ctue Repair B3 : 0
Ecotoxicity Fresh Water Ctue Replacement B4 : 0
Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0.8652571429
Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.1501284672
Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -0.3903941606
Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000000192
Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.000000017
Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000001
Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0
Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.0000000019
Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.0000000002
Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.000000008
Exported Energy Mj By Energy Vector Total Life Cycle : 0.0000009231
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000000868
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0.0000008363
Exported Energy Mj By Energy Vector Maintenance B2 : 0
Exported Energy Mj By Energy Vector Repair B3 : 0
Exported Energy Mj By Energy Vector Replacement B4 : 0
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0000014261
Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000007534
Freshwater Eutrophication Kg P Eq Distribution A4 : 0.000000001
Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000000106
Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
Freshwater Eutrophication Kg P Eq Repair B3 : 0
Freshwater Eutrophication Kg P Eq Replacement B4 : 0
Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0000000097
Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000006514
Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0000001101
Hazardous Waste Disposed Of Kg Total Life Cycle : 0.4926080222
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.4590364964
Hazardous Waste Disposed Of Kg Distribution A4 : 0
Hazardous Waste Disposed Of Kg Installation A5 : 0.0000001665
Hazardous Waste Disposed Of Kg Maintenance B2 : 0
Hazardous Waste Disposed Of Kg Repair B3 : 0
Hazardous Waste Disposed Of Kg Replacement B4 : 0
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0013932571
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0321781022
Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.4675036496
Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000000004
Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000004
Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0
Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.000000053
Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000000082
Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000076
Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000003
Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000003
Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000000016
Impacts Related To Land Use Soil Quality Total Life Cycle : 0.0021965398
Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0003889343
Impacts Related To Land Use Soil Quality Distribution A4 : 0
Impacts Related To Land Use Soil Quality Installation A5 : 0
Impacts Related To Land Use Soil Quality Maintenance B2 : 0
Impacts Related To Land Use Soil Quality Repair B3 : 0
Impacts Related To Land Use Soil Quality Replacement B4 : 0
Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.0001329486
Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.0016746569
Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 0.0606319197
Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.0548233577
Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0000063618
Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0000012135
Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0.0054496
Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0003513869
Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.027510365
Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.0002634205
Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0002104526
Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000078999
Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0000001283
Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.0000367246
Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0000082152
Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000124339
Materials For Energy Recovery Kg Total Life Cycle : 0.0001459854
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Maintenance B2 : 0
Materials For Energy Recovery Kg Repair B3 : 0
Materials For Energy Recovery Kg Replacement B4 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0001459854
Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
Materials For Recycling Kg Total Life Cycle : 0.0044408759
Materials For Recycling Kg Manufacturing A1 A3 : 0.0006724088
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 0.0004166423
Materials For Recycling Kg Maintenance B2 : 0
Materials For Recycling Kg Repair B3 : 0
Materials For Recycling Kg Replacement B4 : 0
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 0.0033518248
Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
Net Use Of Fresh Water M3 Total Life Cycle : 0.0005933849
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0004636788
Net Use Of Fresh Water M3 Distribution A4 : -0.0000003852
Net Use Of Fresh Water M3 Installation A5 : -0.0000003773
Net Use Of Fresh Water M3 Maintenance B2 : 0
Net Use Of Fresh Water M3 Repair B3 : 0
Net Use Of Fresh Water M3 Replacement B4 : 0
Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.0000469737
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000834949
Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.000147708
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.0276581635
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.0185089051
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0000916818
Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0003507737
Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
Non Hazardous Waste Disposed Of Kg Repair B3 : 0
Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.007992
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0007148029
Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0120721168
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000000092
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000000088
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000000003
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000002
Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.000000003
Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.0010762755
Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0009016934
Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0000218943
Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000003645
Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.0001227029
Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0000296204
Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0000508818
Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0000082561
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0000072619
Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000000653
Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000125
Radioactive Waste Disposed Of Kg Maintenance B2 : 0
Radioactive Waste Disposed Of Kg Repair B3 : 0
Radioactive Waste Disposed Of Kg Replacement B4 : 0
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.000000327
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000005894
Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0000058923
Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.0028829227
Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0022888175
Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0000866686
Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0000014045
Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.0004158686
Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0000901635
Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0001417664
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.4951887007
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.0998540146
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0364379562
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0006923504
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.742
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.6162043796
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.3576350365
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 4.5986375516
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 3.1240875912
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.0364846715
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0007030365
Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0.8204571429
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.6169051095
Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -0.3682919708
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1033470691
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.024129927
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000486248
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000106987
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.0784742857
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0006835328
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0106586861
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1272583942
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1272583942
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.3678894307
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.9725547445
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0364379562
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0006923504
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.742
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.6162043796
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.3576350365
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.004950073
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.004950073
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0983969961
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.019179854
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000486248
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000106987
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.0784742857
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0006835328
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0106586861
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
Use Of Renewable Secondary Fuels Mj Repair B3 : 0
Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Secondary Materials Kg Total Life Cycle : 0.0000273924
Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0000273924
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Maintenance B2 : 0
Use Of Secondary Materials Kg Repair B3 : 0
Use Of Secondary Materials Kg Replacement B4 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0

General Attributes

Product Or Component Type : contact block
Range Of Product : Harmony XAC

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=662514&lang=en-us
Take Back : No
Reach Free SHVC : Yes
China ROHS Regulation : X
Toxic Heavy Metal Free : Yes
Mercury Free : Yes
Carbon Footprint : 0.2950825902
Environmental Disclosure : ENVPEP2211045EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Free Of SVHC : Yes
Reach Regulation : Free of Substances of Very High Concern above the threshold
Pep Code : ENVPEP2211045EN
Pep Verification Date : 2023-01-01
PCR Version : PEP-PCR-ed4-2021 09 06
PSR Version : PSR-0005-ed2-2016 03 29
Type Of Verification For The Pep : Independent internal review

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months

Specifications

Country of Origin : Indonesia

Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

characters left.
