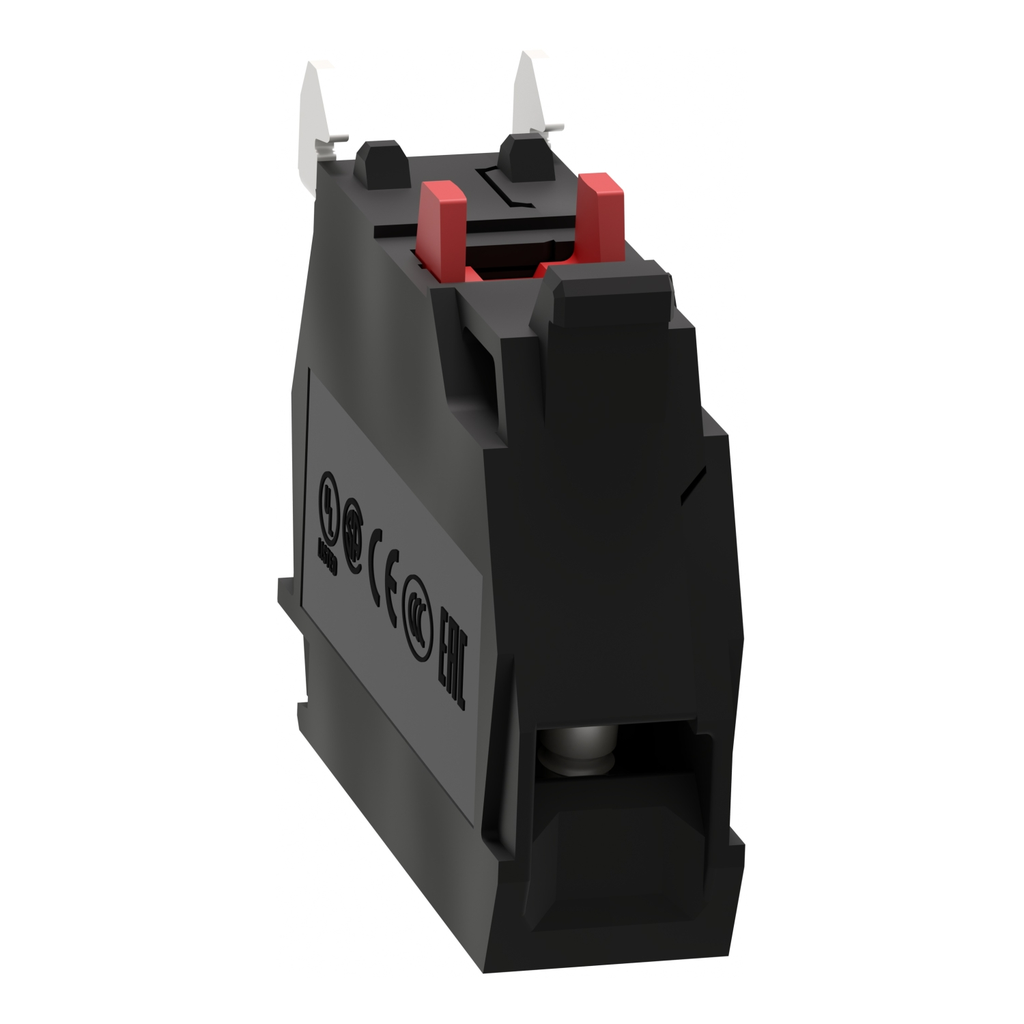

Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal

Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal

SQDZBE102 ZBE102 3389110089486
17.64 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal-2
  • Operating Force: 2 N
  • Warranty Length: 18 mth
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It has clear color scheme for NO and NC contact block types. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • IE Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • UI Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • UIMP Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electrical Composition Code : C1 9 ), C2 7 ), C3 6 ), C4 4 ), C5 5 ), C6 3 ), C7 4 ), C8 2 ), C9 3 ), C12 6 ), M1 6 ), M2 4 ), M3 4 ), M5 2 ), M6 2 ), M7 6 ), M8 4 ), M9 2 ), SF1 3 ), SF2 2 ), MF1 2 ), MF2 2 ), C10 2 ), M4 2 ), C13 1 )
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Operating Travel : 1.5 mm NC changing electrical state), 4.3 mm total travel)
    • Range Of Product : Harmony XB4, Harmony XB5
    • Shape Of Screw Head : cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • IE Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.0011769038354641468, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.016344580322401332
    • Carbon Footprint Of The Installation Phase A5 : 0.0063390216787103945, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.1 kg CO2 eq., 0.05580600333518621
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • HTML Description : Single contact block for head 22mm 1NC screw clamp terminal
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Average Percentage Of Recycled Metal Content : 13 %
    • Average Percentage Of Recycled Plastic Content : 23 %
    • Compatibility Code : ZBE
    • Contact Block Type : single
    • Contacts Type And Composition : 1 NC
    • Contacts Usage : standard contacts
    • Device Short Name : ZBE
    • Mounting Of Block : front mounting
    • Operating Force : 2 N NC changing electrical state
    • Package Weight Lbs : 9.000 g
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : contact block
    • Returnability : Yes
    • Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 0.1 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • ITH Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2304014_V1
    • Pep Verification Date : 2024-06-09
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Pushbutton contact blocks are an important electrical component used in a variety of applications. They provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.002 W with 35% utilisation rate and the product has a life of 10 years and adhering to international standards IEC 60947-1 & IEC 60947-5-4.
    • Functional Unit Unit : unit
    • Connections Terminals 8 : Faston connector
    • Contacts Composition 6 : 1 NC
    • Product Kit Identifier : N
    • Product Manager : SU-JIN NG
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 13 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.0796665091717621
    • Environmental Disclosure : ENVPEP2304014_V1
    • IP Degree Of Protection : IP20 IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2304014_V1
    • Pep Verification Date : 2024-06-09
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Range Of Product : Harmony XB4, Harmony XB5
    • Product Or Component Type : contact block
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : basic element
