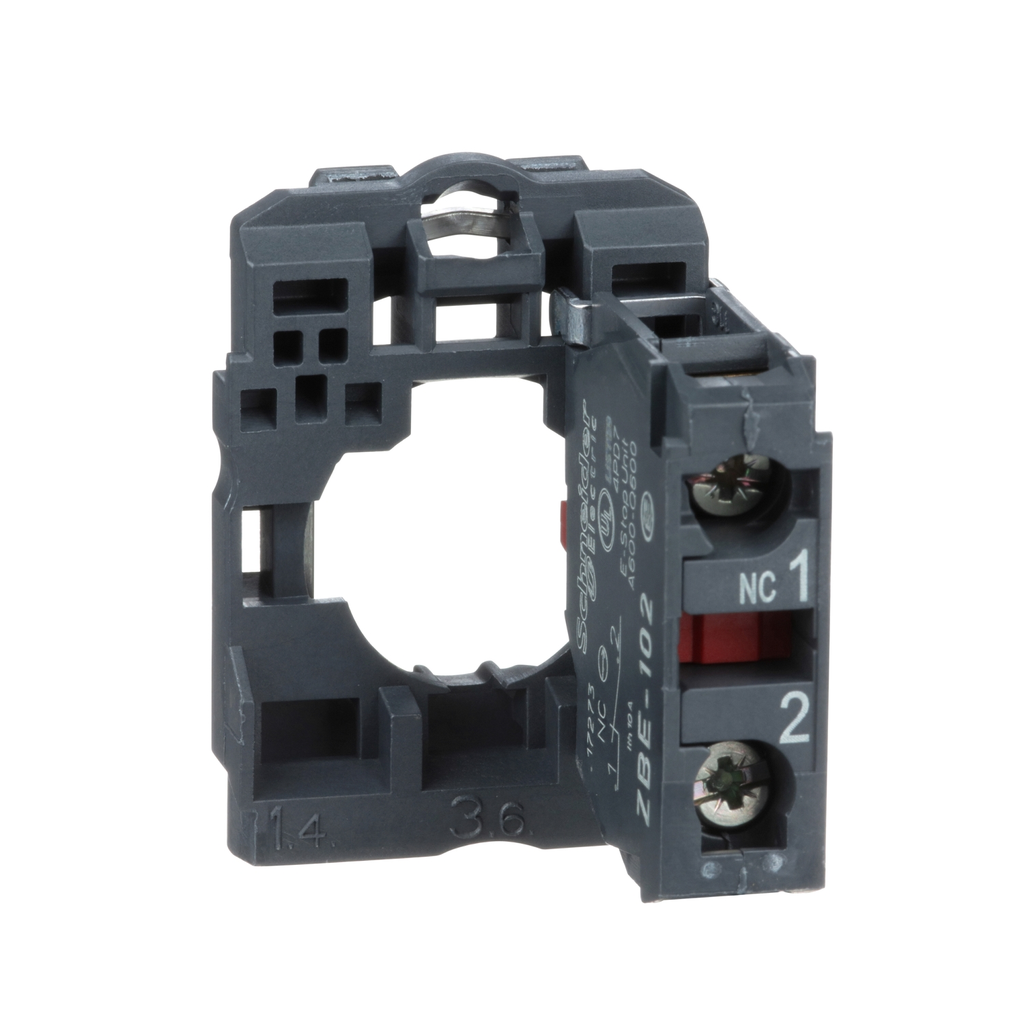

Harmony, 22mm Push Button, XB5A operators, contact block, with mounting collar, 1 NC, screw clamp terminal

Harmony, 22mm Push Button, XB5A operators, contact block, with mounting collar, 1 NC, screw clamp terminal

SQDZB5AZ102 ZB5AZ102 3389110924411
23.67 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony, 22mm Push Button, XB5A operators, contact block, with mounting collar, 1 NC, screw clamp terminal-2
  • Country of Origin: France
  • Head Type: Standard
  • Warranty Length: 18 mth
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be
QTY
  • Product Description
  • Features
  • Specifications
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be
  • Connections Terminals
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
  • IE Rated Operational Current
    • 3 A 240 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947
  • ITH Conventional Free Air Thermal Current
    • 10 A IEC 60947-5-1
  • IP Degree Of Protection
    • IP20 IEC 60529
  • Shape Of Screw Head
    • cross Philips no 1
    • cross pozidriv No 1
    • slotted flat Ø 4 mm
    • slotted flat Ø 5.5 mm
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0055369982
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.0379498082
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.2 kg CO2 eq.
    • 0.1563750959
  • UI Rated Insulation Voltage
    • 600 V 3)IEC 60947-1
  • Accessories
    • ZB5AZ905
    • ZBY2101
    • ZBYLEG503001
    • ZBYP2101
  • Electrical Durability
    • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 2 A 230 V 36
  • Operating Force
    • 2 N NC changing electrical state
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Positive Opening
    • with IEC 60947-5-1 appendix K
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0.0359269014
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Customizable
    • no
    • 0
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0073330862
    • 0 kg CO2 eq.
  • Tightening Torque
    • 0.8-1.2 N.m IEC 60947-1
  • Short Circuit Protection
    • 10 A cartridge fuse gG IEC 60947-5-1
  • Operating Travel
    • 1.5 mm NC changing electrical state)
    • 4.3 mm total travel)
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Electrical Reliability
    • λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4
    • λ < 10exp(-6) 5 V,
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • UIMP Rated Impulse Withstand Voltage
    • 6 kV IEC 60947-1
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AZ102_CAD
  • Physical Attributes
    • Cad Overall Depth : 32 mm
    • Cad Overall Height : 42 mm
    • Cad Overall Width : 30 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-13
    • Manufacturing Carbon Footprint : 0.1563750959
    • Distribution Carbon Footprint : 0.0073330862
    • Installation Carbon Footprint : 0.0055369982
    • Use Carbon Footprint : 0.0359269014
    • End Of Life Carbon Footprint : 0.0379498082
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2303008EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : ZB5
    • Contact Block Type : single
    • Contacts Usage : standard contacts
    • Device Short Name : ZB5
    • Fixing Collar Material : plastic
    • Head Type : standard
    • Package Weight Lbs : 20.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : complete body/contact assembly
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Sustainable Packaging : Yes
    • Terminals Description ISO N 1 : (11-12)NC
    • Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.2431218899
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2303008EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 21
    • Functional Unit Description : XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs a
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 0.05256
    • Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    • Recyclability Potential In : 29
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.0013968972
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0010669138
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0000320015
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0000041288
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.0002394549
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0000543981
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0001478215
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.0016005888
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0015766914
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0000044527
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.0000194446
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0000595582
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 0.2415249028
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.154801841
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0073330862
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.0055327026
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0.0359074648
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.0379498082
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0254147788
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 0.2431218899
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.1563750959
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.0073330862
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.0055369982
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0.0359269014
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.0379498082
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.02547438
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0001542341
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0001542327
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000000009
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000005
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0000072225
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 3.898704082
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 2.1847839427
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.0890687804
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0069223217
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0.6325774648
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.9853515725
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.5424239325
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 50.6450631937
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 50.0284326259
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.0300335975
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.0056846587
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0.5604084507
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.0205038609
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -0.5016535413
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.000000011
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000000092
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000001
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.0000000014
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.0000000003
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000000127
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.0026414037
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0026414037
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0000017719
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.000001652
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000000009
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000000945
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000000022
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000000026
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0000000461
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 0.2926941035
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.2748739453
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.0000060772
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0000036351
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0009073521
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0169030938
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.5661569931
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000000399
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000398
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000000831
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000000078
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000073
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000002
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000003
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000000014
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.0032623897
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0029912784
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.0002711113
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 0.3576183447
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.3452838149
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0000162636
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0000218033
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0.0119949296
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0003015334
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.0040836973
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.0002569554
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0002030036
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000147156
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0000021723
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.0000262842
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0000107797
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000146076
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.0046467507
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0000550478
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0045917029
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.0004205534
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0002097262
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000086647
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000023635
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.0000333883
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0001664106
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0002477689
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.2105391956
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.1911907441
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0000074662
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.005477934
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0057739437
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0080891076
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0199502685
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000000383
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000000315
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000065
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000000002
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000001
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000000044
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.0008818363
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0006966351
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0000522278
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000054833
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.0000871648
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0000403253
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0000597354
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0000451761
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0000425552
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000014584
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000002203
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0000005742
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000003681
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.000008443
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.0027517575
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0021354385
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0001594572
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0000163296
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.0003160732
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.000124459
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0001689074
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.898704082
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.1847839427
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0890687804
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0069223217
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.6325774648
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.9853515725
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.5424239325
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 4.0512645892
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 2.256627461
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.0890741498
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0071489133
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0.7129014085
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.9855126566
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -0.5470416773
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1525726582
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0718703656
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000005967
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0002265219
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.0803323944
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001427796
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0046184965
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.2785144464
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.2785144464
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.6201896356
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.9062694963
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0890687804
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0069223217
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.6325774648
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.9853515725
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.5424239325
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0925696753
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0925696753
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0009908821
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0600045937
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : -0.0206976988
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000005967
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0002265219
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.0803323944
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001427796
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0036276144
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : complete body/contact assembly
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=654144&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.2431218899
    • Circularity Profile : ENVEOLI2303008EN
    • Environmental Disclosure : ENVPEP2303008EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2303008EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic sub-assemblies
