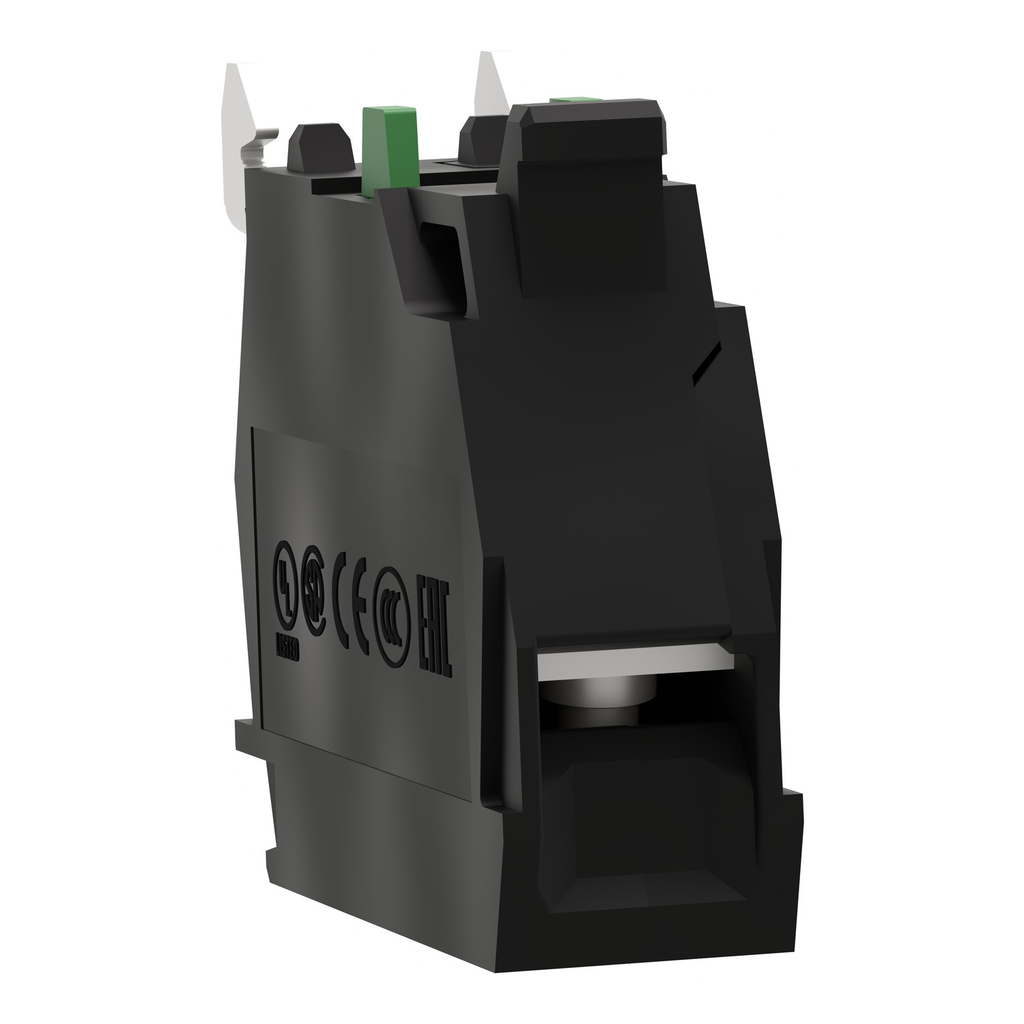

This Harmony ZB, single contact block uses lugs terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple lugs connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : BV || UL || CSA || DNV || LROS (Lloyds register of shipping)
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-1 || UL 508 || JIS C8201-1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Ambient Air Temperature For Storage : -40-70 °C
• Protective Treatment : TH
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2304014EN
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.1065066459
• Complementary
• Mounting Of Block : front mounting
• Contacts Type And Composition : 1 NO
• Operating Force : 2.3 N NO changing electrical state
• Operating Travel : 2.6 mm NO changing electrical state) || 4.3 mm total travel)
• Contacts Material : silver alloy (Ag/Ni)
• Positive Opening : without
• Electrical Composition Code : C1 9 ) || C2 7 ) || C3 6 ) || C4 4 ) || C5 5 ) || C6 3 ) || C7 4 ) || C8 2 ) || C9 3 ) || C12 6 ) || M1 6 ) || M2 4 ) || M3 4 ) || M5 2 ) || M6 2 ) || M7 6 ) || M8 4 ) || M9 2 ) || SF1 3 ) || SF2 2 ) || MF1 2 ) || MF2 2 ) || C10 2 ) || M4 2 ) || C13 1 )
• Mechanical Durability : 10000000 cycles
• Specifications
• Country of Origin : France
• Contacts Usage : standard contacts
• Range Of Product : Harmony XB4 || Harmony XB5
• Contact Block Type : single
• Product Or Component Type : contact block
• Ip Degree Of Protection : IP20 IEC 60529
• Connections - Terminals : screw terminals for lug
• Sale Per Indivisible Quantity : 5
• Contact Operation : slow-break
• Device Short Name : ZBE
