Contact block, Harmony XAL, XAPS, single contact, silver alloy, rear mounting, screw clamp terminal, 1NO

HARMONY XALD, XALK, SINGLE CON

SQDZENL1111TQ ZENL1111TQ 3389110960341
15.34 / EA
http://schema.org/OutOfStock
Mayer-DDS-Contact block, Harmony XAL, XAPS, single contact, silver alloy, rear mounting, screw clamp terminal, 1NO-1

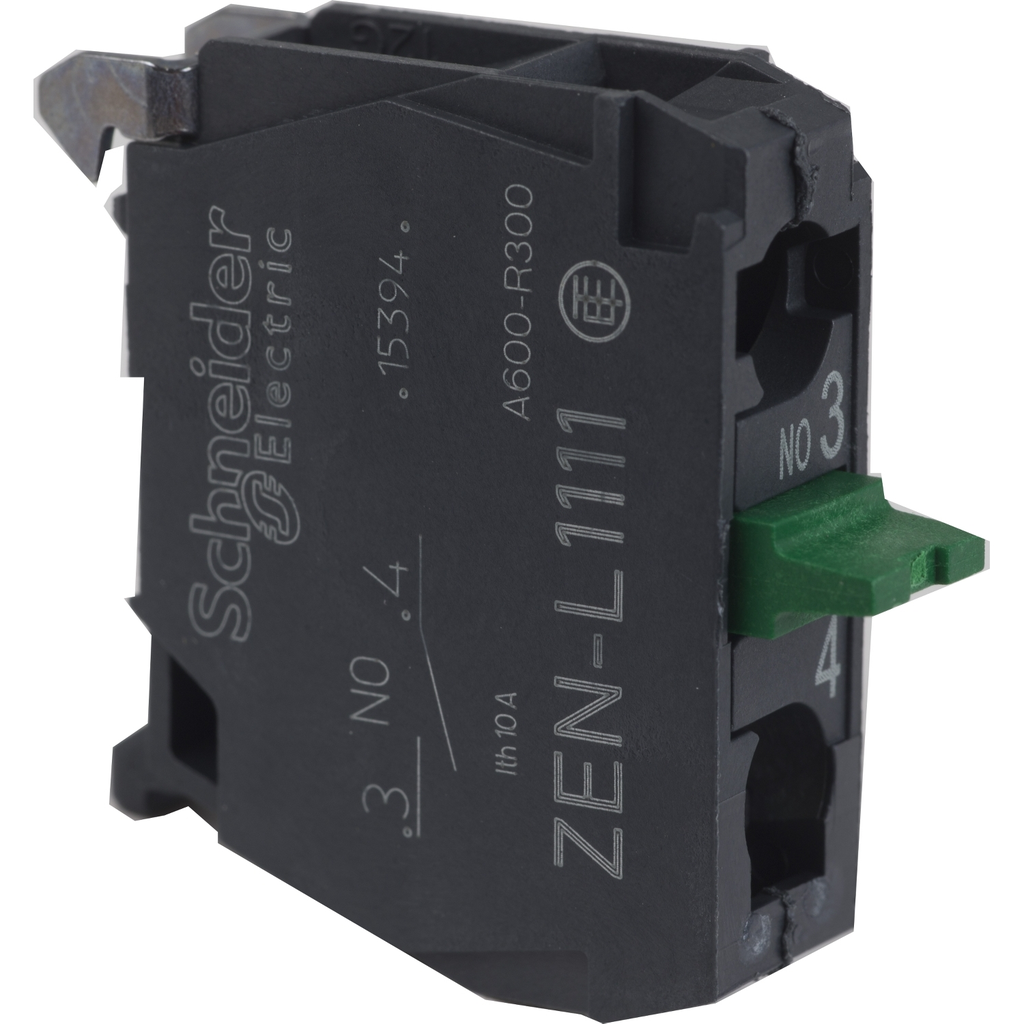

This Harmony ZENL1111TQ is a contact block ZENL1111 sold by 100 for Harmony XAL and XAPS range.
QTY
  • Product Description
  • Specifications
This Harmony ZENL1111TQ is a contact block ZENL1111 sold by 100 for Harmony XAL and XAPS range.
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 12-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP20 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Operating Force : 2.3 N NO changing electrical state
    • Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Operating Travel : 2.6 mm NO changing electrical state) || 4.3 mm total travel)
    • Maximum Resistance Across Terminals : 25 MOhm
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : without
    • Electrical Composition Code : SR1 3 ) || SR2 2 ) || MR1 2 )
    • [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • Operating Torque : 0.05 N.m NO changing electrical state
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Contact Operation : slow-break
    • Assembly Style : for customer assembly
    • Mechanical Durability : 10000000 cycles
    • Additional Information : mounting on integrated plate in the box
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
  • Specifications
    • Country of Origin : France
    • Product Destination : for XB5 Ø 22 mm control and signalling units || for XAPS control station
    • Mounting Of Block : rear mounting
    • Range Of Product : Harmony XAL || Harmony XAPS
    • Product Or Component Type : contact block
    • Contacts Type And Composition : 1 NO
    • Sale Per Indivisible Quantity : 100
    • Device Short Name : ZENL
