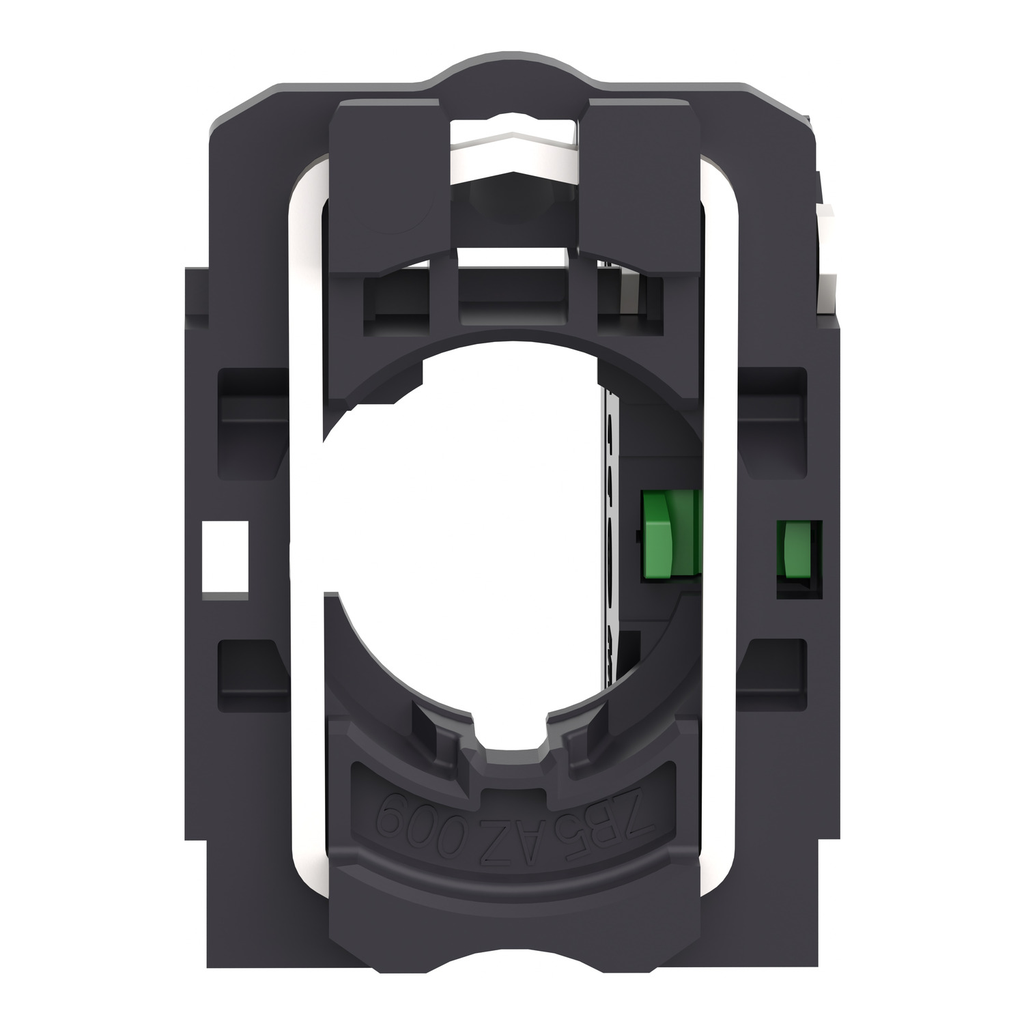

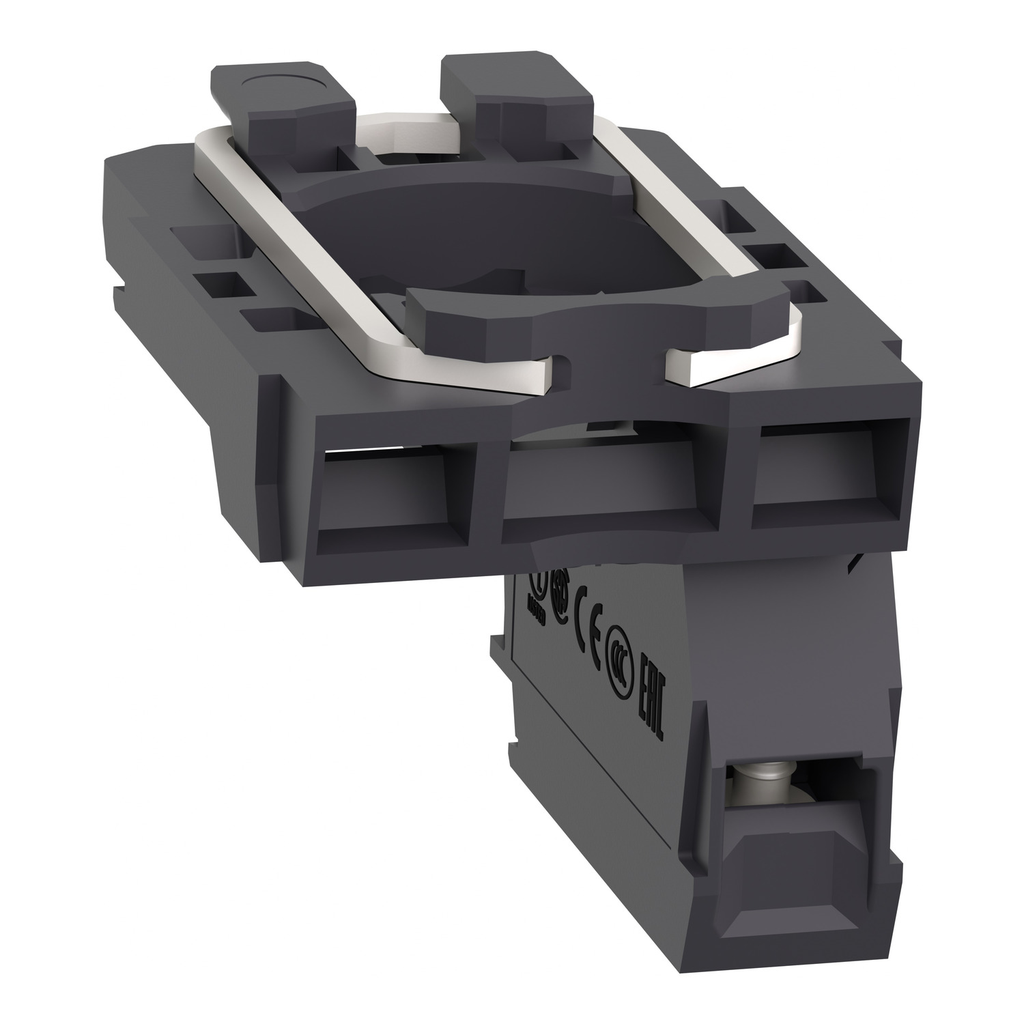

Complete body contact assembly, Harmony XB5, single contact, with body fixing collar, screw clamp terminal, 1NO, set of 100

COMPLETE BODY/CONTACT ASSEMBLY

SQDZB5AZ101TQ 3389110894806
19.25 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete body contact assembly, Harmony XB5, single contact, with body fixing collar, screw clamp terminal, 1NO, set of 100-2
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL
  • Contact Material: Silver Alloy
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections It is sold by 100 units High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
QTY
  • Product Description
  • Specifications
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections It is sold by 100 units High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
  • Environment
    • Product Certifications : CSA || GL || BV || DNV || LROS (Lloyds register of shipping) || UL
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || UL 508 || IEC 60947-5-4 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP20 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Contacts Usage : standard contacts
    • Terminals Description Iso N°1 : (13-14)NO
    • Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Operating Force : 2.3 N NO changing electrical state
    • Operating Travel : 2.6 mm NO changing electrical state) || 4.3 mm total travel)
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : without
    • [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Mechanical Durability : 10000000 cycles
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Device Composition : body || fixing collar
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
  • Specifications
    • Range Of Product : Harmony XB5
    • Contact Block Type : single
    • Product Or Component Type : complete body/contact assembly
    • Fixing Collar Material : plastic
    • Head Type : standard
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Contacts Type And Composition : 1 NO
    • Sale Per Indivisible Quantity : 100
    • Contact Operation : slow-break
    • Device Short Name : ZB5
