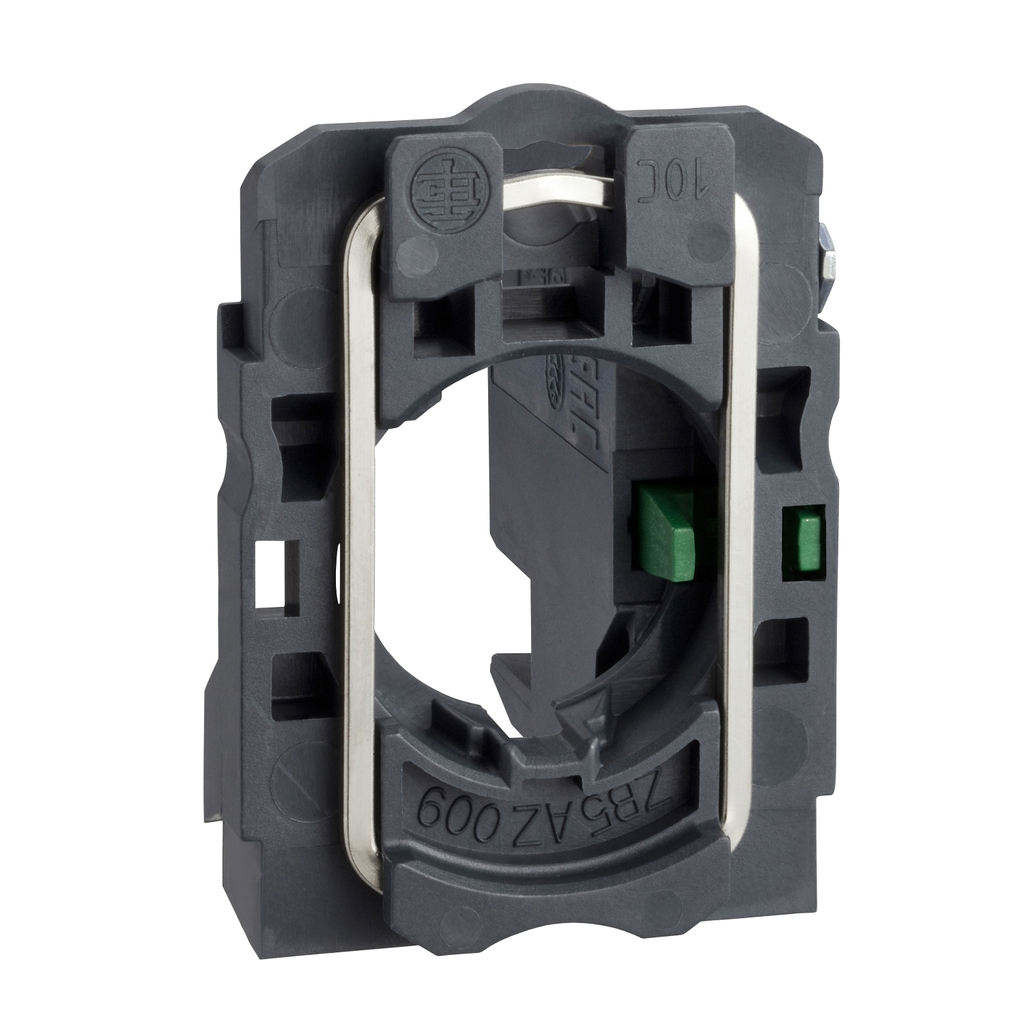

This Harmony ZB5AZ1014 is a single contact block with body/fixing collar, 1 NO plug-in connector. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.

• Environment
• Product Certifications : CSA || DNV || BV || GL || UL || LROS (Lloyds register of shipping)
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-1 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
• Ip Degree Of Protection : IP20 IEC 60529
• Ambient Air Temperature For Storage : -40-70 °C
• Protective Treatment : TH
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2303008EN
• Sustainable Offer Status : Green Premium product
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : "WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
• Reach Free Of Svhc : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : X
• Circularity Profile : ENVEOLI2303008EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Contacts Usage : standard contacts
• Terminals Description Iso N°1 : (13-14)NO
• Operating Force : 2.3 N NO changing electrical state
• Short-Circuit Protection : 4 A cartridge fuse gG IEC 60947-5-1
• Operating Travel : 2.6 mm NO changing electrical state) || 4.3 mm total travel)
• Contacts Material : silver alloy (Ag/Ni)
• Positive Opening : without
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Net Weight : 0.018 kg
• [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
• Cad Overall Height : 42 mm
• Electrical Durability : 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
• [Ie] Rated Operational Current : 3 A 240 V, AC-15, A300 IEC 60947-5-1 || 6 A 120 V, AC-15, A300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
• Mechanical Durability : 10000000 cycles
• Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
• Cad Overall Width : 30 mm
• Device Composition : body || fixing collar
• Cad Overall Depth : 32 mm
• Specifications
• Country of Origin : United States
• Width : 30 mm
• Height : 42 mm
• Weight : 0.018 kg
• Range Of Product : Harmony XB5
• Contact Block Type : single
• Product Or Component Type : complete body/contact assembly
• Fixing Collar Material : plastic
• Head Type : standard
• Connections - Terminals : plug-in connector
• Contacts Type And Composition : 1 NO
• Sale Per Indivisible Quantity : 1
• Contact Operation : slow-break
• Device Short Name : ZB5
