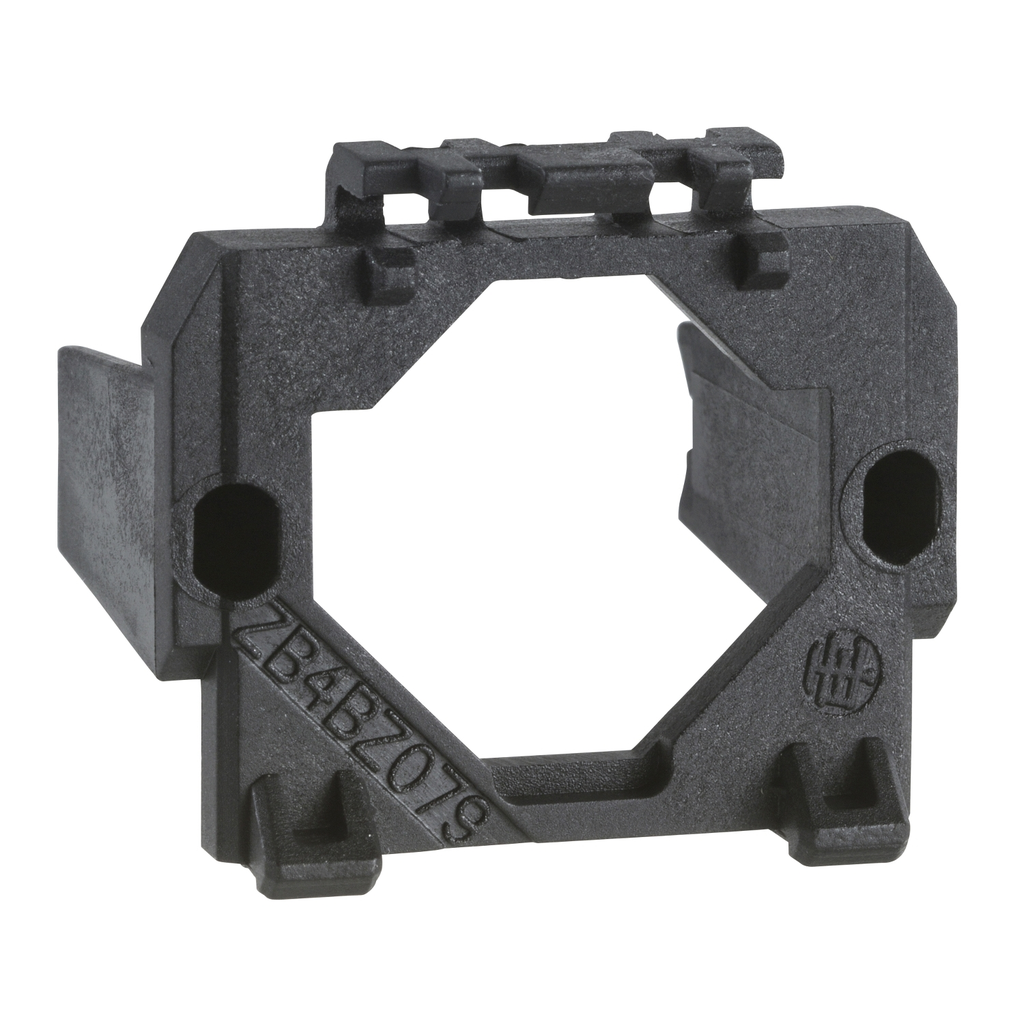

This Harmony XB4, body/fixing collar allows to connect together XB4 heads with printed circuit board. It is made of metal and is compatible with Harmony XB4. It has a metal bezel, this makes it Ideal for severe environments, especially applications requiring high impact and vibration resistance. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Customizable : 0, no
• Carbon Footprint Of The Distribution Phase A4 : 0.0005230842, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0050595492
• Carbon Footprint Of The Installation Phase A5 : 0.0008022776, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0 kg CO2 eq., 0.0283520759
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308035EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Average Percentage Of Recycled Metal Content : 16 %
• Average Percentage Of Recycled Plastic Content : 23 %
• Material : metal
• Package Weight Lbs : 3.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : body fixing collar
• Quantity Per Set : set of 10
• Range Of Product : Harmony XB4
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0 kg CO2 eq.
• Accessory Separate Part Category2 : mounting and fixing accessories
• Accessory Separate Part Destination2 : printed circuit board support
• Accessory Separate Part Type2 : body fixing collar
• Accessory Separate Part Designation2 : fixing collar
• Medium Desc : Body fixing collar, Harmony XB4, metal fixing collar pillar for printed circuit board
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2308035_V1-EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Global Commercial Status : Commercialised
• Accessory Separate Part Category3 : mounting and fixing accessories
• Accessory Separate Part Destination3 : printed circuit board support
• Accessory Separate Part Type3 : body fixing collar
• Accessory Separate Part Designation3 : fixing collar
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 16 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.034736987
• Circularity Profile : ENVEOLI2308035EN
• Environmental Disclosure : ENVPEP2308035_V1-EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308035_V1-EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : body fixing collar
• Range Of Product : Harmony XB4
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Batteries & Runtime Attributes
• Additional Information : must be used in conjunction with adaptor ZBZ010
