Single block for test light function, Harmony XB4, 12 and 24V AC DC, 24...120V AC DC

HARMONY XB4, SINGLE BLOCK FOR

SQDZBZG156 ZBZG156 3389118030107
42.02 / EA
http://schema.org/OutOfStock
Mayer-DDS-Single block for test light function, Harmony XB4, 12 and 24V AC DC, 24...120V AC DC-2
  • Country of Origin: France
  • Net Weight: 0.01 kg
  • Warranty Length: 18 mth
  • Weight: 0.01 kg

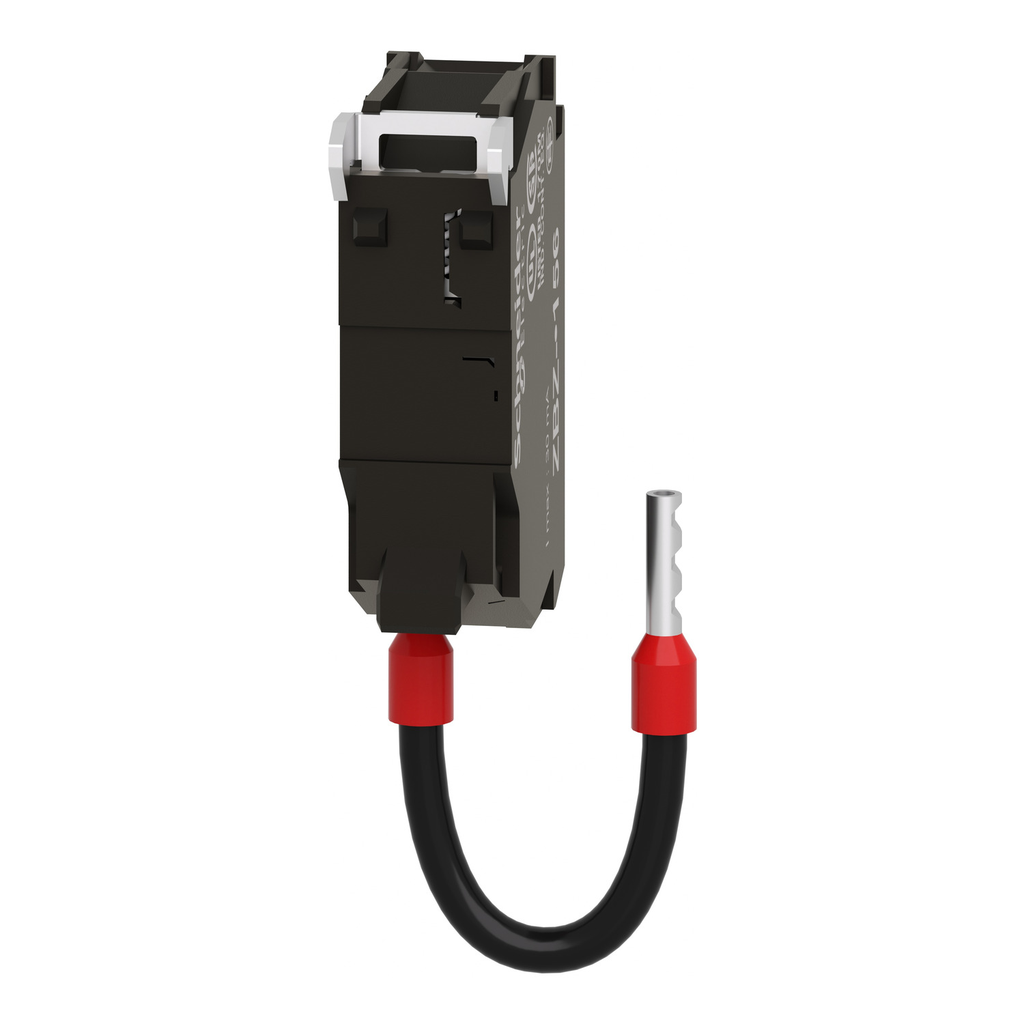

This Harmony ZB, single light block for test light function has 1 connecting wire. It is supplied with 12V AC/DC. It is compatible with Harmony XB4 and XB5. This single light block allows fast and easy replacement and configuration of your signaling units for light testing purpose. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony ZB, single light block for test light function has 1 connecting wire. It is supplied with 12V AC/DC. It is compatible with Harmony XB4 and XB5. This single light block allows fast and easy replacement and configuration of your signaling units for light testing purpose. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : DNV || UL Listed || LROS (Lloyds register of shipping) || BV || CSA
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : UL 508 || IEC 60947-5-5 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 4520
    • Shock Resistance : 30 gn 18 ms IEC 60068-2-27 || 50 gn 11 ms IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2302007EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2302007EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.1164976726
  • Complementary
    • Material : plastic
    • Net Weight : 0.01 kg
    • Electrical Shock Protection Class : class I Harmony XB4 IEC 60536 || class II Harmony XB5 IEC 60536
  • Specifications
    • Country of Origin : France
    • Weight : 0.01 kg
    • Range Of Product : Harmony XB4 || Harmony XB5
    • Product Or Component Type : block for test light
    • Light Block Type : single block for test light function
    • Electrical Connection : 1 wire
    • Product Compatibility : integral LED || BA 9s
    • [Us] Rated Supply Voltage : 12 V AC/DC || 24 V AC/DC || 24...120 V AC/DC
