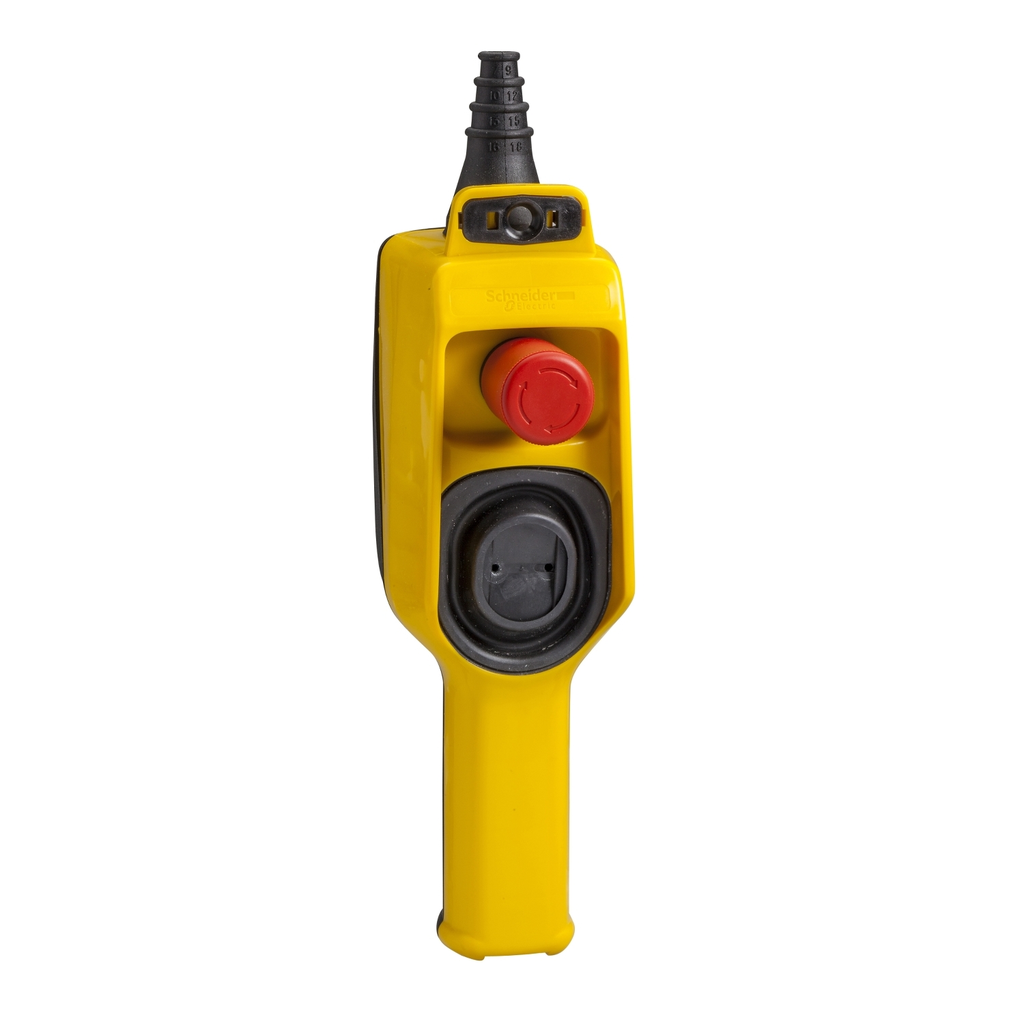

This Harmony XACD21A0101 is a pendant station 1 rocker lever. This yellow control station is double insulated. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

• Features
• Highly robust pendant control station
• Double insulated polypropylene casing
• Screw clamp terminal connections
• Simple and intuitive
• Designed for mechanical handling
• Very comfortable for the operator to use
• Mechanical durability of 3 million cycles
• IP65 and IK08 degree of protection
• Wide range of operating temperature from -25°C to 70°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Control Station Color : yellow
• Conformance Attributes
• Standards : IEC 60947-5-1, IEC 60204-32, UL 508, CSA C22.2 No 14
• Complementary Attributes
• Rated Operational Power In W : 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
• Maximum Resistance Across Terminals : 25 MOhm
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Contact Code Designation : A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
• Control Button Type : first direction button 1 NO raise, slow, second direction button 1 NO lower, slow
• Terminal Identifier : (13-14)NO, (11-12)NC, (13-14)NO, (11-12)NC
• Terminals Description ISO N 1 : (13-14)NO, (13-14)NO
• Connections Terminals : screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
• Connections Terminals3 : screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
• Local Data Status : Publishable
• Local Publishable Date : 2025-10-15
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Cable Entry : rubber sleeve with stepped entry 7-18 mm
• Contact Operation : slow-break
• Control Station Application : control of single speed hoist motor
• Control Station Color : yellow
• Control Station Composition : 1 2-directional button
• Control Station Type : double insulated
• Control Type : intuitive
• Device Short Name : XACD
• Electrical Circuit Type : control circuit
• Enclosure Material : polypropylene
• Enclosure Type : complete ready for use
• Mechanical Durability : 3000000 cycles
• Mechanical Interlocking : with mechanical interlocking
• Motor Starter Type : reversing
• Operating Force : 16-16 N
• Overvoltage Category : class II conforming to IEC 61140
• Package Weight Lbs : 414.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : pendant control station
• Protective Treatment : TH
• Range Of Product : Harmony XAC
• Returnability : Yes
• Shock Resistance : 70 gn IEC 60068-2-27
• Short Circuit Protection : 10 A fuse protection cartridge gG
• Sustainable Packaging : Yes
• Vibration Resistance : 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ithe Conventional Enclosed Thermal Current2 : 10 A
• Ui Rated Insulation Voltage2 : 600 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage2 : 6 kV IEC 60947-1
• Medium Desc : Pendant control station, Harmony XAC, plastic, yellow, 1 2 directional push button
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP0709005EN
• Global Commercial Status : End of commerc. announced
• Ithe Conventional Enclosed Thermal Current5 : 10 A
• Ui Rated Insulation Voltage5 : 600 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage5 : 6 kV IEC 60947-1
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Environmental Disclosure : ENVPEP0709005EN
• IP Degree Of Protection : IP65 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : ZB2BE101 for each direction
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP0709005EN
• General Attributes
• Product Or Component Type : pendant control station
• Range Of Product : Harmony XAC
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
