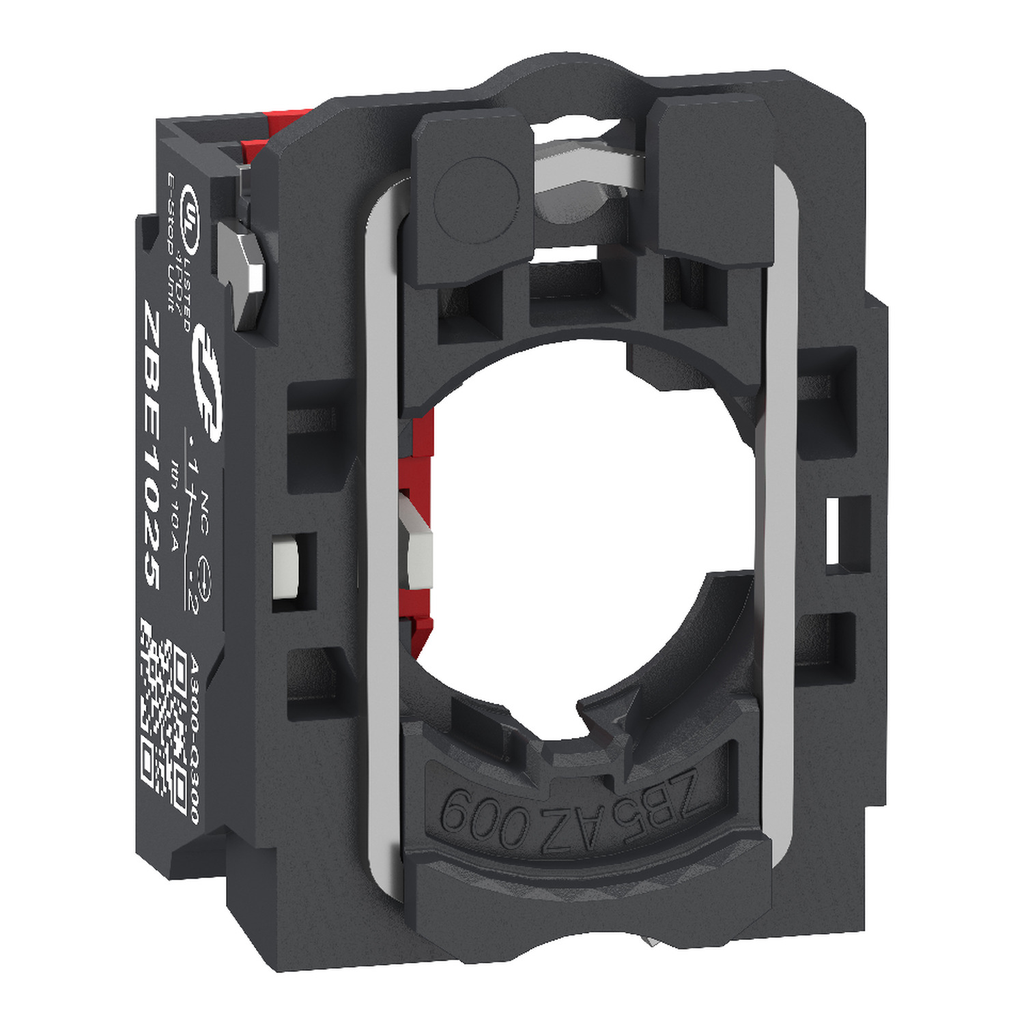

This Harmony XB5, single contact block is pre-assembled on a body/collar fixing unit. It features 1 normally closed (NC) contact. It is compatible with Harmony XB5 units. It consists of a single contact block pre-assembled on a fixing collar unit. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This plastic product weighs 17g. It is easily installed with push-in terminal connections. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications "It meets JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, UL 508 and JIS C8201-1 standards." "It is installed into a Ø 22mm panel cutout." Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes. "The modular range of Ø 22mm metal control and signaling units combines simplicity of installation, modern standard and flush mounted design."

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : EAC || IECEE CB Scheme || CCC || UL || CSA
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : IEC 60947-1 || IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 60947-1 || UL 60947-5-1 || UL 60947-5-5 || UL 1059 || UL 486E || CSA C22.2 No 60947-1 || CSA C22.2 No 60947-5-1 || CSA C22.2 No 158 || CSA C22.2 No 65 || IACS E10
• Shock Resistance : 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 || 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP20 IEC 60529
• Ambient Air Temperature For Storage : -40-70 °C
• Protective Treatment : TH
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2303008EN
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI2303008EN
• Take-Back : No
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.2332554619
• Complementary
• Contacts Usage : standard contacts
• Terminals Description Iso N°1 : (11-12)NC
• Operating Force : 2.25 N NC changing electrical state
• Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Operating Travel : 1.217 mm NC changing electrical state) || 4.3 mm total travel)
• Contacts Material : silver alloy (Ag/Ni)
• Positive Opening : with IEC 60947-5-1 appendix K
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Net Weight : 0.011 kg
• [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
• Cad Overall Height : 27.6 mm
• Device Presentation : basic sub-assemblies
• [Ui] Rated Insulation Voltage : 300 V 3)IEC 60947-1
• [Ie] Rated Operational Current : 6 A 120 V, AC-15, A300 IEC 60947-5-1 || 3 A 240 V, AC-15, A300 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
• Mechanical Durability : 10000000 cycles
• Cad Overall Width : 46.2 mm
• Device Composition : fixing collar || body
• Cad Overall Depth : 30 mm
• Specifications
• Country of Origin : France
• Width : 46.2 mm
• Height : 27.6 mm
• Weight : 0.011 kg
• Range Of Product : Harmony XB5
• Contact Block Type : single
• Product Or Component Type : complete body/contact assembly
• Fixing Collar Material : plastic
• Head Type : standard
• Connections - Terminals : push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1 || push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
• Contacts Type And Composition : 1 NC
• Sale Per Indivisible Quantity : 1
• Contact Operation : slow-break
• Device Short Name : ZB5
