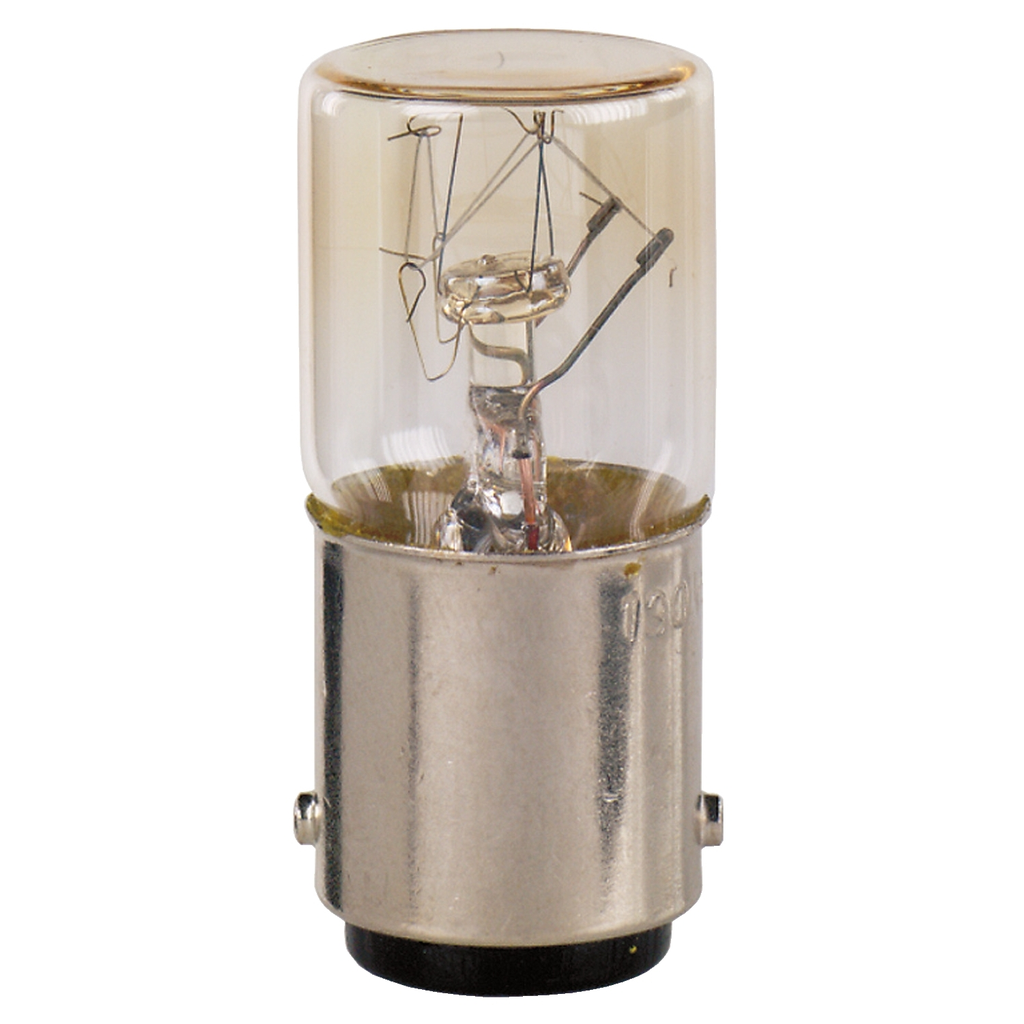

This spare Harmony incandescent bulb has a BA9s base fitting and a power dissipation of 1.2W. It is an incandescent clear bulb, a lighting accessory for Harmony illuminated pushbuttons. It is supplied with 6V AC/DC. Its simple and modular design allows easy installation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. The bulb weighs 2gr and has a diameter of 11mm. It is compatible with Harmony XB4, XB5, and XB7 illuminated pushbuttons. It is sold in lots of 10. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Signalling Color : clear
• Complementary Attributes
• US Rated Supply Voltage : 6 V AC/DC
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 0.000479883, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0049979532
• Carbon Footprint Of The Installation Phase A5 : 0.0004410526, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0 kg CO2 eq., 0.0225780702
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 3 kg CO2 eq., 3.1159549037
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• HTML Description : Clear incandescent bulb with BA9s base - 6 V / 1.2 W
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Bulb Base : BA 9s
• Package Weight Lbs : 0.900 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : incandescent bulb
• Returnability : Yes
• Signalling Color : clear
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP1808008_V2-EN
• Pep Verification Date : 2023-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Product Manager : SU-JIN NG
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Carbon Footprint : 3.1444518628
• Environmental Disclosure : ENVPEP1808008_V2-EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1808008_V2-EN
• Pep Verification Date : 2023-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : incandescent bulb
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
