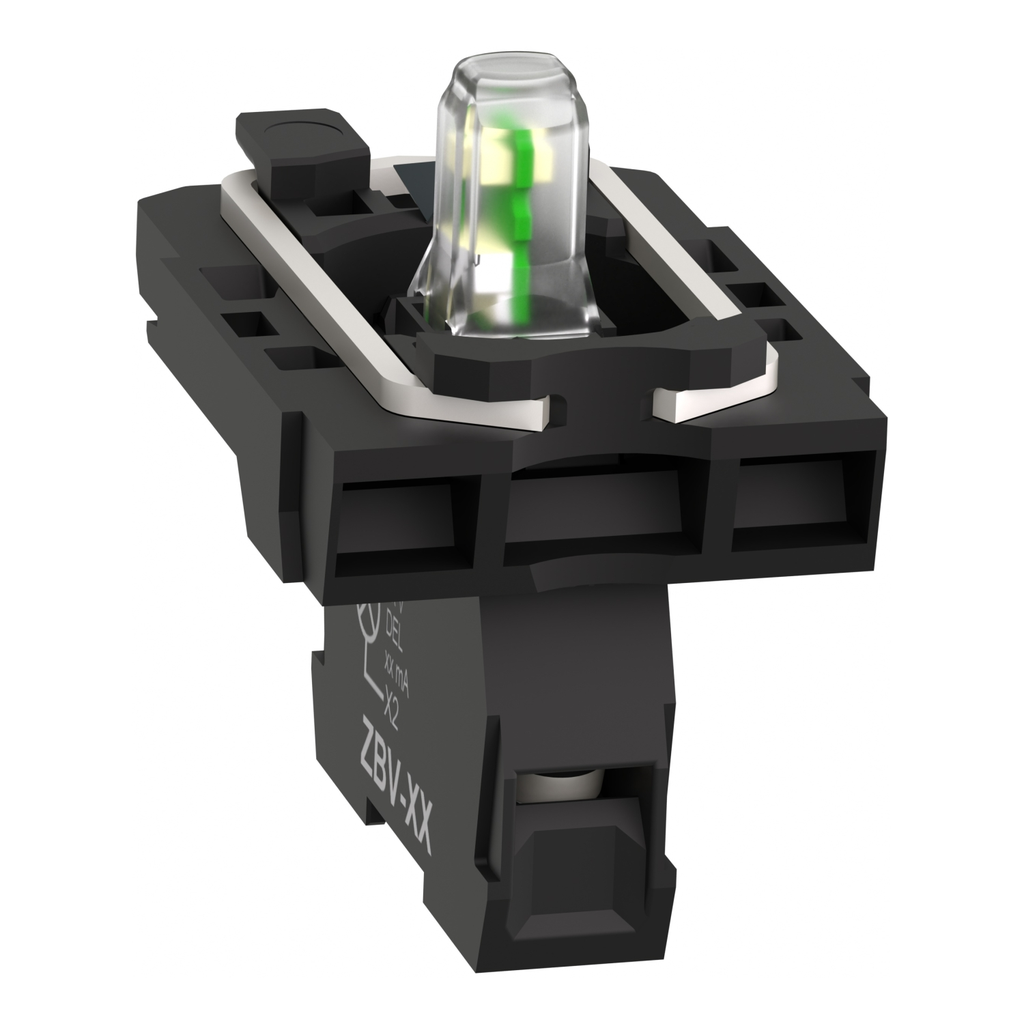

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 32 mm
• Cad Overall Height : 42 mm
• Cad Overall Width : 30 mm
• Light Source Color : white
• Conformance Attributes
• Product Certifications : CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
• Standards : IEC 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-1, JIS C8201-5-1, UL 508, JIS C8201-1
• Complementary Attributes
• Us Rated Supply Voltage : 110...120 V, 110...120 V AC 50/60 Hz
• Ui Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : 0, no
• Light Source : universal LED, universal LED
• Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6
• Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Signalling Type : steady, steady
• Terminals Description Iso N 1 : (X1-X2)PL, (X1-X2)PL
• Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
• Carbon Footprint Of The Distribution Phase A4 : 0.0026153333, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0346961111
• Carbon Footprint Of The Installation Phase A5 : 0.0077716667, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.1526
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 22 kg CO2 eq., 22.4558685446
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• Manufacturing Carbon Footprint : 0.1526
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Plastic Content : 16 %
• Bulb Base : integral LED
• Compatibility Code : ZB5
• Current Consumption : 14 mA
• Device Short Name : ZB5
• Electrical Shock Protection Class : class II conforming to IEC 60536
• Electromagnetic Emission : class B IEC 55011
• Fixing Collar Material : plastic
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : complete body/light block assembly
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
• Resistance To Fast Transients : 2 kV IEC 61000-4-4
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Service Life : 100000 h at rated voltage and 25 °C
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Total Lifecycle Carbon Footprint : 23 kg CO2 eq.
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Light Source Color : white
• Warranty In Months : 18
• Supply Voltage 20 Supply Voltage : 110...120 V
• Connections Terminals 8 Connections Terminals : screw clamp terminals
• Pep Code : ENVPEP2308027_V1-EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Pilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton&nbsp;power consumption is 0.432W with 71% active mode for 10 years, and it product&nbsp;complies with IEC 60947-1 standards..
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Product Weight In G2 : 20
• Reference Lifetime In Y2 : 10
• Energy Consumption On Product Lifetime In Kwh : 44.1504
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Recyclability Potential In 2 : 22
• Offer Owner Code : 190786
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 2 : 0.1526
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D 2 : -0.433
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2 : 0.2049
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 2 : 0.0867
• Environment Attributes Main
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 22.6535516557
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2308027EN
• Environmental Disclosure : ENVPEP2308027_V1-EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308027_V1-EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : complete body/light block assembly
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC000204
• ETIM 9 : EC000204
• Surge Protection And Filtering Attributes
• Surge Withstand : 1 kV IEC 61000-4-5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : basic sub-assemblies
